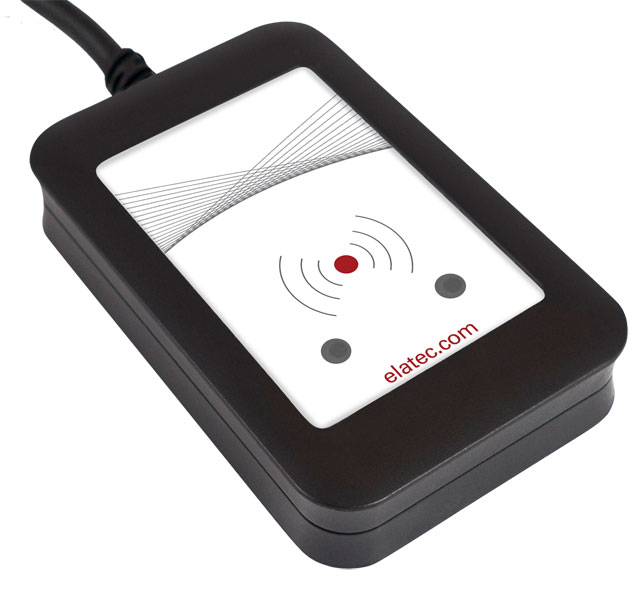

Elatec T4BT-FR2BEL6-PI RFID Reader

Introducing the TWN4 MultiTech 2 RFID Reader/Writer, a versatile solution for reading and writing various LF/HF/NFC transponders. Compatible with major standards and suppliers, this compact device enhances convenience by supporting mobile communications through NFC-enabled Android devices. With integrated powerful SDK capabilities, onboard flash storage, and dual SAM sockets, it is designed for seamless integration in access control, time attendance, and industrial applications, ensuring you have the flexibility and security needed for your projects.

• Supports LF and HF frequencies (125 kHz, 134.2 kHz, 13.56 MHz)
• SDK for custom app development that runs directly on the reader
• Field-upgradable firmware for improved performance
• Integrated NFC for mobile device compatibility
• Quick, centralized (re)configuration via network

• Frequency: 125 kHz/134.2 kHz (LF) / 13.56 MHz (HF)
• Antenna: Integrated
• Housing Material: ABS UL94-V0, available in black or white
• Dimensions:
  • Desktop Reader: 88 mm x 56 mm x 18 mm
  • OEM Board: 76 mm x 49 mm x 9 mm
• Power Supply: 4.3 V-5.5 V via USB; additional options available
• Operating Temperature: -25 °C to +70 °C
• Read/Write Distance: Up to 100 mm
• Weight:
  • PCB: approx. 12 g
  • Desktop: approx. 117 g
• Operating Systems: Supports Windows, Linux, Android, iOS, MAC OS X
• Certifications: CE/RED, FCC, IC, REACH, RoHS-III compliant
