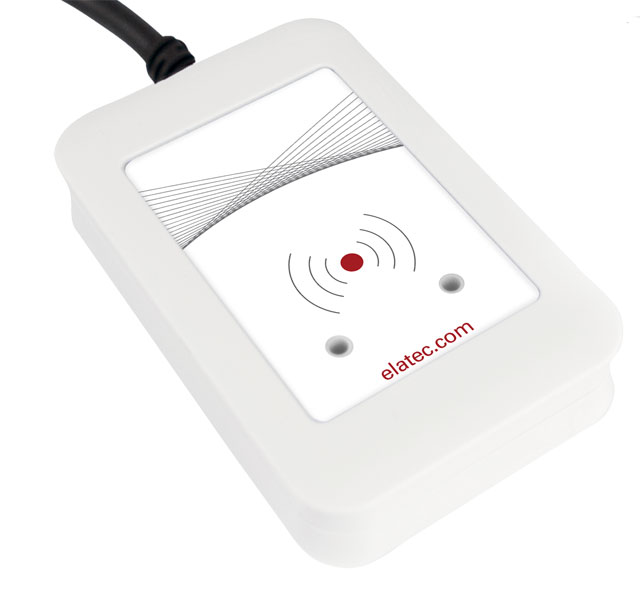

Elatec T4BT-FB2WEL6-P RFID Reader

The ELATEC TWN4 MultiTech 2 is a versatile programmable RFID reader/writer designed for robust performance across LF, HF, and NFC frequencies. With the capability to read and write various tags and labels, including those compliant with ISO standards, it supports major transponders from reputable suppliers. Integrated with RFID and NFC functionalities, this reader can effortlessly interface with mobile devices running Android 4.3 or newer. Ideal for diverse applications such as access control, fitness tracking, and industrial management, the TWN4 MultiTech 2 stands out for its adaptability and user-friendly operations, making it an essential tool for anyone in need of reliable RFID solutions.
Key features:

• Comprehensive support for 125 kHz, 134.2 kHz, and 13.56 MHz tags.
• Powerful SDK for custom app development directly on the reader.
• Firmware updates possible in the field.
• Onboard storage of 18 kB for user-accessible data.
• Two secure access module sockets for enhanced security.
• Flexible configurations over network and wireless interfaces.

Specifications:

• Frequency: 125 kHz / 134.2 kHz (LF) / 13.56 MHz (HF)
• Housing: ABS UL94-V0, color: black or white
• Dimensions: Desktop - 88 mm x 56 mm x 18 mm, OEM Board - 76 mm x 49 mm x 9 mm
• Power Supply: 4.3 V-5.5 V via USB
• Operating Temperature: -25 °C to +70 °C
• Humidity Range: 5% to 95% non-condensing
• Read/Write Distance: Up to 100 mm, depending on environment
• OS Support: Windows, Linux, Android, iOS, MAC OS X
• Certification: CE, FCC, RoHS compliant
