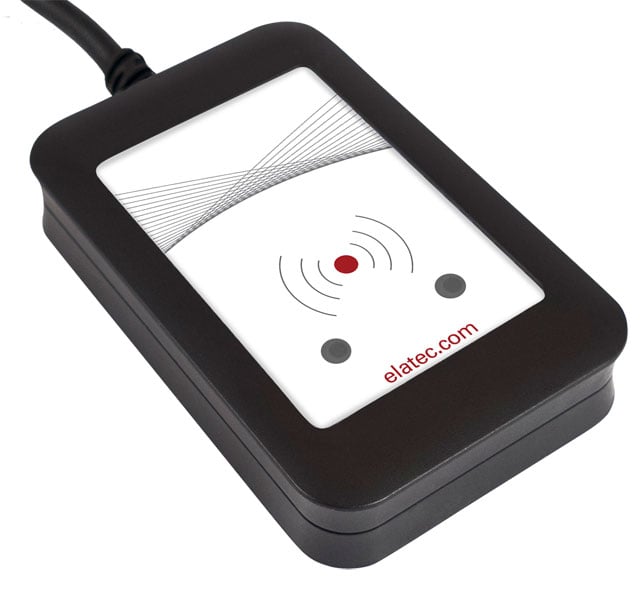

Elatec T4BT-FB2BEL7-PIER RFID Reader
Part Number:
T4BT-FB2BEL7-PIER
Model:
TWN4 MultiTech 2 -PI with BLE and HID iClass
Full specifications (PDF)
Elatec TWN4 MultiTech For LF/HF/NFC RFID Reader Model Overview
The TWN4 MIFARE NFC Reader/Writer is a versatile contactless solution that efficiently reads and writes to a wide range of 125kHz/134.2kHz and 13.56MHz tags and labels. Backed by extensive compatibility, it supports major transponders from suppliers such as ATMEL, EM, ST, and MIFARE NXP. This new generation device enhances the renowned TWN3 family, providing reliable performance in both OEM PCB and Desktop configurations, and is perfect for diverse applications where seamless communication is crucial.
Key Features
Specifications
Key Features
- Powerful SDK: For developing applications executed directly on the reader
- Infield Upgradeable: Ensures your device stays current
- Direct chip-commands support: For efficient operations
- Low Power Consumption: Features a power down mode
- Onboard SAM sockets: Two Secure Access Module sockets available
- Multiple interfaces: Including USB, RS232, I²C, SPI, and more
Specifications
- Frequency: 125kHz, 134.2kHz (LF) / 13.56MHz (HF)
- Material: ABS UL94-V0, black or white
- Dimensions:
- Desktop Reader: 88mm x 56mm x 18mm
- OEM Board: 76mm x 49mm x 14mm
- Power Supply: 4.3V..5.5V via USB or RS232
- Current Consumption:
- RF field off: 20mA
- Cyclic Operation: 2mA
- Power down Mode: 10μA
- RF field on: 120mA typical
- Operating Temperature Range: -25°C to +80°C
- Read/Write Distance: Up to 100mm (depending on transponder)
- Supported Interfaces: USB, Wiegand, CAN
- OS Support: Windows and Linux
Brand
Elatec
Model
TWN4 MultiTech 2 -PI with BLE and HID iClass
