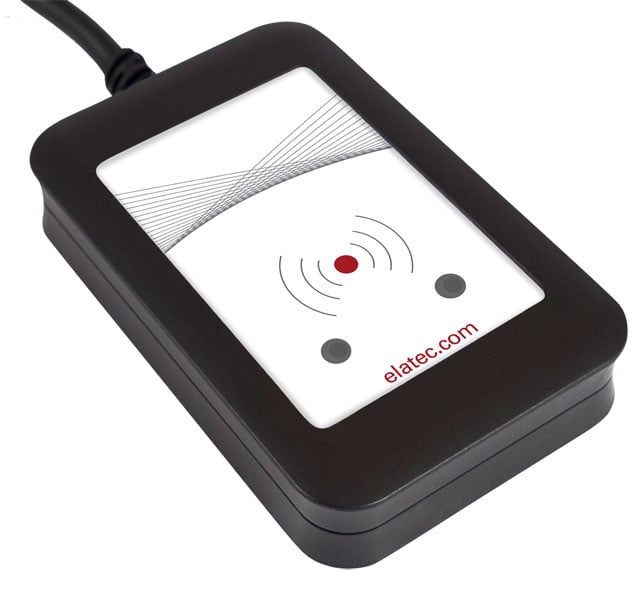

Elatec T4BT-FB2BEL6-PI RFID Reader

Discover the power of versatility with the ELATEC TWN4 MultiTech 2, a state-of-the-art RFID reader/writer that supports a wide range of transponders including LF, HF, and NFC technologies. Designed for integration in various applications such as access control, vending machines, and ticketing systems, this device ensures seamless communication with Android mobile phones. Its robust firmware, combined with onboard flash storage and customizable read/write capabilities, makes it ideal for a variety of industry needs, ensuring easy integration and flexible configuration.

• Integrated RFID (LF & HF) and NFC for maximum compatibility
• Powerful SDK enables direct app execution on the reader
• Firmware update in the field for ongoing enhancements
• Onboard 18 kB flash storage for user-accessible data
• Two onboard SAM sockets for enhanced security
• Supports quick (re)configuration over network and wireless interface

• Frequency: 125 kHz/134.2 kHz (LF) / 13.56 MHz (HF)
• Antenna: Integrated
• Housing: ABS UL94-V0, black/white
• Dimensions (LxWxH):
  • Desktop: 88 mm x 56 mm x 18 mm
  • OEM Board: 76 mm x 49 mm x 9 mm
• Power Supply: 4.3 V-5.5 V via USB
• Operating Temperature: -25 °C to +70 °C
• Read/Write Distance: Up to 100 mm (depending on environment)
• OS Support: Windows, Linux, Android, iOS, MAC OS X
• Weight:
  • PCB: approx. 12 g
  • Desktop: approx. 117 g
• Certification: CE, FCC, REACH, RoHS-III compliant
