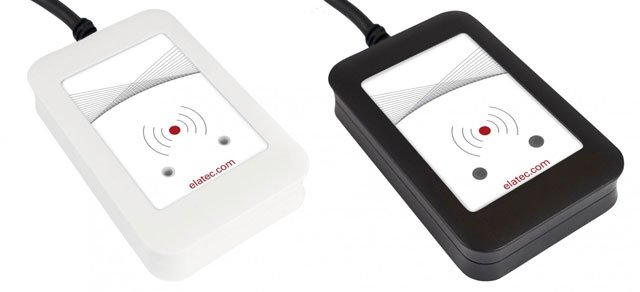

Elatec T43O-F7C0-PI RFID Reader

The TWN4 MultiTech 3 BLE is a versatile RFID reader/writer that deftly combines LF, HF, NFC, and Bluetooth Low Energy capabilities into a compact design. Ideal for applications that require a blend of size and performance, such as healthcare, POS integration, and driver identification, this device offers exceptional read/write efficiency. With support for a wide range of frequencies and transponders, the TWN4 MultiTech 3 BLE ensures compatibility with global standards, making it the perfect choice for diverse industries needing robust RFID solutions.

• Supports various RFID frequencies: 125 kHz, 134.2 kHz, and 13.56 MHz.
• Integrated Bluetooth Low Energy: for seamless connectivity.
• Compact design: dimensions of only 50 mm x 35 mm x 7 mm.
• Powerful SDK: enables custom app development directly on the reader.
• Onboard flash storage: 18 kB for non-volatile data storage.
• Multiple host interfaces: USB, serial (TTL), and I²C.
• Field-upgradable firmware: to keep your device updated with the latest features.

• Frequency: 125 kHz/134.2 kHz (LF) / 13.56 MHz (HF)/2402 MHz - 2480 MHz (Bluetooth)
• Power Supply: 4.3 V - 5.5 V via USB; 3.3 V +/- 5% via connector CNB
• Current Consumption: 120 mA typical +16 mA (Bluetooth) / Sleep: 500 μA
• Operating Temperature: -25 °C to +80 °C
• Read/Write Distance: Up to 100 mm / 4 inches (LF and HF)
• Weight: Approx. 9 g
• Supported Transponders: ISO14443A, ISO14443B, ISO15693, NFC Forum Tags
• Interfaces: USB, RS232, TTL, I²C, SPI, CAN
• Operating Systems: Windows, Linux, Android, iOS
• Certifications: RoHS-II, CE/RED, FCC, IC, ACA
