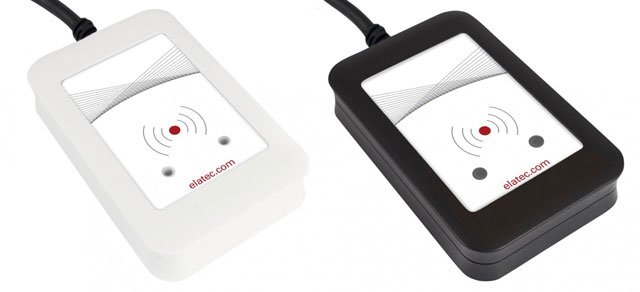

Elatec T43O-F7C0-P RFID Reader

The TWN4 MultiTech 3 BLE is a compact yet powerful RFID reader/writer that integrates LF (125 kHz, 134.2 kHz), HF (13.56 MHz), NFC, and Bluetooth Low Energy capabilities. Ideal for a multitude of applications including healthcare, driver identification, and POS integration, this reader offers excellent performance in a small form factor. Equipped with multiple host interfaces like USB, serial (TTL), and I²C, it enables easy integration into your existing systems while supporting a vast array of worldwide tags and labels. With features like an onboard SDK and firmware updates, the TWN4 MultiTech 3 BLE ensures longevity and adaptability for future needs.

Key Features

• Supports multiple frequencies: 125 kHz, 134.2 kHz (LF), 13.56 MHz (HF), and Bluetooth 4.1.
• Powerful SDK: For creating custom applications directly on the reader.
• Field updateable firmware: Ensures up-to-date functionality.
• 18 kB onboard flash storage: For non-volatile user data.
• Secure Access Module: For enhanced security.
• Quick centralized configuration: Over the network with TWN4 CONFIG Card.

Specifications

• Frequency: 125 kHz, 2402 MHz - 2480 MHz (Bluetooth)
• Dimensions: 50 mm x 35 mm x 7 mm (L x W x H)
• Power Supply: 4.3 V - 5.5 V via USB
• Operating Temperature: -25 °C to +80 °C
• Humidity: 5% to 95% non-condensing
• Communication Interfaces: USB, RS232, TTL, I²C, SPI
• Weight: Approximately 9 g
• Supported Transponders: ISO14443A/B, ISO15693, ISO18092, 125 kHz, 134.2 kHz
• Certifications: RoHS-II, CE/RED, FCC
