Edgewater Networks 4603-100-0024 Products

Part Number: 4603-100-0024
Model:
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
PoE (RJ-45) Port
No
USB
Yes
Management Port
Yes
Number of Network (RJ-45) Ports
5

Product Description:

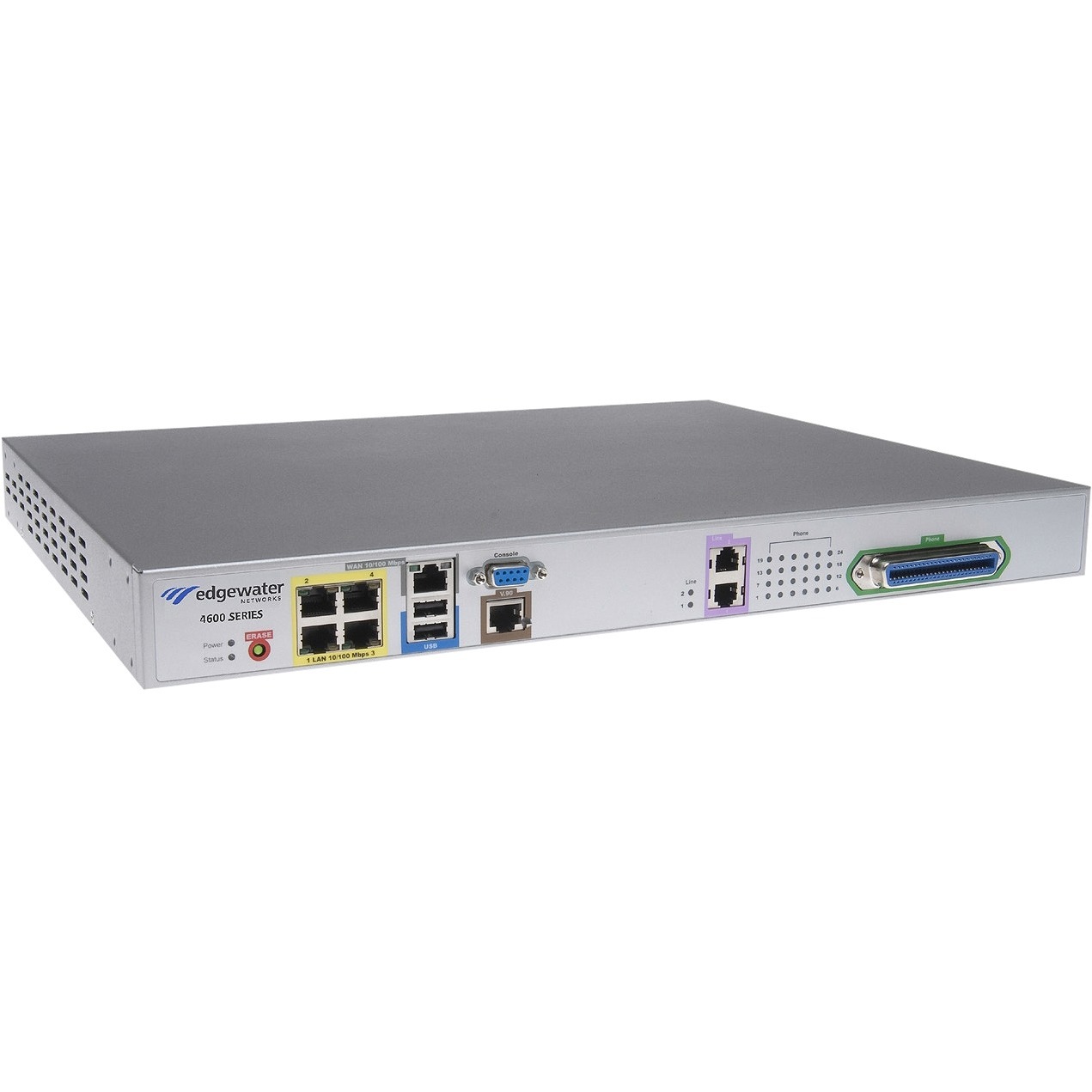

  Edgewater EdgeMarc 4603 Enterprise Session Border Controller - 5 x RJ-45 - 24 x FXS - 2 x FXO - USB - Management Port - Fast Ethernet - Desktop
Explore all Edgewater Networks Parts Accessories
Add to Quote
Edgewater Networks 4603-100-0024 Products
Edgewater Networks 4603-100-0024 Products

Edgewater Networks Parts Accessory Model Overview

Products and parts from Edgewater-Networks.
Edgewater Networks 4603-100-0024 Products Overview

Introduction

The EdgeMarc 4603 combines a 24 FXS port Integrated Access Device (IAD) and multiple voice and data features into a single, easy-to-use Enterprise Session Border Controller.

Service providers and enterprise organizations use the EdgeMarc 4603 to connect IP SIP trunking services. The EdgeMarc 4603 automatically manipulates SIP messages and features advanced inspection capabilities that enable it to be deployed in many different environments with a wide range of PBXs and SIP trunking services. It is the ideal platform for service providers and enterprise organizations for use in SIP trunking, hosted VoIP and other converged services.

All-in-One

One box for 24 FXS ports, 2 FXO ports, firewall, VoIPALG - with a single manage- ment interface.

Survivability

VoIP calls can be re-routed locally or over the PSTN during WAN link failures - using one device.

Quality of Service

Packet prioritization and data traffic shaping for VoIP calls.

Security

VoIP-aware stateful packet inspection firewall, encryption services and more.

Simplified Troubleshooting

MOS statistics, call monitoring, LAN/WAN problem isolation from the router, Integrated VoIPTest CallAgent, TCPdump, PING, traceroute and more.

Interfaces/Ports
PoE (RJ-45) Port:
No
USB:
Yes
Management Port:
Yes
Number of Network (RJ-45) Ports:
5
Number of FXS (RJ-11) Ports:
24
Number of FXO (RJ-11) Ports:
2
I/O Expansions
SIM Card Supported:
No
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Standard:
10/100Base-TX
Wireless Specifications
Wireless LAN:
No
Power Description
Redundant Power Supply Supported:
No
Physical Characteristics
Form Factor:
Desktop
Height:
1.8"
Width:
9.3"
Depth:
6.5"
Weight (Approximate):
2 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43222605
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Edgewater Networks 4603-100-0024 Products is also known as EWN-4603-100-0024
