Protection Type:
- Transient
- AC Noise
- Brownout
- Sag
- AC Surge
- Overload
- Over Voltage

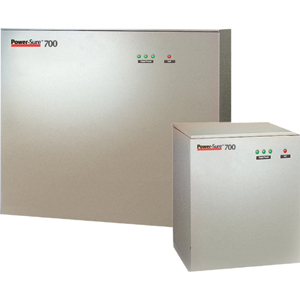

Eaton TBL-075K-6 Products
Part Number:
TBL-075K-6
Model:
Parts
Technical Information
Power Description
Input Voltage:
208 V AC
Output Voltage:
- 120 V AC
- 208 V AC
Maximum Frequency:
60 Hz
Physical Characteristics
Form Factor:
Tower
Height:
44.1"
Width:
44.9"
Depth:
29"
Weight (Approximate):
1100.10 lb
Miscellaneous
Additional Information:
- Power Provided: 75000 VA
- Input voltage range: +10% to -20%
- Output voltage range: ±3% Typical
- Efficiency: 97% Typical, 95% minimum
- Load power factor: 0.6 leading to 0.6 lagging
- Common-mode noise attenuation: 140 dB
- Normal-mode noise attenuation: -3 dB @ 1000 HZ, -40dB per decade
- Total harmonic distortion: Less than 1% added
- Correction time: 1 Cycle typical, 1.5 Cycle maximum
- Overload rating: 200% for 10 seconds, 1000% for 1 cycle
- Audible noise: Less than 50dBA @1 meter (depending on size)
Certifications & Standards:
- UL 1012
- CSA
- FCC Class A certified
- ANSI C62.41
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0743172022646
UPC:
743172022646
EAN:
0743172022646
UNSPSC:
39121020
