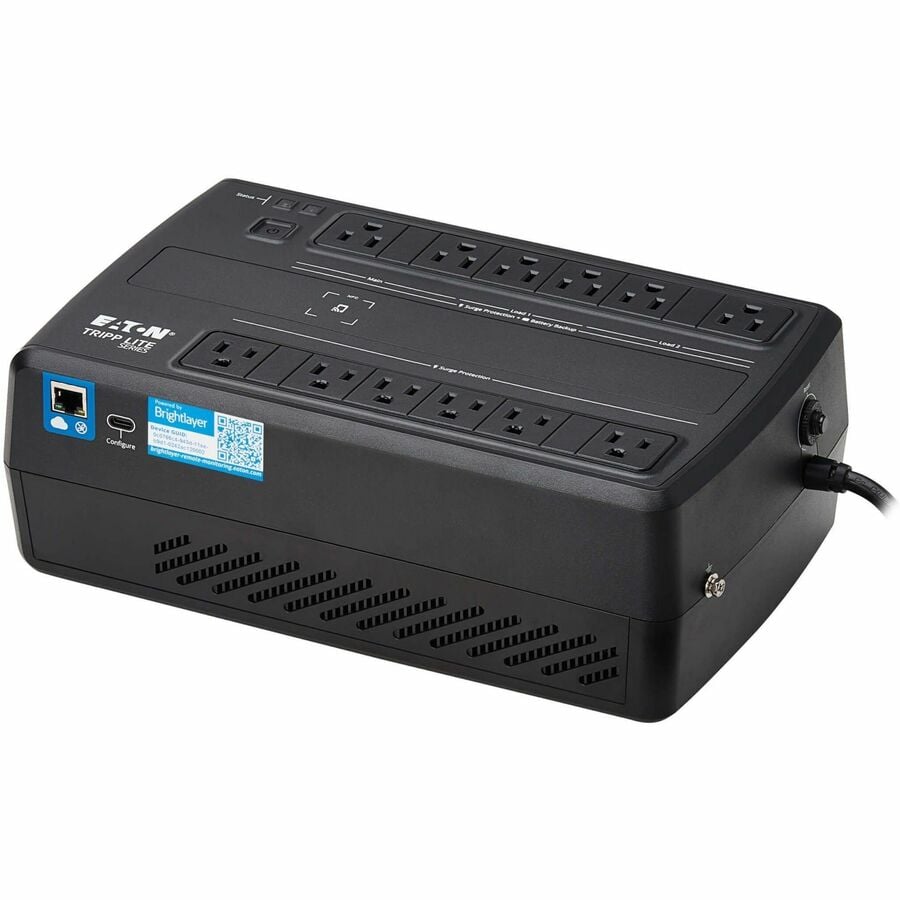

Eaton AVR750UNC Power Device

Part Number: AVR750UNC
Model: Parts
Add to My Shopping List Add to Compare
$270.62
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
AVR
Yes
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
12 x NEMA 5-15R

Product Description:

  Power Device, Eaton, Eaton Tripp Lite Series 750VA 450W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring, 12 NEMA 5-15R Outlets (6 Surge + 6 Surge and Battery Backup), 5-15P Plug, Desktop, Black, 3-year limited warranty
Explore all Eaton Parts Products
Add to Quote
Eaton AVR750UNC Power Device
Eaton AVR750UNC Power Device
Eaton AVR750UNC Power Device Eaton AVR750UNC Power Device
Technical Information
AVR:
Yes
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
12 x NEMA 5-15R
Number of Battery & Surge Outlets:
6
Number of Surge-only Outlets:
6
Overload Protection:
Yes
Cord Length:
5 ft
Transfer Time:
6 ms
EMI/RFI Noise Filter:
Yes
Phase:
Single Phase
Energy Saving:
Green Energy-Saving
Application/Usage:
  • Equipment
  • Digital Signage
  • Home/Office
  • Network
  • Computer
  • Router
  • ATM
  • Security System
  • Desktop Computer
  • Computer Peripheral
  • Audio/Video Equipment
  • Tablet
  • Smartphone
Surge Suppression:
Yes
Features:
  • Audible Alarm
  • Cold Start Function
Power Description
Load Capacity (VA):
750 VA
Load Capacity (Watt):
450 W
Input Voltage:
120 V AC
Input Voltage Range:
89 V AC - 145 V AC
Input Current:
20 A
Output Voltage:
120 V AC
Input Frequency:
  • 50 Hz
  • 60 Hz
Output Frequency:
  • 50 Hz
  • 60 Hz
Waveform Type:
Pulse-width Modulated Sine Wave
Surge Energy Rating:
316 J
Circuit Breaker:
Yes
Output Power Factor:
0.63
Display & Graphics
Display:
LED
Management
Network Management:
Network Card
Alarm:
  • Low Battery
  • Overload
  • Battery Mode
  • Replace Battery
  • Fault
Controls/Indicators
Status Indicators:

LED Indicators:

  • Low Battery
  • Fault Condition
  • Line/battery Mode Status
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Battery Information
DC System Voltage:
12 V DC
Battery Characteristics:
Valve-regulated
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
3 Minute
Backup/Run Time (Half Load):
11 Minute
Typical Battery Recharge Time:
8 Hour
Replaceable Battery:
Yes
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
104°F (40°C)
Storage Temperature:
5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:
10000 ft
Thermal Dissipation:
12.02 W
Physical Characteristics
Height:
4.13"
Width:
7.48"
Depth:
12.01"
Form Factor:
Surface/Desktop/Tower/Wall Mountable
Weight (Approximate):
15.84 lb
Miscellaneous
Package Contents:
  • AVR750UNC 750VA Surface/Desktop/Tower/Wall Mountable UPS
  • Quick Start Guide
Certifications & Standards:
  • CAN/CSA-C22.2 No. 107.3 (Canada)
  • ICES (Canada)
  • NOM (Mexico)
  • RETIE (Colombia)
  • UL 1778
  • FCC Part 15 Class A (USA)
  • FCC Part 68
Energy Star:
Yes
Country of Origin:
Vietnam
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0037332281135
UPC: 037332281135
EAN: 0037332281135
UNSPSC: 39121011
