Eaton 5P1550GR Products

Part Number: 5P1550GR
Model: Parts
Add to My Shopping List Add to Compare
$1,169.12
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
IEC 60320 C14
Receptacle Type
IEC 60320 C13
Receptacle Detail
6 x IEC 60320 C13
Load Capacity (VA)
1550 VA

Product Description:

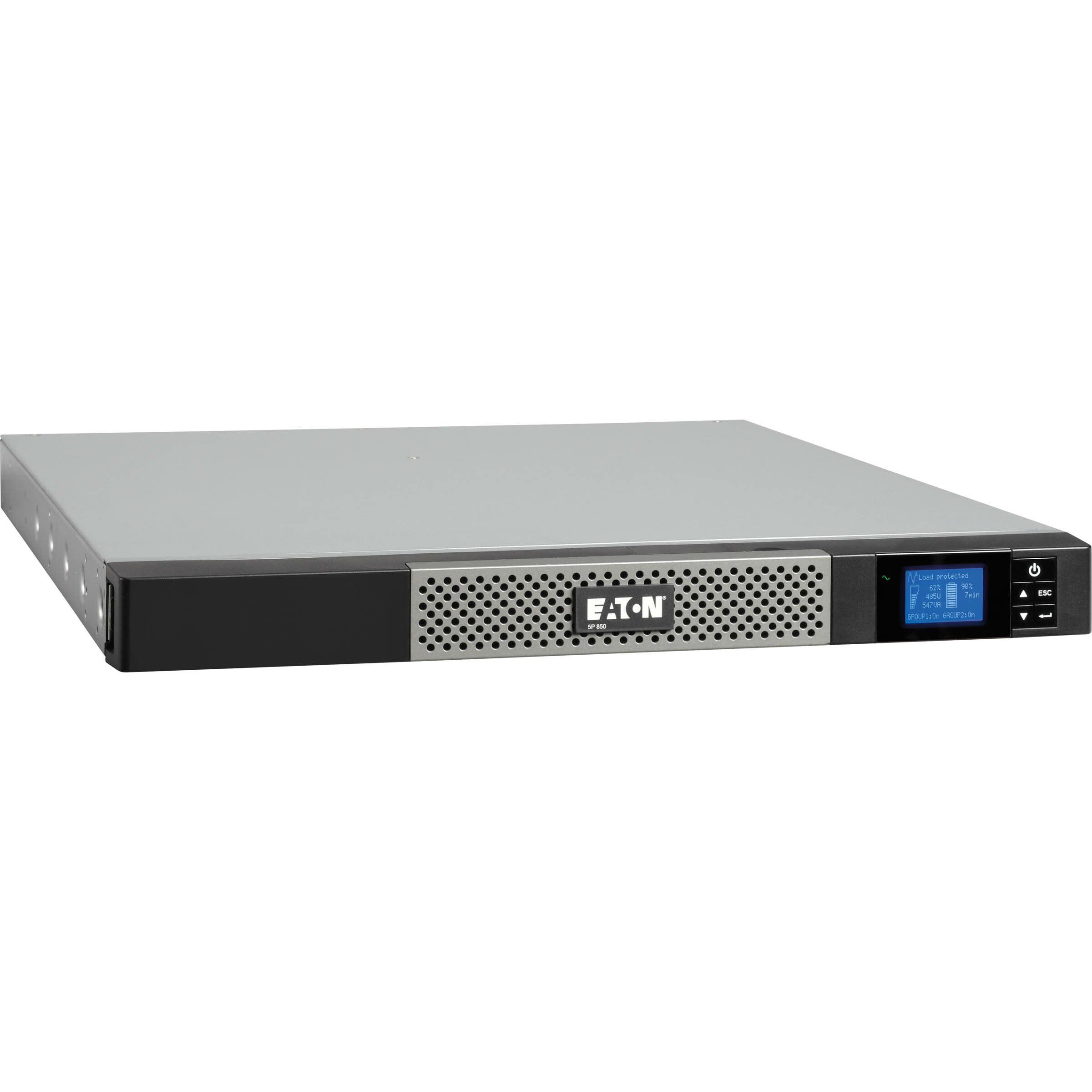

  Eaton 5P Rackmount UPS - 1U Rack-mountable - 4 Minute Stand-by - 220 V AC Input - 6 x IEC 60320 C13
Explore all Eaton Parts Products
Add to Quote
Eaton 5P1550GR Products
Eaton 5P1550GR Products
Technical Information
Plug/Connector Type:
IEC 60320 C14
Receptacle Type:
IEC 60320 C13
Receptacle Detail:
6 x IEC 60320 C13
Power Description
Load Capacity (VA):
1550 VA
Load Capacity (Watt):
1100 W
Input Voltage:
220 V AC
Output Voltage:
  • 240 V AC
  • 208 V AC
  • 132 V AC
  • 220 V AC
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free, Sealed
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
4 Minute
Backup/Run Time (Half Load):
13 Minute
Hot Swappable:
Yes
Physical Characteristics
Height:
1.7"
Width:
17.2"
Depth:
21.8"
Rack Height:
1U
Form Factor:
Rack-mountable
Weight (Approximate):
42.70 lb
Miscellaneous
Package Contents:
  • 5P Rackmount UPS
  • User Manual CD
  • Intelligent Power Software Suite CD
  • Quick Start Guide
  • USB Cable
  • RS-232 Serial Cable
  • 4-Post Rail Kit
  • 2 x IEC-to-IEC Jumper Cables
  • Output Cable Locking System
  • Input Cable Locking System
Certifications & Standards:

  • UL 1778
  • UL497A
  • cULus
  • CE
  • IEC 62040-2 C1-C2
  • EN 55024
  • CISPR22 Class B
  • FCC part 15 Class B
Software Included:
Intelligent Power Software Suite
Energy Star:
Yes
Country of Origin:
Philippines
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0014444651988, 0743172043085, 4963273132358, 4963273163376
UPC: 014444651988, 743172043085
EAN: 0014444651988, 0743172043085, 4963273132358, 4963273163376
UNSPSC: 39121011
The Eaton 5P1550GR Products is also known as POW-5P1550GR
