Full specifications (PDF)
Processor Speed:
1.50 GHz
DT Research 515AX-122 Monitor
Part Number:
515AX-122
Model:
DT515
DT Research DT515 Monitor Model Overview

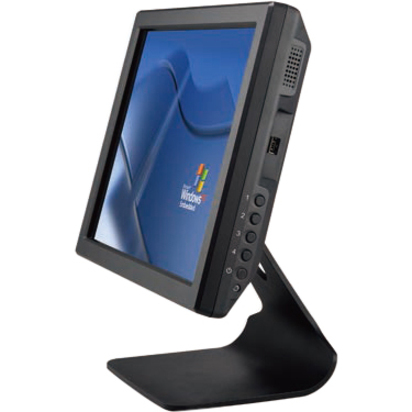

The DT515 digital terminal integrates a vivid display with efficient computing in one slim, mountable enclosure. This LCD-integrated computer features the integration of a bright 15" display, respectively, over an energy efficient Intel Atom processor-powered thin client platform. With optional IR touch screen, internal wireless communication, magnetic stripe reader and smart card reader, the full-featured yet elegant, space-saving package accommodates a range of accessories and peripherals to support a wide variety of vertical applications.
DT Research 515AX-122 Monitor Overview
Thank you for acquiring the DT Research WebDT 515/517, a 15-inch (WebDT 515) or 17-inch (WebDT 517) TFT display-integrated, thin computing platform, offering adaptability to mounting configurations and application paradigms, including information appliance, thin client for server computing, and disk drive-equipped options.
Please take a few moments to review the contents of this document to ensure that the setup and startup proceed smoothly. The WebDT 515/ 517 is ready for use, out of the box, in its default configuration when powered by the power source provided. The following discussion offers guidance on the hardware elements and features of the WebDT 515/ 517. Please refer to your device provider for information pertaining to the software operating system or software applications.
Please take a few moments to review the contents of this document to ensure that the setup and startup proceed smoothly. The WebDT 515/ 517 is ready for use, out of the box, in its default configuration when powered by the power source provided. The following discussion offers guidance on the hardware elements and features of the WebDT 515/ 517. Please refer to your device provider for information pertaining to the software operating system or software applications.
Processor & Chipset
Memory
Standard Memory:
1 GB
Display & Graphics
Screen Size:
15"
Display Screen Type:
LCD
Touchscreen:
Yes
Display Resolution:
1024 x 768
Network & Communication
Ethernet Technology:
Fast Ethernet
Interfaces/Ports
USB:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial Port:
Yes
Built-in Devices
Speakers:
Yes
Software
Operating System:
Windows XP Embedded
Power Description
Input Voltage:
- 220 V AC
- 110 V AC
Physical Characteristics
VESA Mount Compatible:
Yes
Height:
10.9"
Width:
13.9"
Depth:
2.5"
Weight (Approximate):
10.60 lb
Miscellaneous
Package Contents:
- WebDT DT515 POS Terminal
- Desktop Stand
- AC/DC Power Adapter
- Power Cord
- Basic Opreration Guide
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
