Processor Speed:
1.50 GHz
DT Research 1500X-142 Products
Part Number:
1500X-142
Model:
Parts
DT Research Parts Products Model Overview
Products and parts from DT-Research.
DT Research 1500X-142 Products Overview

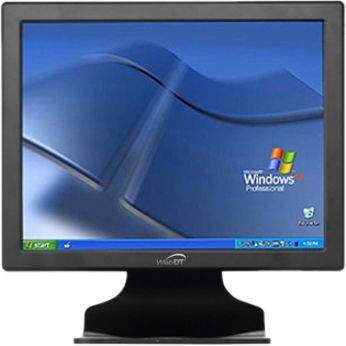

The WebDT Signage System's DS1500 offers an integrated computing display in a single, mountable package. Ideal for digital signage and kiosk applications, this elegant all-in-one system can be remotely managed. A Windows operating system offers a platform compatible with numerous software applications. This fully integrated solution of hardware and software, with touch and point-of-service options, facilitates efficient deployments. Bring dynamic interaction to your audience with the flexible DS1500, the future of interactive signage.
Processor & Chipset
Memory
Standard Memory:
1 GB
Display & Graphics
Screen Size:
15"
Display Screen Type:
LCD
Touchscreen:
Yes
Display Resolution:
1024 x 768
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes
Software
Operating System:
Windows XP Embedded
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Physical Characteristics
Height:
10.9"
Width:
13.9"
Depth:
2.5"
Weight (Approximate):
10.58 lb
Miscellaneous
Package Contents:
- DS1500 Digital Signage Display
- AC/DC Adapter with Power Cord
- Documentation
Additional Information:
- Elegant all-in-one, space saving design; easy to mount
- Fan-less, high performance operation
- High contrast LCD panel with wide viewing angle
- Low power consumption
- Optional magnetic card reader
- Web-enabled, centralized content management and distribution software
- Remote player monitoring, control, and upgrade
- Software Compatible with WebDT Content Manager (WCM) 3.2 or above
- Storage: 2GB to 16GB flash, 32/ 64MB SSD or 2.5" HDD
- Display Enclosure: ABS + PC Plastic
- Stereo Speakers: Built-in Speakers
- Temperature: Operating: 0°C - 40°C; Storage: -20°C - 60°C
- Humidity: 0% - 90% non-condensing
Certifications & Standards:
- FCC Class B
- CE
- C-Tick
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211902
