DT Research 122X-S32 Products

The DT Research 122X-S32 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

DT Research DT122 - DT Research WebDT DT122 Thin ClientIntel Atom Z530 Single-core (1 Core) 1.60 GHz - 2 GB RAM - 32 GB SSD - Intel - Gigabit Ethernet - Windows XP Embedded - HDMI - Network (RJ-45) - 4 Total USB Port(s) - 4 USB 2.0 Port(s)

Intel Atom Intel 1.60 GHz processor kicks execution into high gear; offers quick web browsing and efficiently deals with your crazy work load effortlessly
2 GB VRAM to manipulate data at a super-fast speed
The shared graphic card allows for well-ordered and trouble free performance
Whistle-stop connection and quick data transfers are the highlights of Ethernet technology
Windows XP Embedded has impressive features to offer along with a comfortable interface to work on

Need a different version? See all DT Research DT122 Products

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

DT Research DT122 Products Model Overview

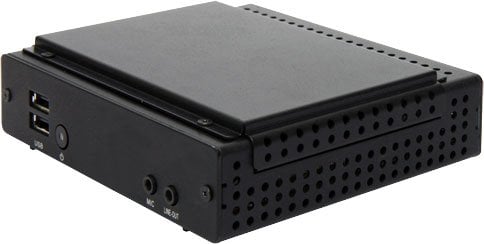

The DT122 features the integration of an energy efficient Intel Atom Z530 processor and Poulsbo SCH within a compact, robust and efficient platform. The DT122 provides a HDMI port and a DVI-I port to adapt to various displays. Options for wireless networking make the DT122 ideal for cable-free and space-saving applications. With fanless, robust and durable construction, the DT122 provides quiet and reliable operation and extended operating life, lowering the total cost of ownership.

DT Research 122X-S32 Products Overview

Modular Thin Platform for Embedded Applications

The DT122 features the integration of an energy efficient Intel® Atom™ Z530 processor and Poulsbo SCH within a compact, robust and efficient platform. The DT122 provides a HDMI port and a DVI-I port to adapt to various displays. Options for wireless networking make the DT122 ideal for cable-free and space-saving applications. With fanless, robust and durable construction, the DT122 provides quiet and reliable operation and extended operating life, lowering the total cost of ownership.

Detailed Specs

Full specifications (PDF)

Processor

Processor Manufacturer:

Intel

Processor Type:

Atom

Processor Model:

Z530

Processor Core:

Single-core (1 Core)

Processor Speed:

1.60 GHz

Cache:

512 KB

Bus Speed:

533 MHz

64-bit Processing:

Hyper-Threading:

Yes

Memory

Standard Memory:

2 GB

Storage

Solid State Drive Capacity:

32 GB

Display & Graphics

Graphics Controller Manufacturer:

Intel

Graphics Memory Accessibility:

Shared

Network & Communication

Ethernet Technology:

Gigabit Ethernet

Interfaces/Ports

HDMI:

Yes

DVI:

Yes

Total Number of USB Ports:

Number of USB 2.0 Ports:

Network (RJ-45):

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Software

Operating System:

Windows XP Embedded

Software Included:

Citrix ICA
Microsoft RDP
WebDT Device Manager Software

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

1.4"

Width:

5.5"

Depth:

5.1"

Weight (Approximate):

14.08 oz

Miscellaneous

Package Contents:

WebDT DT122 Thin Client
VESA Mounting Bracket
AC-DC Power Adapter
Documentation
Power Cord

Certifications & Standards:

UL
CE
C-Tick
FCC Class B

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43211506
