Protection Type:
Surge
DITEK DTK-TSS4D Products
Part Number:
DTK-TSS4D
Model:
Parts
DITEK Parts Accessory Model Overview
Products and parts from DITEK.

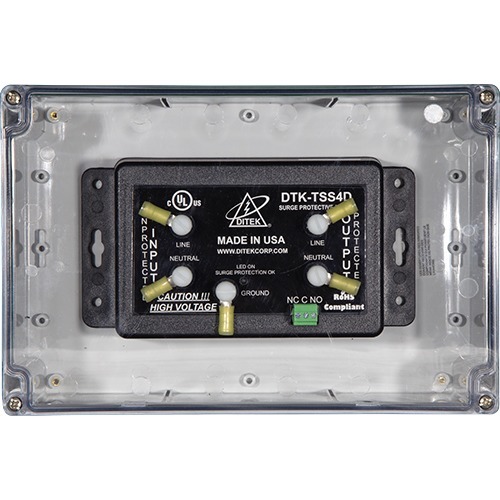

DITEK DTK-TSS4D Products Overview
The TSS4D protects 120V system powe, and has dry contacts for remote notification of surge protection status. Its hybrid design provides maximum critical load protection with UL1283 EMI/RFI filtering. The NEMA 4X enclosure protects against harsh environments such as outdoor locations, chemical plants, and water treatment facilities.
Technical Information
Power Description
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Maximum Line Current:
20 A
Maximum Surge Current:
54 kA
Physical Characteristics
Height:
6.3"
Width:
9.5"
Depth:
3.6"
Weight (Approximate):
1.85 lb
Miscellaneous
Additional Information:
- NEMA 4X weatherproof enclosure
- Multi-stage hybrid circuit design
- Voltage Protection Rating: 600V
- Maximum Continuous Operating Voltage:150VAC
- Housing: Polycarbonate
Country of Origin:
United States
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN:
0782980519047
UPC:
782980519047
EAN:
0782980519047
UNSPSC:
39121610
Get help from a Barcoding Expert!
The DITEK DTK-TSS4D Products is also known as
DTK-TSS4D
