Dataline Protection:
Telecommunication
DITEK DTK-SL95B Products
Part Number:
DTK-SL95B
Model:
Parts
DITEK Parts Accessory Model Overview
Products and parts from DITEK.
DITEK DTK-SL95B Products Overview

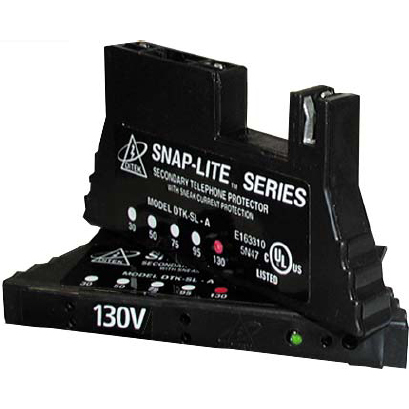

The DITEK Snap-Lite quick-connect line protector is designed specifically for Voice/Data professional. The Snap-Lite provides both voltage and current limiting in addition to surge protection. The unique Multi-function diagnostic LED shows protection status, line continuity and line usage. Available in four different voltages, there is a Snap-Lite for virtually and analog 66 block application.
Technical Information
Power Description
Input Voltage:
95 V AC
Output Voltage:
95 V AC
Maximum Line Current:
2 A
Maximum Surge Current:
4 kA
Physical Characteristics
Height:
1.6"
Width:
3.2"
Depth:
0.4"
Weight (Approximate):
0.50 oz
Miscellaneous
Additional Information:
- Quick connect module - no bridge clips required!
- Each Snap-Lite protects one pair
- Self-resetting fusing
- Field-replaceable
- Clamping Voltage: 150V
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN:
0782980509772
UPC:
782980509772
EAN:
0782980509772
UNSPSC:
39121610
Get help from a Barcoding Expert!
The DITEK DTK-SL95B Products is also known as
DTK-SL95B
