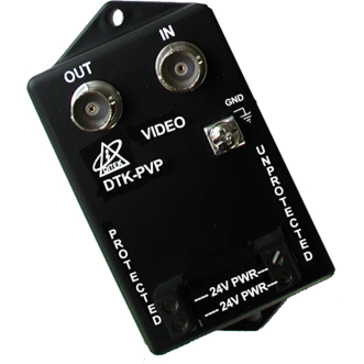

DITEK DTK-PVP27B

DITEK DTK-PVP27B Protector - DTK-PVP27B Surge Suppressor - 2 V, 24 V Input - 2 V, 24 V Output - Coaxial Cable Line, Datacommunication
DITEK DTK-PVP27B Overview
DITEK's PVP27B protects all the sensitive feeds to fixed cameras, not just the video cable. Simple to install, the PVP27B series protects 24 Volt power conductors and video conductors in one compact package. With the lowest video let through voltage (and best surge protection) on the market, the PVP27B provides ideal surge protection for today's sensitive, high-quality fixed cameras. Models are available for Coax Coaxitron and Twisted Pair video connections.
Technical Information
Dataline Protection:
  • Coaxial Cable Line
  • Datacommunication
Power Description
Input Voltage:
  • 2 V
  • 24 V
Output Voltage:
  • 2 V
  • 24 V
Maximum Surge Current:
10 kA
Physical Characteristics
Height:
3.9"
Width:
2.1"
Depth:
1.4"
Weight (Approximate):
2.56 oz
Miscellaneous
Additional Information:
  • Single point ground improves protection and speed installations
  • Impedance: 75 Ohm
  • Housing: ABS

Clamp Voltage:

  • Video: 2.8VDC
  • Power: 33VAC/47VDC
Compatibility:

Cameras

Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN: 0782980502483
UPC: 782980502483
EAN: 0782980502483
UNSPSC: 39121610


The DITEK DTK-PVP27B is also known as DTK-PVP27B or DTKPVP27B .
