Dataline Protection:
- Video
- Datacommunication

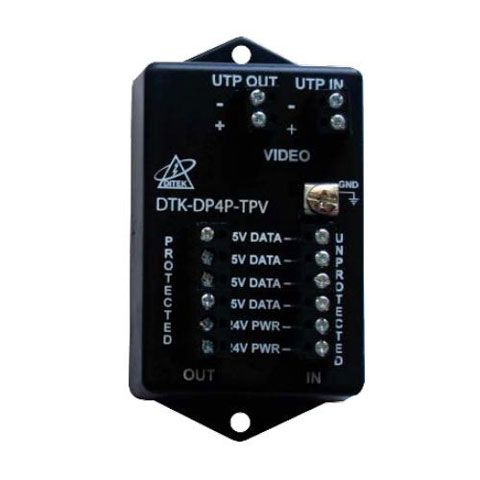

DITEK DTK-DP4PTPV Accessory
Part Number:
DTK-DP4PTPV
Model:
DTK-4LVLP-LV
Technical Information
Power Description
Input Voltage:
- 1 V
- 5 V
- 24 V
Output Voltage:
- 1 V DC
- 5 V DC
- 24 V DC
Maximum Surge Current:
3 kA
Physical Characteristics
Height:
3.9"
Width:
2.1"
Depth:
1.4"
Weight (Approximate):
2.60 oz
Miscellaneous
Additional Information:
- Twisted Pair video connections
- Reduces downtime and equipment failure due to transient voltage surges from lightning
- Protects power, video and four data conductors in one package
- Multi-stage, SAD technology, hybrid design provides the best possible protection
- Single point ground improves protection and speeds installation
- Housing:ABS
- Standing Wave Ratio (SWR): 1.2:1
Voltage Clamping:
- Video: 6.8VDC
- Data: 6.8VDC
- Power: 33VAC/47VDC
Compatibility:
Pan/Tilt/Zoom Cameras
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
10 Year
Item Numbers
UNSPSC:
39121610
The DITEK DTK-DP4PTPV Accessory is also known as
DTK-DP4PTPV
