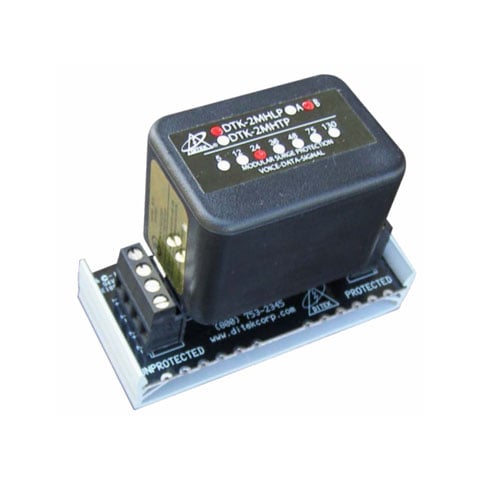

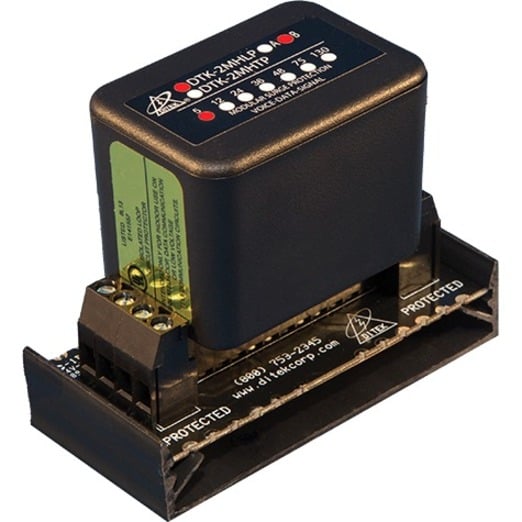

DITEK DTK-2MHLP5BWB Accessory

Part Number: DTK-2MHLP5BWB
Model: DTK-4LVLP-LV
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Dataline Protection
Voice/Data/Loop
Protection Type
Surge
Input Voltage
5 V DC
Output Voltage
5 V DC

Product Description:

  DITEK Voice, Data and Signaling Circuit Modular Surge Protection - 5 V DC Input - 5 V DC Output
Explore all DITEK DTK-4LVLP-LV Accessories
Add to Quote
DITEK DTK-2MHLP5BWB Accessory
DITEK DTK-2MHLP5BWB Accessory
DITEK DTK-2MHLP5BWB Accessory
DITEK DTK-2MHLP5BWB Accessory DITEK DTK-2MHLP5BWB Accessory DITEK DTK-2MHLP5BWB Accessory
Technical Information
Dataline Protection:
Voice/Data/Loop
Protection Type:
Surge
Power Description
Input Voltage:
5 V DC
Output Voltage:
5 V DC
Maximum Line Current:
5 A
Maximum Surge Current:
20 kA
Physical Characteristics
Height:
2.6"
Width:
3.3"
Depth:
1.5"
Weight (Approximate):
2.80 oz
Miscellaneous
Package Contents:
  • Voice, Data and Signaling Circuit Modular Surge Protection
  • Single Mounting Base
Additional Information:
  • Connection Method - Module: Edge card into DTK-MB Mounting Base
  • Base: 10AWG max screw terminals
  • Data Rate: 200kbps
  • MCOV: 5V
  • Typical Left Through Voltage: 6.8V
  • Housing: ABS
Compatibility:
  • Alarm Panel NAC
  • Fire Panels
  • Burglar Alarm Panels
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN: 0782980508966
UPC: 782980508966
EAN: 0782980508966
UNSPSC: 39121610
The DITEK DTK-2MHLP5BWB Accessory is also known as DTK-2MHLP5BWB
