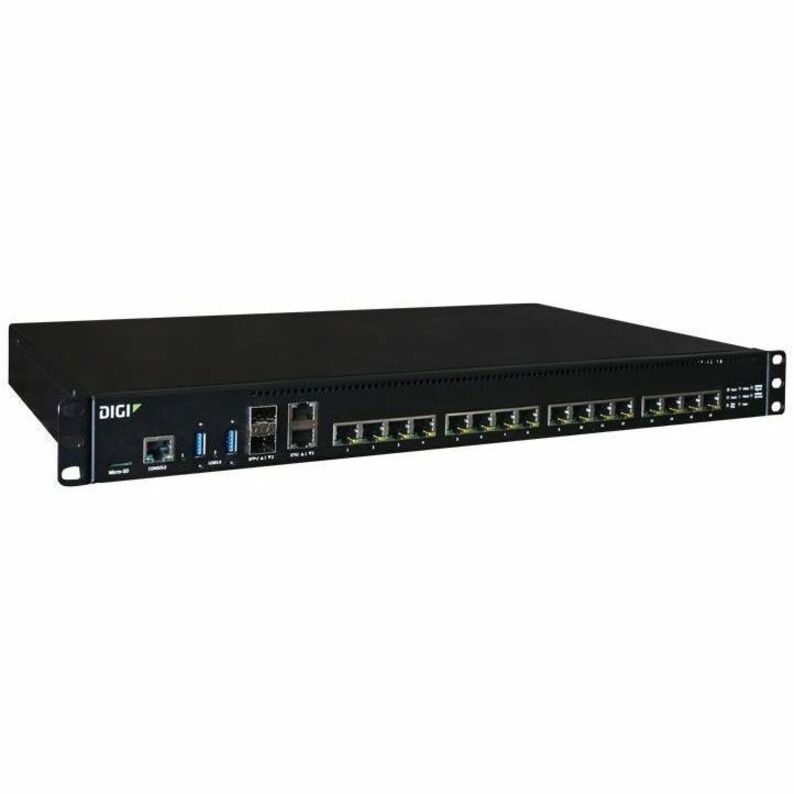

Digi EZ16-A100-US Console & Device Servers

Part Number: EZ16-A100-US
Model: Parts
Add to My Shopping List Add to Compare
$1,815.55
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wired
Data Link Protocols
HTTPHTTPS
Standard Memory
256 MB
Media Type Supported
Twisted PairOptical Fiber

Product Description:

  Digi Intl, Im CONNECT EZ 16 SERIAL SVR 16 RS-232 SERIAL PORTS US PWR CORD
Explore all Digi Parts Accessories
Add to Quote
Digi EZ16-A100-US Console & Device Servers
Digi EZ16-A100-US Console & Device Servers
Digi EZ16-A100-US Console & Device Servers Digi EZ16-A100-US Console & Device Servers

Digi Parts Accessory Model Overview

Products and parts from Digi.
Technical Information
Connectivity Technology:
Wired
Data Link Protocols:
  • HTTP
  • HTTPS
Memory
Standard Memory:
256 MB
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
I/O Expansions
Total Number of Expansion Slots:
2
Expansion Slot Type:
SFP+
Network & Communication
Ethernet Technology:
10 Gigabit Ethernet
Network Standard:
  • 10/100/1000Base-T
  • 10GBase-X
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Serial Port:
Yes
Management Port:
Yes
Total Number of Network Ports:
4
Number of Network (RJ-45) Ports:
2
Number of USB Ports:
2
Number of Serial Ports:
16
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
122°F (50°C)
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Input Voltage Range:
100 V AC - 240 V AC
Input Current:
2.40 A
Plug/Connector Type:
IEC 60320 C13
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
Height:
1.7"
Width:
17.5"
Depth:
10"
Miscellaneous
Package Contents:
  • Connect EZ 16 - Serial Server, US Power Cord
  • Power Supply with US Power Cord
  • 19" Rack Ears
Certifications & Standards:
  • IEC 62368-1
  • IEC 60950-1
  • CB
  • EN 62311
  • UL 62368-1
  • UL 60950-1
  • CE
  • RED
  • FCC Part 15
  • Subpart B
  • ICES-003
  • AU/NZS CISPR 32
  • CISPR 35


Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
5 Year
Additional Warranty Information:

Technical support: 1-year LifeCycle Assurance with 24x7 Expert Support included

Item Numbers
GTIN: 0663072965907, 0663072967857
UPC: 663072965907, 663072967857
EAN: 0663072965907, 0663072967857
UNSPSC: 43222625
