Digi DC-WSP-01-S Data Networking

Part Number: DC-WSP-01-S
Model: Connect Wi-SP

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN
Yes
Wireless LAN Standard
IEEE 802.11b
Serial Port
Yes
Number of Serial Ports
1

Product Description:

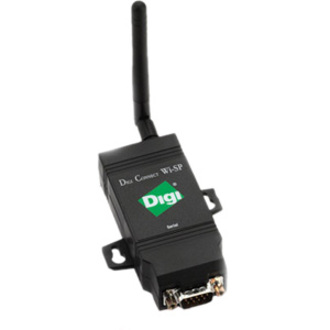

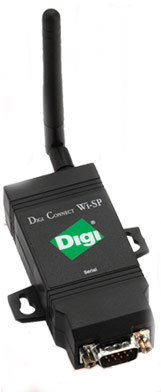

  Digi Connect DC-WSP-01-S Wireless Device Server - 1 x Serial Port - IEEE 802.11b - Wireless LAN

Digi Connect Wi-SP Data Networking Model Overview

The Digi Connect® Wi-SP is the industry's first secure 802.11b wireless device server, providing unbeatable network-to-serial connectivity coupled with top-notch WPA2/802.11i security. Engineered for flexibility and ease of use, this compact device is ideal for retail, warehouse, healthcare, and medical applications, allowing dynamic changes to your infrastructure without the constraints of wired systems. With the ability to support enterprise-class security while offering a seamless plug-and-play experience, the Digi Connect Wi-SP ensures that your sensitive data is always protected while enhancing your operational efficiency.


Key features:
  • Compact enclosure design with integrated mounting tabs
  • Fully switch-selectable RS-232/422/485 high-speed serial interface
  • Flexible 9-30VDC power input
  • Wireless 802.11b network interface with data rates up to 11 Mbps
  • Enterprise-class wireless security with WPA2/802.11i compliance
  • RealPort® technology for COM/TTY port redirection

Specifications:
  • Hardware:
    • 32-bit NET+ARM high-performance RISC processor (NS7520 55 MHz)
    • 4 MB Flash and 16 MB RAM
    • Throughput up to 230,400 bps
  • Wireless Interface:
    • Standard: IEEE 802.11b
    • Frequency: 2.4 GHz
    • Data rate: Up to 11 Mbps
  • Security:
    • WEP 64/128-bit encryption
    • WPA/WPA2/802.11i support
  • Environmental:
    • Operating temperature: -20° C to +65° C
    • Storage temperature: -40° C to +90° C
  • Power Requirements:
    • 9-30VDC @ 450 mA
Digi DC-WSP-01-S Data Networking Overview

The Digi Connect Wi-SP is the industry's first wireless serial server to provide enterprise-class wireless security through a complete set of strong encryption and authentication services, which are compliant with the WPA2 and 802.11i standards. It combines the benefits of secure wireless networking technology with proven serial port connectivity, making it the ideal choice for retail, warehouse, healthcare and medical applications.

Wireless Specifications
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b
Interfaces/Ports
Serial Port:
Yes
Number of Serial Ports:
1
Physical Characteristics
Form Factor:
Desktop
Height:
4.2"
Width:
1.7"
Depth:
1"
Miscellaneous
Additional Information:
  • 32-bit NET+ARM high-performance RISC processor (NS7520 55 MHz)
  • 4 MB Flash Memory
  • 16 MB RAM
  • Frequency: 2.4 GHz
  • Data rate: Up to 11 Mbps with automatic fallback
  • Modulation: CCK, DQPSK, DBPSK
  • Antenna connector: 1 x RP-SMA
Item Numbers
GTIN: 0663072929527
UPC: 663072929527
EAN: 0663072929527
UNSPSC: 43222625
