Digi DC-WAN-G511 Products

Part Number: DC-WAN-G511
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Broadband Transmission Technology
Cellular
ISM Band
No
UNII Band
No
Cellular Generation
4G

Product Description:

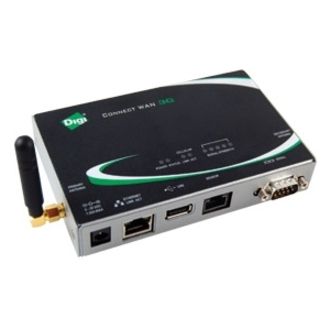

  Digi Digi Connect Wireless Router - 4G - 2 x Antenna - 1 x Network Port - Rail-mountable
Explore all Digi Parts Accessories
Add to Quote
Digi DC-WAN-G511 Products
Digi DC-WAN-G511 Products
Digi DC-WAN-G511 Products Digi DC-WAN-G511 Products

Digi Parts Accessory Model Overview

Products and parts from Digi.
Digi DC-WAN-G511 Products Overview

Digi Connect WAN cellular and WiMAX routing gateways provide secure high-speed wireless connectivity to remote sites and devices. These products can be used for reliable primary wireless network connectivity to equipment at remote locations, as well as for a backup to existing landline communications. The Digi Connect WAN family is also ideal for use where wired networks are not feasible, or where alternative network connections are required.

Digi Connect WAN products provide a primary Wireless WAN connection to remote sites containing Ethernet and/or serial devices. Applications include new construction locations, industrial automation, power utility substations, retail/POS sites, railroad, temporary facilities without primary wired connections, and many more.

Wireless Specifications
Broadband Transmission Technology:
Cellular
ISM Band:
No
UNII Band:
No
Cellular Generation:
4G
Cellular Network Supported:
  • CDMA2000 1xEV
  • WCDMA 850
  • WCDMA 900
  • WCDMA 1900
  • WCDMA 2100
Cellular Data Connectivity Technology:
  • EVDO
  • HSPA+
Total Number of Antennas:
2
Antenna Type:
Diversity Antenna
Antenna Connector:
SMA Connector
Interfaces/Ports
Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
VGA:
No
Serial:
Yes
USB:
No
Powerline:
No
PoE (RJ-45) Port:
No
Management Port:
Yes
I/O Expansions
Expansion Slots:
1 x SIM Card
Network & Communication
Network Technology:
10/100Base-TX
Management & Protocols
Management:
  • DHCP
  • SNMP v1/2
  • Web Based Management
  • CLI
  • Telnet
  • Secure Enterprise Management via iDigi
Security Features:
  • SSL
  • NAT
  • NAT-T (NAT Traversal)
  • GRE
  • Access Control Lists
  • IP Address Filtering
  • IPsec
  • IKE
  • DES
  • 3DES
  • 256-bit AES
Power Description
Input Voltage:
30 V DC
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
Rail-mountable
Height:
1"
Width:
3.4"
Depth:
5.3"
Weight (Approximate):
1 lb
Miscellaneous
Certifications & Standards:

IEEE Standards:

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.16e

Safety:

  • UL 60950
  • CSA 22.2 No. 60950
  • EN60950

Emissions/Immunity:

  • CE
  • FCC Part 15 Class A
  • AS/NZS CISPR 22
  • EN55024
  • EN55022 Class A

Mobile Certifications:

  • CDG
  • TIA/EIA-690
  • TIA/EIA-98-E
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0663072931728
UPC: 663072931728
EAN: 0663072931728
UNSPSC: 43222609
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Digi DC-WAN-G511 Products is also known as DIG-DC-WAN-G511
