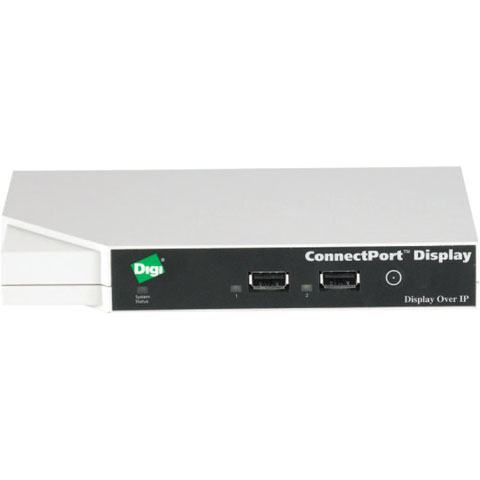

Digi CP-DIS-M22-CE Data Networking

Part Number: CP-DIS-M22-CE
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wired
Number of Input Devices Supported
1
Number of Output Devices Supported
1
Graphics Modes
UXGA

Product Description:

  Digi ConnectPort Video Extender - 1 Input Device - 1 Output Device - 1 x Network (RJ-45) - 2 x USB - 1 x VGA In - Serial Port - UXGA - 1600 x 1200
Explore all Digi Parts Accessories
Add to Quote
Digi CP-DIS-M22-CE Data Networking
Digi CP-DIS-M22-CE Data Networking
Digi CP-DIS-M22-CE Data Networking Digi CP-DIS-M22-CE Data Networking

Digi Parts Accessory Model Overview

Products and parts from Digi.
Digi CP-DIS-M22-CE Data Networking Overview

ConnectPort Display is a network-enabled video display hub. It provides a video port, audio port and additional serial and USB ports for human interface devices such as a keyboard, mouse or touch panel. Zero-client models can be centrally managed and monitored from a remote server or PC via an IP address, resulting in smaller deployment stations, centralized management and reduced IT support. ConnectPort Display also supports standard terminal emulation, giving the flexibility to deploy the product today in a terminal oriented configuration and migrate to newer graphic displays and applications whenever desired.

Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Video
Graphics Modes:
UXGA
Maximum Video Resolution:
1600 x 1200
Interfaces/Ports
Network (RJ-45):
Yes
VGA In:
Yes
USB:
Yes
Microphone:
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
1
Number of USB Ports:
2
Number of VGA Inputs:
1
Physical Characteristics
Transmitter Height:
1.03"
Transmitter Width:
7.20"
Transmitter Depth:
4.35"
Miscellaneous
Package Contents:
  • ConnectPort Video Extender
  • Power Supply
Certifications & Standards:
  • EN60950
  • UL 1950
  • CSA 2.2 No.950
  • IEC 950
  • CE
  • FCC Part 15 Class B
  • EN55022
  • EN55024
Item Numbers
GTIN: 0663072201906
UPC: 663072201906
EAN: 0663072201906
UNSPSC: 43222619
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Digi CP-DIS-M22-CE Data Networking is also known as DIG-CPDISM22CE
