Full specifications (PDF)
Host Interface:
RJ-45
Digi AW-USB-14 Data Networking
Part Number:
AW-USB-14
Model:
AnywhereUSB
Digi AnywhereUSB Data Networking Model Overview

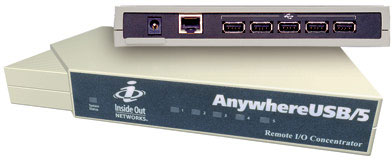

AnywhereUSB®/5 is a revolutionary network-enabled USB hub that breaks the five-meter USB cabling distance limitation. With USB Over IP® technology, this device allows peripheral devices to connect seamlessly over a Local Area Network (LAN) without requiring a locally-attached PC. Ideal for point-of-sale systems, industrial automation, and more, AnywhereUSB/5 supports centralized management and monitoring for ease of use. Retailers can relocate host PCs to secure locations, enhancing system redundancy and security while minimizing the footprint of point-of-sale stations.
Key Features
Specifications
Key Features
- Network-enabled USB hub connects easily to point-of-sale devices over a LAN
- Extends USB cabling distance beyond the traditional five meters
- System redundancy and security by relocating host PCs to safer areas
- Monitor devices remotely over a TCP/IP connection
- Same Plug-and-Play user experience as local USB ports
- Compatible with bulk or interrupt type USB devices
Specifications
- Model: AnywhereUSB/5
- Connectivity: RJ-45 Ethernet, 5 USB ports
- Data rates: Up to 12Mbps per USB port
- Power supply: 120/230 VAC, 5Vdc @ 3 Amps max
- Operating systems: Windows® XP, 2000, NT® 4.0, Server™ 2003
- Environmental: 32° to 140° F, 0% to 95% relative humidity
- Dimensions: 4.35 in x 7.2 in x 1.03 in
- Weight: 10 oz (283.49 g)

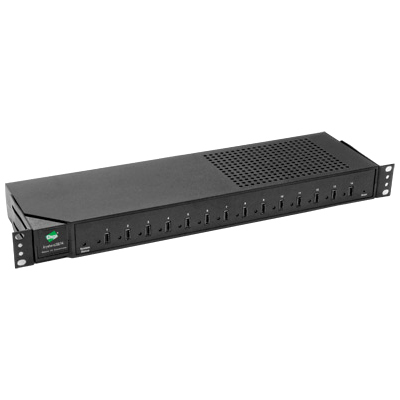

Digi AW-USB-14 Data Networking Overview
AnywhereUSB products are network-attached USB hubs that connect USB peripheral devices to a PC over a Local Area Network. The AnywhereUSB TS model also adds four RS-232 serial ports, enabling the mixing of USB and serial ports over the same network connection. Relocating the host PC to a remote location translates to smaller workstations, enabling deployment without a local PC in kiosks, ATMs, restaurant kitchens, manufacturing lines or any hostile or non-secure area where having a local PC is not practical.
Technical Information
Interfaces/Ports
Total Number of USB Ports:
14
Number of USB 2.0 Ports:
14
Number of Network (RJ-45) Ports:
2
Physical Characteristics
Form Factor:
External
Height:
1.7"
Width:
17"
Depth:
5"
Weight (Approximate):
2.50 lb
Miscellaneous
Platform Supported:
PC
Item Numbers
GTIN:
0370751858152, 0658911202251, 0818279605747, 4963263161993, 4963263162037
UPC:
370751858152, 658911202251, 818279605747
EAN:
0370751858152, 0658911202251, 0818279605747, 4963263161993, 4963263162037
UNSPSC:
43211609
The Digi AW-USB-14 Data Networking is also known as
DIG-AW-USB-14
