Digi 77000616 Data Networking

Part Number: 77000616
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Fax Technology
Group 3ITU-T V.17ITU-T V.29ITU-T V.27terITU-T V.21 channel 2Class 2
Modulation
ITU-T V.90ITU-T V.34ITU-T V.32ITU-T V.32bisITU-T V.23ITU-T V.22bisITU-T V.22ITU-T V.21Bell 212ABell 103
Host Interface
PCI
Modem Transmission Data Rate
56 kbit/s

Product Description:

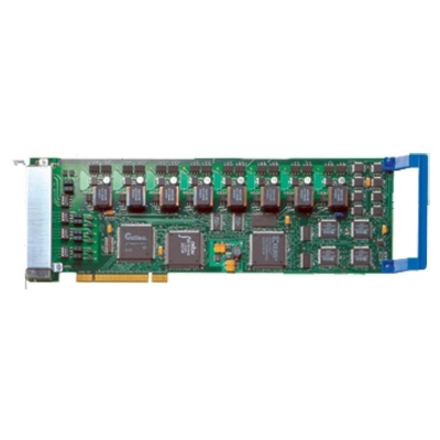

  AccelePort RAS (UNIV 3.3 and 5.0V, PCI 4 Modem Card with RJ-11)
Explore all Digi Parts Accessories
Add to Quote
Digi 77000616 Data Networking
Digi 77000616 Data Networking
Digi 77000616 Data Networking Digi 77000616 Data Networking

Digi Parts Accessory Model Overview

Products and parts from Digi.
Digi 77000616 Data Networking Overview
The Digi AccelePort RAS Family of multi-modem analog adapters provides the widest compatibility and most powerful performance available. For demanding applications such as fax servers, remote access, data aquisition and modem pooling, you won't find a better product line than the Digi AccelePort RAS Family.
Technical Information
Fax Technology:
  • Group 3
  • ITU-T V.17
  • ITU-T V.29
  • ITU-T V.27ter
  • ITU-T V.21 channel 2
  • Class 2
Modulation:
  • ITU-T V.90
  • ITU-T V.34
  • ITU-T V.32
  • ITU-T V.32bis
  • ITU-T V.23
  • ITU-T V.22bis
  • ITU-T V.22
  • ITU-T V.21
  • Bell 212A
  • Bell 103
Interfaces/Ports
Host Interface:
PCI
Media & Performance
Modem Transmission Data Rate:
56 kbit/s
Power Description
Input Voltage:
12 V DC
Input Current:
180 mA
Physical Characteristics
Form Factor:
Plug-in Card
Height:
8.3"
Width:
12.3"
Thickness:
4.2"
Weight (Approximate):
11.20 oz
Miscellaneous
Additional Information:
FAX FEATURESET:
  • FAX Compression Formats: All optional class 2.0 data format conversions are supported including:
    - Normal Image
    - Fine Image
    - MH (1D) Image Conversion
    - MR (2D) Image Conversion
    - MMR Image Conversion
  • Copy Quality Checking and Receive Quality Thresholds
  • Adaptive Answering
  • Automatic Page Header Generation (TSI Banner)
  • Distinctive Ring

    Bus Type:
  • 32-bit PCI
  • Bus Master Design
  • Universal 3.3 V and 5.0 V PCI support

    Telephony:
  • DTMF generation and detection
  • Call Progress detection
  • Caller ID

    Bus capacity: Unlimited AccelePort RAS DSPbased adapters can work together in the same server. Practical limitations are dependent on the capability of the server platform.

    Enviromental:
  • Air Movement: 30 CFM Forced
Compatibility:
Operating systems:
  • Microsoft Windows 2003
  • Microsoft Windows XP
  • Microsoft Windows 2000
  • Microsoft Windows NT 4.0
  • Linux
  • IBM AIX 4.2.1, 4.3.x, 5
  • Novell NetWare 4.x and 5.x
  • SCOUnixWare 7
  • SCO OpenServer 5.x
  • Sun Solaris 2.7, 8, 9
  • HP-UK 10.20, 11.00, 11i
    Most drivers ship with product on CD-ROM. Drivers and driver updates also available on our Web-site at www.digi.com/drivers.
Certifications & Standards:
  • FCC Part 15, Subpart B, Class B
  • EN 50082-1
  • UL Recognized, UL 1950
  • FCC Part 68
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0663072920623, 7426900365378
UPC: 663072920623
EAN: 0663072920623, 7426900365378
UNSPSC: 43222628
