Full specifications (PDF)
Ethernet Technology:
Fast Ethernet
Digi 70002043 Console & Device Servers
Part Number:
70002043
Model:
PortServer TS 2

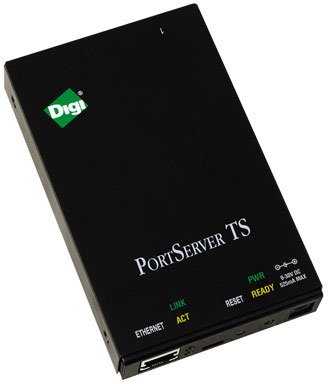

Digi PortServer TS 2 Accessory Model Overview
The Digi PortServer TS is an advanced device server designed to ensure seamless serial-to-Ethernet connectivity for multiple serial devices. Ideal for retail, point-of-sale, building control, and medical applications, this device makes it easy to integrate RS-232 devices into existing network environments. With features like Digi's patented RealPort technology, it simplifies COM and TTY port management, ensuring secure and efficient device communication. Available in one, two, or four-port models, the PortServer TS helps organizations streamline their device management and enhance operational efficiency.
Key features:
Specifications:
Key features:
- Easily network-enable multiple serial devices
- RealPort technology for COM/TTY port control
- Secure SSHV2 communication
- Web interface for easy configuration
- Modem emulation for existing applications
- Port buffering for data capture
Specifications:
- Ethernet: 10/100Base-T support
- Ports: 1/2/4 RS-232 RJ-45 serial ports
- Baud rate: up to 230 Kbps
- Power requirements: 9-30VDC input
- Power Consumption: Typical 4W, Max 6W
- Operating temperature: 0°C to 60°C
- Weight: 2.25 oz (64.00 g)
- Dimensions: 5.25 in x 3.33 in x 0.95 in
- Regulatory approvals: FCC Part 15, CE, UL 1950
Digi 70002043 Console & Device Servers Overview
The PortServer TS 2 deliver simple, reliable and cost-effective network connectivity for multiple serial devices. It addresses the growing need to connect individual devices to the network over industry standard Ethernet in many applications, including retail/point-of-sale, building control and medical point-of-care.
Network & Communication
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
3
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1"
Width:
3.3"
Depth:
5.3"
Weight (Approximate):
2.25 oz
Miscellaneous
Package Contents:
- PortServer TS 2 Device Server
- Power supply
- RJ-45/DB-9F crossover cable
Country of Origin:
United States
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0014445687214, 0066307293002, 0663072930028, 0735548717690
UPC:
014445687214, 066307293002, 663072930028, 735548717690
EAN:
0014445687214, 0066307293002, 0663072930028, 0735548717690
UNSPSC:
43222625
