Media Type Supported:
Twisted Pair
Digi 70001992 Console & Device Servers
Part Number:
70001992
Model:
Parts
Digi Parts Accessory Model Overview
Products and parts from Digi.

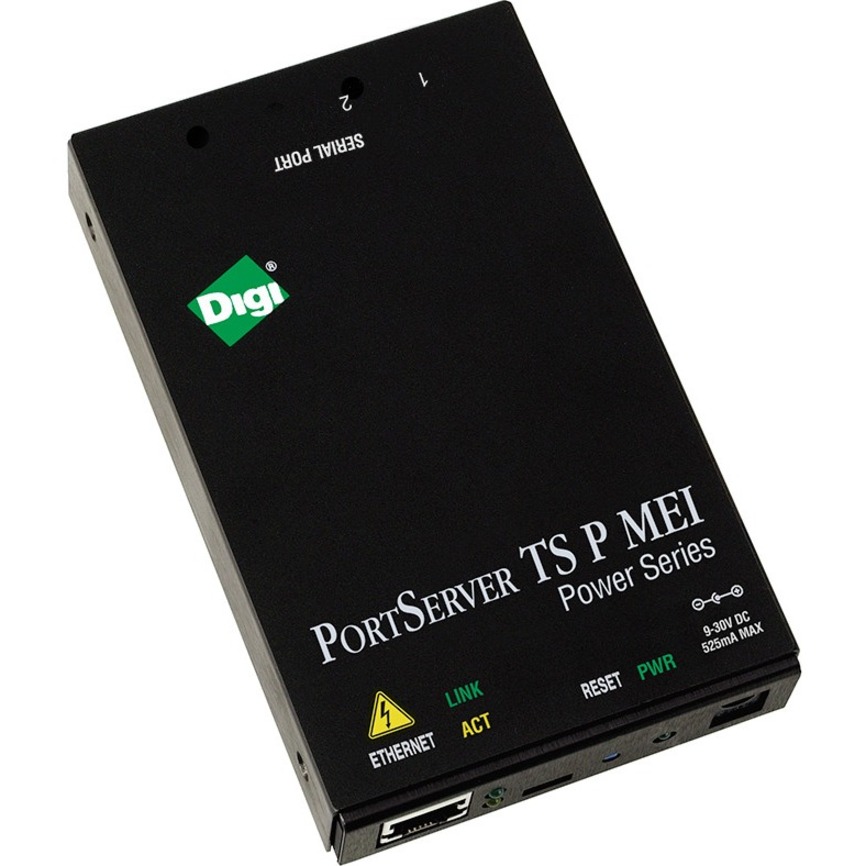

Digi 70001992 Console & Device Servers Overview
PortServer TS P MEI makes it easy to connect RS-232/422/485 serial devices to an IP network. By supporting versatile powering options like powered Ethernet and powered serial, this serial server can adapt to many applications where traditional power alternatives are required.
Powered Ethernet (802.3af, mid- and end-span support) makes it possible to run just one Ethernet cable to the device server for both power and communications. The powered serial feature enables PortServer TS P MEI to power a device over serial using Ring Indicator (RI) or DTR pins. Each power feature is available in addition to a traditional power connector, and can serve as redundant power in case of an outage from either source.
Available in two- and four-port versions, PortServer TS P MEI delivers universal, high performance multiport serial-to- Ethernet connectivity. It is ideal for applications requiring COM ports, serial tunneling, or where TCP/UDP Socket functionality is needed.
Media & Performance
Wireless Specifications
Wireless LAN:
No
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Standard:
10/100Base-TX
Interfaces/Ports
Network (RJ-45):
Yes
USB:
No
Serial Port:
Yes
Parallel Port:
No
Centronics Port:
No
PoE (RJ-45) Port:
Yes
Number of Network (RJ-45) Ports:
1
Number of Serial Ports:
2
Physical Characteristics
Height:
1"
Width:
5.3"
Depth:
3.3"
Weight (Approximate):
2.25 oz
Item Numbers
GTIN:
0663072928858
UPC:
663072928858
EAN:
0663072928858
UNSPSC:
43222625
