Digi 70001947 Data Networking

Part Number: 70001947
Model: Neo
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Host Interface
PCI
Maximum Data Transfer Rate
3.60 Mbit/s
Protocols
RS-232
Platform Supported
PC

Product Description:

  Universal PCI (3.3V & 5V) Card, 8-Port RS-232 serial ports, DB-25M Connector, Throughput exceeding 460.8 Kbps, Fan-Out Cables
Explore all Digi Neo Data Networkings
Add to Quote
Digi 70001947 Data Networking
Digi 70001947 Data Networking
Digi 70001947 Data Networking Digi 70001947 Data Networking
Full specifications (PDF)

Digi Neo Data Networking Model Overview

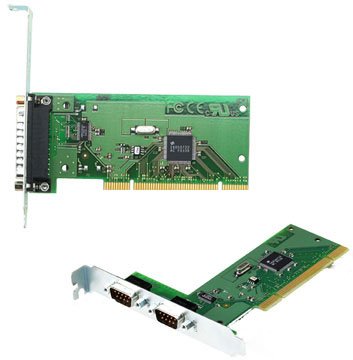

The Digi Neo is a multi-port serial card with Universal PCI (3.3V and 5.5V) bus slot support. It offers up to eight RS-232 serial ports with throughput speeds exceeding 460.8 Kbps. Surge suppression on all signals ensures voltage fluctuations will not degrade data transmissions. Flexible cabling/connector options include RJ-45, DB-9 and DB-25 connectors. Includes an Application Specific Integrated Circuit (ASIC) for reliable performance. Neo supports most popular operating systems, has enhanced software monitoring and diagnostic tools, and has a robust feature set.
Digi 70001947 Data Networking Overview

Digi Neo Universal PCI (3.3v & 5v) card leverage an Application Specific Integrated Circuit (ASIC) to provide throughput speeds exceeding 460.8 Kbps, large buffers for data transfer, low latency and baud rate customization. These features, along with on-board surge suppression on each signal and the low profile size, make the Digi Neo ideal for applications with tight workstation constraints and specialized server environments.

Support for the most popular operating systems and the variety of cabling options allow the user flexibility during installation set-up. The enhanced software monitoring and diagnostic tools ensure that the Digi Neo has been installed properly and is working at the specified serial port settings.

Full specifications (PDF)
Technical Information
Host Interface:
PCI
Maximum Data Transfer Rate:
3.60 Mbit/s
Protocols:
RS-232
Platform Supported:
PC
Interfaces/Ports
Ports:
1 x 68-pin HD-68 - SCSI
Ports Expandability:
8 x DB-25 - Serial, Via Fan-out Cable
Physical Characteristics
Form Factor:
Plug-in Card
Height:
2.5"
Width:
4.7"
Thickness:
725 mil
Weight (Approximate):
2 oz
Miscellaneous
Compatibility:
  • PCI-X/PCI 2.3 compatible

Supported Operating Systems:

  • Microsoft Windows Server 2003
  • Microsoft Windows XP
  • Microsoft Windows 2000
  • Microsoft Windows NT
  • Microsoft Windows 95
  • Microsoft Windows 98
  • Microsoft Windows Me
  • Linux
  • SCO OpenServer
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0663072927134
UPC: 663072927134
EAN: 0663072927134
UNSPSC: 43201407
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Digi 70001947 Data Networking is also known as DIG-70001947
