Full specifications (PDF)
Ethernet Technology:
Fast Ethernet
Digi 70001806 Console & Device Servers
Part Number:
70001806
Model:
PortServer TS 2-4 MEI

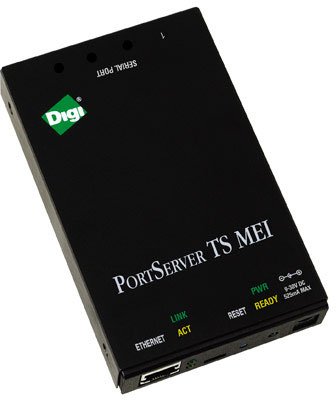

Digi PortServer TS 2-4 MEI Data Networking Model Overview
The Digi PortServer TS MEI device server revolutionizes serial-to-Ethernet connectivity, making remote management a breeze for RS-232, RS-422, and RS-485 applications. Ideal for diverse environments, this high-performance server enables users to seamlessly network multiple serial devices while ensuring security with SSH v2 encryption. With integrated management tools and simple web-based configuration, troubleshooting and monitoring are more efficient than ever. Whether for console management or data tunneling, the PortServer TS MEI stands out as a reliable solution for modern connectivity needs.
Key Features
Specifications
Key Features
- Easily network-enable multiple serial devices
- Switch selectable RS-232/422/485 for simple interfacing
- Digi's patented RealPort with encryption for COM or TTY access
- Secure communication via SSH v2
- Management and diagnostic utility for efficient device monitoring
- Easy configuration through web interface (HTTP/HTTPS)
- Low latency for rapid data transmission
Specifications
- Model: PortServer TS MEI
- Ports: RJ-45 serial ports (1, 2, or 4 options)
- Baud rates: Up to 230 Kbps
- Power Requirements: 9-30VDC @ 0.5A max
- Operating Systems Supported: Windows, Linux, Solaris, AIX, HP-UX, and more
- Dimensions: 5.42 in x 3.33 in x 0.952 in
- Temperature Range: 0 to 50°C (32 to 122°F)
- Humidity: 5% to 90% (non-condensing)
- Regulatory Approvals: FCC, CE, UL, CSA
Digi 70001806 Console & Device Servers Overview
The PortServer TS 2 MEI adds switch-selectable RS-232/422/485 serial port connectivity to the standard PortServer TS family, making it easy to connect multiple serial devices to your network. It combines the inherent benefits of data networking with proven asynchronous connectivity to deliver powerful yet simple Ethernet connections for all of your serial devices.
Network & Communication
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
3
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1"
Width:
3.3"
Depth:
5.3"
Weight (Approximate):
2.25 oz
Miscellaneous
Package Contents:
- PortServer TS 2 MEI 2-Port Device Server
- Power supply
Additional Information:
Switch selectable RS-232/422/485 for simple interfacing to virtually any type of serial device
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0014445414711, 0014445682271, 0663072925635, 4913383196634
UPC:
014445414711, 014445682271, 663072925635
EAN:
0014445414711, 0014445682271, 0663072925635, 4913383196634
UNSPSC:
43222625
