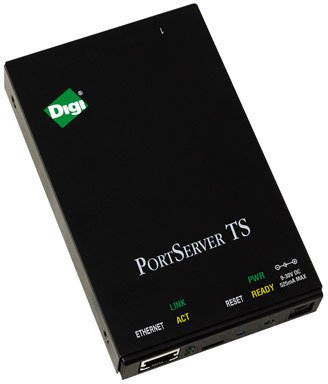

Digi PortServer TS 8-16 - PortServer TS 16 Rack (RS-232 Only, RJ45 Serial to Ethernet)
Easy configuration through web interface (HTTP/HTTPS)

PortServer TS 8-16 from Digi delivers simple, reliable and cost-effective network connectivity for multiple serial devices. RS-232 provides an easy connection to any serial device. The modem emulation allows existing modem-based applications to make connections over IP networks. The incorporated RealPort makes it possible to establish a connection between the host and networked serial device, allowing software applications to work with networked device servers instead of requiring a host adapter. The device also features SNMP management, SSH for creating secure IP network, port buffering and support for Windows and various flavours of UNIX.

General Information

  • Product Type: Terminal Server
  • Product Series: TS
  • Brand Name: Digi
  • Manufacturer: Digi International
  • Product Model: TS 16
  • Product Name: PortServer TS 16 Terminal Server
  • Product Line: PortServer

Physical Characteristics

  • Height: 16.8"
  • Width: 6.6"
  • Depth: 1.6"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 7.05 lb
  • Color: Black


  • Number of Network (RJ-45) Ports: 1
  • Network (RJ-45): Yes


  • Certifications & Standards:
    • FCC Part 15, Class B
    • EN55022, Class B
    • AS3548
    • EN55024
    • EN 60950
    • EN 60950
    • UL 1950
    • CSA 22.2 No 950
    • VCCI
  • Additional Information:
    • Cost-effective network to serial connectivity
    • SSH v2 assures encrypted connections
    • Digi RealPort technology provides local serial port functionality
    • Connectivity Technology: Cable
    • Form Factor: External
    • Ports may be shared between multiple hosts running different operating systems
    • Easy IP assignment with DHCP, RARP and through a serial port
    • Supports RADIUS Authentication with SSH v2
    • Up to nine Telnet or Rlogin sessions per port
    • TCP and UDP Socket support
    • Password access
    • PPP (PAP & CHAP)
    • DPA-Remote for easy monitoring
    • Save/Restore configuration to host
    • Surge protection all ports
    • Full modem and hardware flow control
    • LED's for serial and Ethernet activity
    • RADIUS
    • SSH v2
    • Port Buffering up to 64 Kbps per port<br><br> Realport Software:
    • Local emulation of UNIX TTY and Microsoft COM ports
    • Transparent printing under UNIX
    • Single TCP/IP connection per 16 port block reduces Ethernet traffic and minimizes host CPU utilization<br><br> Digi Port Authority Remote:
    • Remote monitoring application
    • Ports Status
    • Ethernet Status

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC


  • Limited Warranty: 5 Year

Full specifications (PDF)
