Full specifications (PDF)
Media Type Supported:
Twisted Pair
Digi 301-1130-01 Data Networking
Part Number:
301-1130-01
Model:
AnywhereUSB

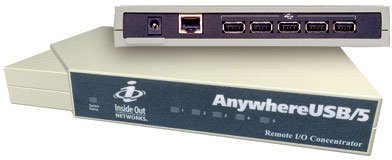

Digi AnywhereUSB Data Networking Model Overview
AnywhereUSB®/5 is a revolutionary network-enabled USB hub that breaks the five-meter USB cabling distance limitation. With USB Over IP® technology, this device allows peripheral devices to connect seamlessly over a Local Area Network (LAN) without requiring a locally-attached PC. Ideal for point-of-sale systems, industrial automation, and more, AnywhereUSB/5 supports centralized management and monitoring for ease of use. Retailers can relocate host PCs to secure locations, enhancing system redundancy and security while minimizing the footprint of point-of-sale stations.
Key Features
Specifications
Key Features
- Network-enabled USB hub connects easily to point-of-sale devices over a LAN
- Extends USB cabling distance beyond the traditional five meters
- System redundancy and security by relocating host PCs to safer areas
- Monitor devices remotely over a TCP/IP connection
- Same Plug-and-Play user experience as local USB ports
- Compatible with bulk or interrupt type USB devices
Specifications
- Model: AnywhereUSB/5
- Connectivity: RJ-45 Ethernet, 5 USB ports
- Data rates: Up to 12Mbps per USB port
- Power supply: 120/230 VAC, 5Vdc @ 3 Amps max
- Operating systems: Windows® XP, 2000, NT® 4.0, Server™ 2003
- Environmental: 32° to 140° F, 0% to 95% relative humidity
- Dimensions: 4.35 in x 7.2 in x 1.03 in
- Weight: 10 oz (283.49 g)
Digi 301-1130-01 Data Networking Overview
AnywhereUSB is a network-enabled USB hub. It utilizes patented USB Over IP technology to break the traditional five-meter USB cabling distance limitation, allowing peripheral devices to be anywhere on a Local Area Network (LAN) without a locally-attached host PC.
Media & Performance
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Standard:
10/100Base-TX
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
1
Number of USB Ports:
5
Physical Characteristics
Height:
1"
Width:
7.2"
Depth:
4.4"
Weight (Approximate):
10 oz
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0658911200349, 7426802610606
UPC:
658911200349
EAN:
0658911200349, 7426802610606
UNSPSC:
43222625
Get help from a Barcoding Expert!
The Digi 301-1130-01 Data Networking is also known as
DIG-301-1130-01
