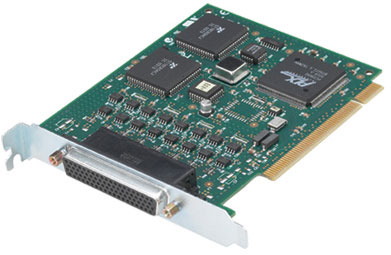

Digi ClassicBoard
The Digi ClassicBoard has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.
RS-232 and RS-422 models with PCI and ISA bus support for cabling flexibility
Digi's ClassicBoard provides an array of ISA and PCI based options to meet your serial expansion needs. They feature 4 or 8-Port RS-232 and RS-422 models for cabling flexibility, delivering an optimum throughput up to 460.8 Kbps. Every signal is safeguarded by built-in surge protection, which ensures that electrical interference, power surges or brown-outs do not interfere with the system operation. Installation is easy because there are no DIP switches or jumpers to set. They offer an ideal solution for connecting cash registers, print receipt devices, scanners and other peripheral devices in retail POS systems.
ClassicBoard Options
|
Digi ClassicBoard (77000771)
PCI (5V), Powered 5V Serial Ports, 4 RS-232 serial ports, DB-9, DB-25 or RJ45 connectors, Supports speeds up to 460.8 Kbps, 32-bit PCI slot, Full-duplex operation, Multi-strike surge suppression on every signal, 16C654 UARTs providing automatic flow control and 64-byte FIFO, Supports auto configuration of all PCI interrupts
|
|
|
|
Digi ClassicBoard (77000770)
PCI (5V), Powered 5V Serial Ports, 8 RS-232 serial ports, DB-9, DB-25 or RJ45 connectors, Supports speeds up to 460.8 Kbps, 32-bit PCI slot, Full-duplex operation, Multi-strike surge suppression on every signal, 16C654 UARTs providing automatic flow control and 64-byte FIFO, Supports auto configuration of all PCI interrupts
|
|
|
|
Digi ClassicBoard (77000578)
PCI (5V), 8 RS-232 serial ports, DB-9, DB-25 or RJ45 connectors, Supports speeds up to 460.8 Kbps, 32-bit PCI slot, Full-duplex operation, Multi-strike surge suppression on every signal, 16C654 UARTs providing automatic flow control and 64-byte FIFO, Supports auto configuration of all PCI interrupts
|
|
|
|
Digi ClassicBoard (77000576)
PCI (5V), 4 RS-232 serial ports, DB-9, DB-25 or RJ45 connectors, Supports speeds up to 460.8 Kbps, 32-bit PCI slot, Full-duplex operation, Multi-strike surge suppression on every signal, 16C654 UARTs providing automatic flow control and 64-byte FIFO, Supports auto configuration of all PCI interrupts
|
|
|
|
Digi ClassicBoard (77000434)
ISA, 8 RS-232 serial ports, DB-9, DB-25 or RJ45 connectors, Supports speeds up to 460.8 Kbps, 32-bit PCI slot, Full-duplex operation, Multi-strike surge suppression on every signal, 16C654 UARTs providing automatic flow control and 64-byte FIFO, Supports auto configuration of all PCI interrupts
|
|
