Digi AccelePort Xp Data Networking
Digi AccelePort Xp -

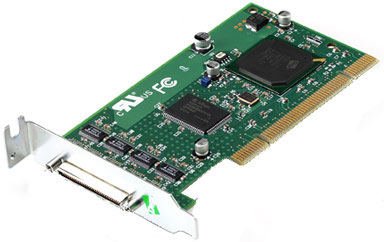

The Digi AccelePort Xp is a Universal PCI card with up to 16 high-speed RS-232 serial ports. The card features application specific integrated circuit (ASIC), which is built around an 80 Mhz RISC processor, provides wide application flexibility and superior CPU utilization. It communicates at 921.6 Kbps, bi-directionally, on each and every serial port. It is shipped with PortAssist Manager, Digi's web browser-based management and reporting software for basic diagnostics, enhanced network administration and monitoring. It also incorporates a SCSI HD-68 connector and is available with a wide array of DB-9, DB-25 and RJ-45 connector options that include on-board connectors, fan-out cables, external I/O boxes and rack-mountable chassis.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
Please Call
Get help from a Barcoding Expert!
Digi AccelePort Xp Data Networking Options
-
Digi 77000706 Data Networking
Universal PCI card (3.3V & 5V), 4 RS-232 serial ports, Single HD-68 female connector, DB-25,RJ-45, DB-9 connector box with HD-68M 6-foot connector cable, 80 Mhz RISC processor, 921.6 Kbps throughput, 15 kV surge protection on all signals -
Digi 70001549 Data Networking
AccelePort Xp Universal PCI (3.3V and 5V, 4-Port RS-232 with DB-25 Male Cable)
Digi AccelePort Xp Data Networking Model Overview
The AccelePort Xp Multiport Serial Card offers exceptional connectivity solutions for all your serial communication needs. With support for up to 16 EIA-232 connections and robust PCI bus compatibility, this versatile card excels in performance and reliability. Whether in retail point-of-sale systems, industrial control environments, or office automation, the AccelePort Xp delivers seamless, bi-directional data transmissions up to 921.6 Kbps on every port. Its compact design, advanced surge protection, and comprehensive management software make installation and maintenance straightforward, ensuring robust performance across a wide range of applications.
Key features:
Specifications:
Key features:
- Two to 16 EIA-232 connections
- Universal PCI bus slot support - 3.3V and 5V
- Low profile options for four- and eight-port models
- Full modem control with hardware/software flow control
- Surge protection on all signals
- PortAssistⓇ Manager for diagnostics and network monitoring
Specifications:
- Compliance: PCI 2.3 compliant, PCI-X compatible
- Data Speed: Up to 921.6 Kbps bi-directionally
- Operating Temperature: 10°C to 55°C (50°F to 131°F)
- Storage Temperature: -25°C to 85°C (-13°F to 185°F)
- Humidity: 5% to 90%
- Power Requirements: +5V +/-5%, +12V +/-5%
- Dimensions: Width 0.725" (1.84 cm), Weight 6 oz. (less than 0.19 kg)
