Digi AccelePort Xem Data Networking

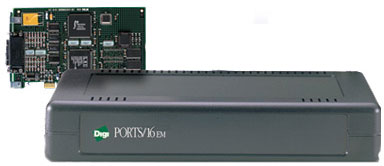

Digi AccelePort Xem  -  The Digi AccelePort Xem is an intelligent and modular serial communication solution expandable up to 64 ports from a single host slot. The device features a host adapter card with an on-board RISC-based processor that delivers up to 115.2 Kbps performances per port. The system also provides access to eight or 16 serial ports. It offers a fast, reliable way to connect terminals, printers, modems, instruments and other serial peripherals, making it ideal for applications such as data acquisition, office/factory automation, and industrial process control.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Please Call
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

Digi AccelePort Xem Data Networking
Digi AccelePort Xem Data Networking

Digi AccelePort Xem Data Networking Options

Full specifications (PDF)

Digi AccelePort Xem Data Networking Model Overview

The AccelePort Xem is the ultimate solution for high-performance serial computing, designed to seamlessly expand your connectivity needs from a single host slot. Perfect for small to mid-sized installations, this modular system supports up to 64 EIA-232 or EIA-422 serial ports, ensuring flexibility as your business grows. With lightning-fast data transfer rates of up to 115.2 Kbps, connecting terminals, modems, printers, and various serial devices has never been easier. Backed by robust technical support and an extensive range of operating system compatibility, the AccelePort Xem is your go-to choice for efficient and reliable serial communication.


Key Features:

  • Expandable up to 64 ports from a single host slot.
  • Compatible with Universal PCI (3.3V & 5V) and ISA platforms.
  • Modular design with eight and 16-port concentrator boxes for incremental expansion.
  • High-speed data transfer rates of up to 115.2 Kbps per port.
  • Optimized for connecting modems, terminals, and industrial devices.
  • 1U 19-inch rack mount option for space-saving installation.

Specifications:

  • Host Card Compatibility: Universal PCI (3.3V & 5V) and ISA platforms.
  • Data Transfer Rate: Up to 115.2 Kbps per port.
  • Support for: Up to four Digi PORTS modules for a maximum of 64 ports.
  • Environmental:
    • Ambient Temperature: 50°F to 131°F (10°C to 55°C)
    • Storage Temperature: -13°F to 125°F (-25°C to 85°C)
    • Humidity: 5% to 90% (non-condensing)
  • Regulatory Approvals: FCC Part 15, Class B; UL 1950; EN55022, Class B.
  • Power Requirements:
    • PCI Host Card: +5V +/-5% 0.43 Amps typical.
    • ISA Host Card: +5V +/-5% 1.75 Amps typical.
