Processor Speed:
100 MHz
Dialogic 306-386 Accessory
Part Number:
306-386
Model:
Parts
Dialogic Parts Accessory Model Overview
Products and parts from Dialogic.
Dialogic 306-386 Accessory Overview

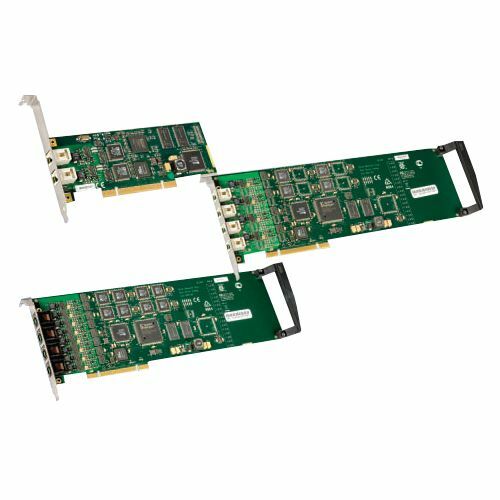

Dialogic Diva Analog boards ("Diva Analog boards") are available in 2-port, 4-port, and 8-port variants, offering standard RJ-11 interfaces to connect to public and private switching systems via analog trunk interfaces. Diva Analog boards provide powerful onboard CPU and Digital Signaling Processor (DSP) resources one dedicated to each communication channel. Thanks to providing high-performance media processing functions such as V.90 data modem, V.34 fax receiver and transmitter, Voice over IP (VoIP) streaming, voice compression, and echo cancellation onboard, the Diva Analog boards enhance overall system performance and lower implementation costs.
Processor & Chipset
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Network & Communication
Carrier Supported:
T-carrier/E-carrier/ISDN
Network Standard:
- E1
- T1
Management & Protocols
Voice Codec:
- G.711
- G.726
- G.729
- GSM
Interfaces/Ports
Host Interface:
PCI Express
Network (RJ-45):
Yes
Phone Line (RJ-11):
Yes
Number of Phone Line (RJ-11) Ports:
2
Physical Characteristics
Form Factor:
Plug-in Card
Miscellaneous
Additional Information:
- DTMF detection, generation, clamping and filtering
- Cutting-Edge Hardware Design
- Universal, Multifunction Platform
- Superior Scalability and Flexibility
- Voice Activity Detection
- Loopstart signaling
- Silence detection
- Plug and Play
Item Numbers
GTIN:
0802180029570
UPC:
802180029570
EAN:
0802180029570
UNSPSC:
43201547
Get help from a Barcoding Expert!
The Dialogic 306-386 Accessory is also known as
ITL-306386
