Denso 496800-020X Barcode Scanner

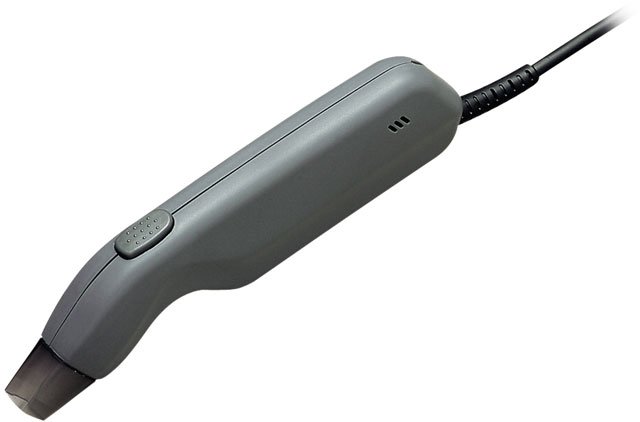

Denso QS20P Barcode Scanner Model Overview

The Denso QS20P is a very compact & light weight, 2D code scanner. It only weighs 70g and is designed for maximum comfort for extended use. Able to read minimum 0.1mm, which means readable of a few mm square QR Code.

Denso 496800-020X Barcode Scanner Overview

The QS20H Bar Code Reader is a 2-D symbol scanner with integrated decoder which can be used in a wide range of applications, from invoice management in offices to shipping/receiving control in factories. A multiple symbology scanner, the QS20H Bar Code Reader has excellent reading performance and operability which enable you to design new powerful systems.

Detailed Specs

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

QR Code
Micro QR Code
PDF-417 2D Barcode
MaxiCode
DataMatrix
UPC-A
UPC-E
EAN-13
EAN-8
Code 39
NW7
ITF
Code 128

Light Source:

LED

Maximum Scan Resolution:

9.80 mil

Depth of Field:

40mm - [email protected] - QR Code
40mm - 150mm@13mil - QR Code
40mm - [email protected] - QR Code
50mm - [email protected]
50mm - [email protected]
50mm - 210mm@13mil

Scan Pattern:

Omni-directional

Interfaces/Ports

Host Interface:

Serial

Power Description

Input Voltage:

10 V DC

Power Source:

AC Adapter

Power Supply Included:

Yes

Physical Characteristics

Form Factor:

Handheld

Miscellaneous

Package Contents:

QS20H Bar Code Reader
Power Supply

Additional Information:

USB Cable separate

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Get help from a Barcoding Expert!

The Denso 496800-020X Barcode Scanner is also known as 496800020X

Denso 496800-020X Barcode Scanner

Need a different version? See all Denso QS20P Barcode Scanners
