AI-powered:
Yes
Dell XY56V Desktop PC
Part Number:
XY56V
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

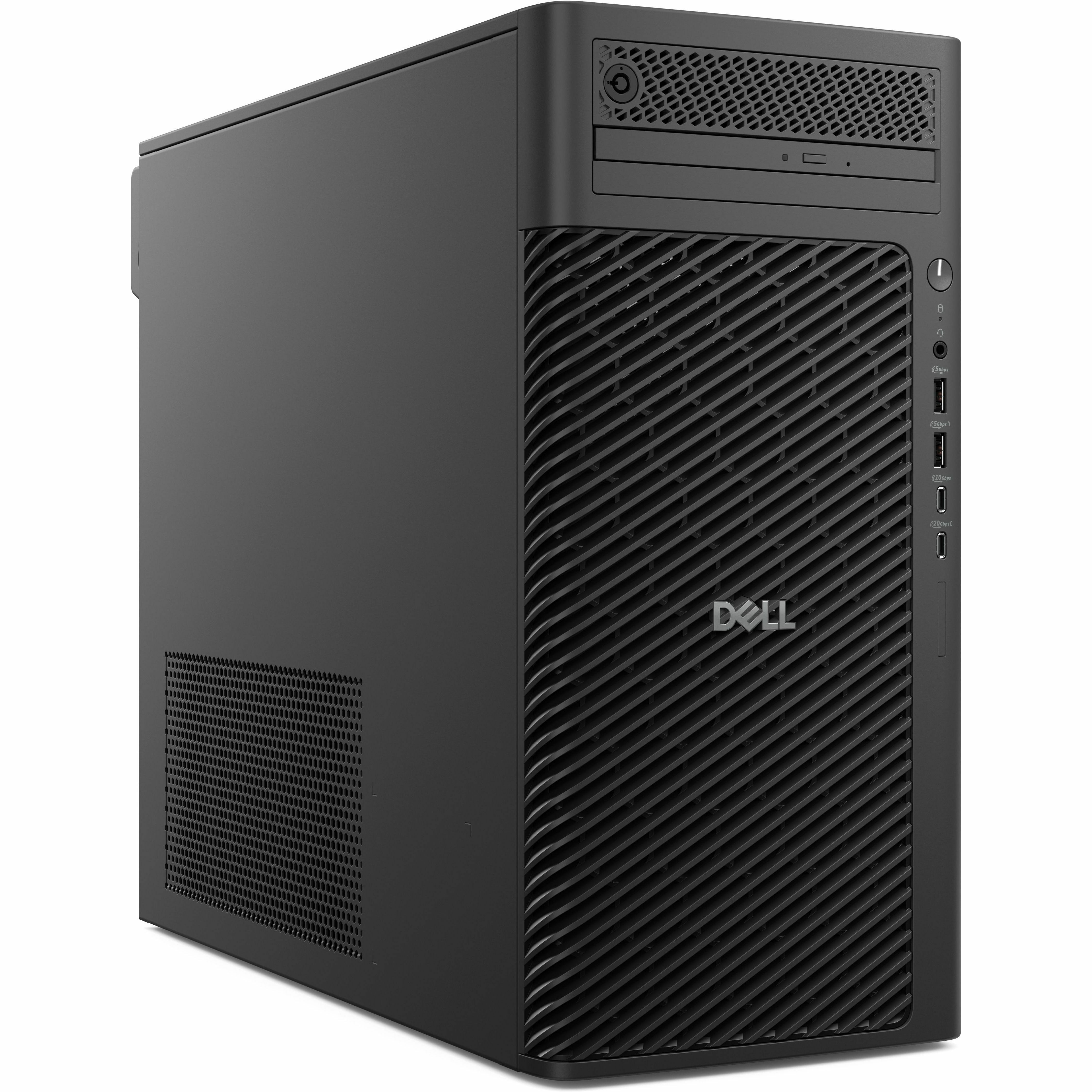

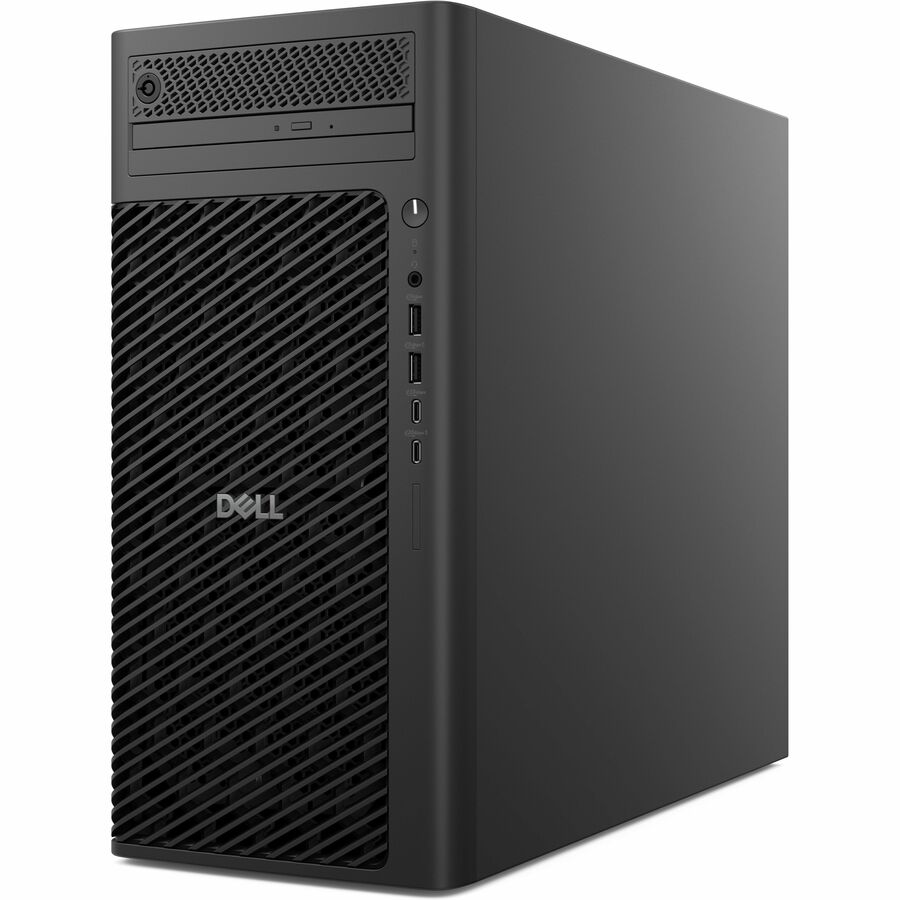

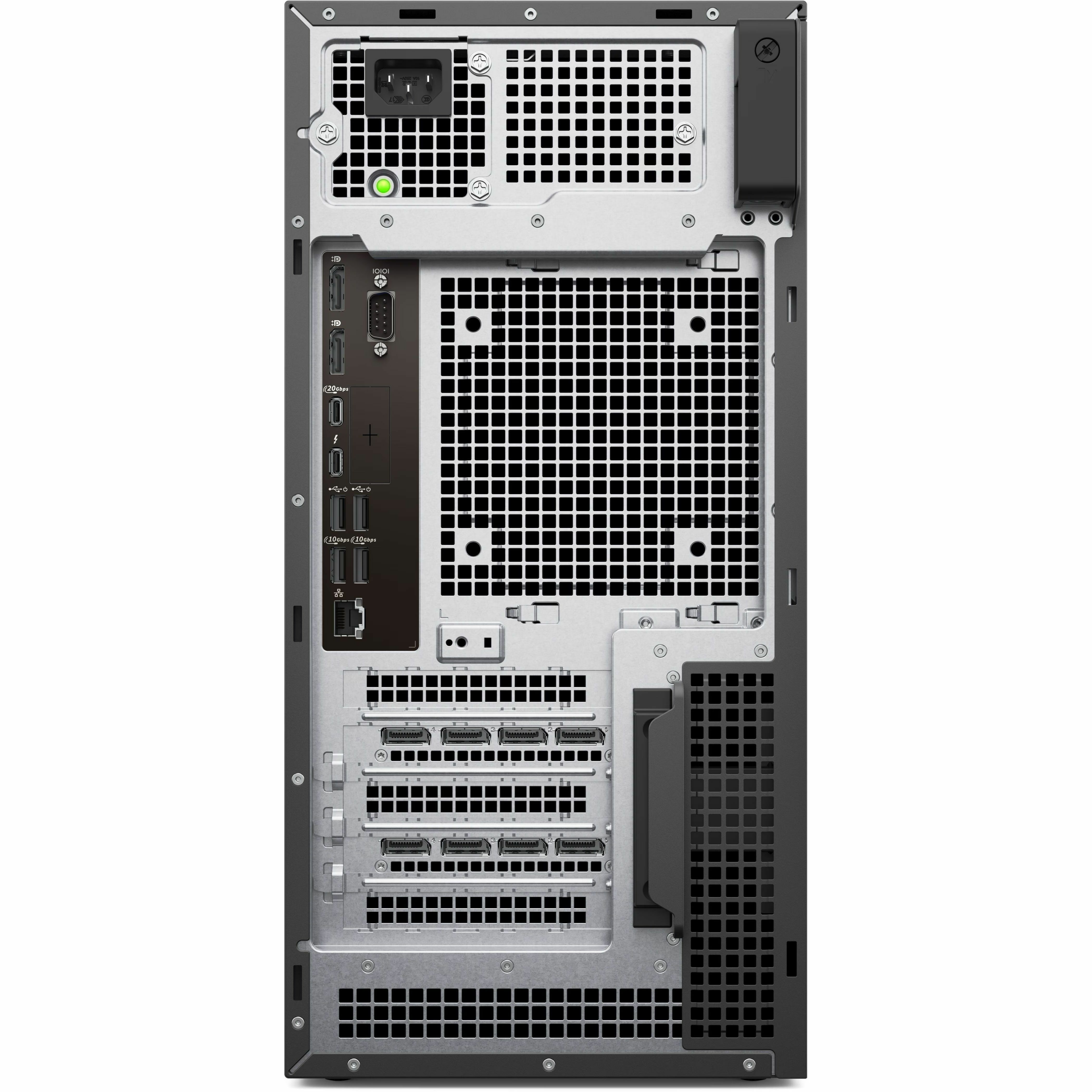

Dell XY56V Desktop PC Overview
Dell Pro Max Tower T2 Desktop
Experience unparalleled speed with the Dell's fastest single-threaded performance, now in a scalable 32L design.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 7
Processor Model:
265
Processor Core:
Icosa-core (20 Core)
Processor Threads:
20
Processor Speed:
2.40 GHz
Maximum Turbo Speed:
5.30 GHz
vPro Technology:
Yes
NPU Manufacturer:
Intel
NPU Name:
AI Boost
NPU Performance:
13 TOPS
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
128 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
2 x 16GB
Number of Occupied Memory Slots:
2
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0 x4
SSD Form Factor:
M.2
Optical Drive Type:
DVD-Writer
Optical Media Supported:
DVD±R/±RW
Display & Graphics
Graphics Controller Manufacturer:
NVIDIA
Graphics Controller Model:
RTX 2000 ADA
Graphics Memory Capacity:
Up to 16 GB
Graphics Memory Technology:
GDDR6
Graphics Memory Accessibility:
Dedicated
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
9
Number of USB 2.0 Ports (Rear):
2
Number of USB 3.2 Gen 1 Ports:
2
Number of USB 3.2 Gen 2 Ports:
2
Number of USB 3.2 Gen 2x2 Type-C Ports:
2
USB Type-C (Front):
Yes
USB Type-C Detail:
1 x USB 3.2 Gen 2 (10Gbps) Type-C port
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
2
DisplayPort (Rear):
Yes
Mini DisplayPorts Quantity:
4
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 Optional port (TBT4 (40Gbps) + USB-C (10Gbps) data , DP alt-mode Type-C (10Gbps), HDMI 2.1, DP 2.1, 5Gbe LAN, 2x USB-A 3.2 (10Gbps), VGA, 5GbE Optical)
- 1 SD 7.0 Express-card slot (Optional)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
500 W
Physical Characteristics
Cooler Type:
Air Cooler
Form Factor:
Tower
Height:
15.2"
Width:
7.4"
Depth:
17.2"
Weight (Approximate):
50.71 lb
Miscellaneous
Package Contents:
- Pro Max Tower T2 FCT2250
- 3.5 HDD/ODD Y Type Power Cable
- Quick Setup Guide
- Power Cord C13 (US 125V, 15A)
- 4 mDP to DP adapters
Systems Management:
Intel vPro Active Management Tech
Energy Star:
Yes
Country of Origin:
Mexico
TAA Compliant:
No
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116490890
UPC:
884116490890
EAN:
0884116490890
UNSPSC:
43211507
Frequently Asked Questions
What are the key specifications of the Dell XY56V Desktop PC?
The Dell XY56V is a professional-grade desktop featuring an Intel Core Ultra 7 265 processor with vPro Technology, 32 GB of RAM, and a 512 GB SSD for fast performance. It includes an NVIDIA RTX 2000 ADA with 16 GB GDDR6 graphics memory, Windows 11 Pro operating system, and a 500 W power supply in a tower form factor. We offer this system as a reliable solution for demanding warehouse and logistics applications requiring robust computing power.
What connectivity options does the Dell XY56V provide?
The Dell XY56V offers comprehensive connectivity including USB/eSATA combo ports, HDMI output, RJ-45 network connector, stereo headphone/microphone combo jack, and optional USB 3.0 ports via media bay modules. It also features a SmartCard reader and optional contactless SmartCard reader for secure authentication in enterprise environments. Contact us today to discuss your specific connectivity requirements.
Is the Dell XY56V suitable for secure warehouse management environments?
Yes, the Dell XY56V includes multiple security features including a SmartCard reader, optional fingerprint reader, ControlVault™ technology, TPM 1.2, and cable lock slots for physical security. These features make it well-suited for logistics operations requiring secure data handling and user authentication. Visit barcodesinc.com to learn how we can configure this system for your security requirements.
What are the expandability options for the Dell XY56V?
The Dell XY56V supports memory expansion through dual DDR3 SDRAM slots and includes an Express Card 54 slot and memory card reader for additional storage flexibility. The system also features optional media bay modules including DVD-ROM, DVD+/-RW, USB 3.0 modules, and secondary hard drive options to customize the system for your specific needs. We can help you configure the right expansion setup for your warehouse operations.
Does the Dell XY56V include graphics capabilities for demanding applications?
The Dell XY56V is equipped with an NVIDIA RTX 2000 ADA discrete graphics card with 16 GB GDDR6 memory, providing excellent performance for graphics-intensive warehouse management software, visualization tools, and data analysis applications. This professional-grade GPU ensures smooth operation even with complex logistics management interfaces and real-time tracking systems. Contact us today to discuss your graphics and performance requirements.
What management and remote administration features does the Dell XY56V offer?
The Dell XY56V includes Intel vPro Technology with advanced management features (optional, requires Intel WiFi Link WLAN), enabling remote administration, provisioning, and monitoring capabilities essential for distributed warehouse and logistics environments. This allows IT teams to manage systems efficiently across multiple locations without physical access. Visit barcodesinc.com to learn how we support enterprise IT management for your operations.
