Dell XXWC9 Workstation PC
Part Number:
XXWC9
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

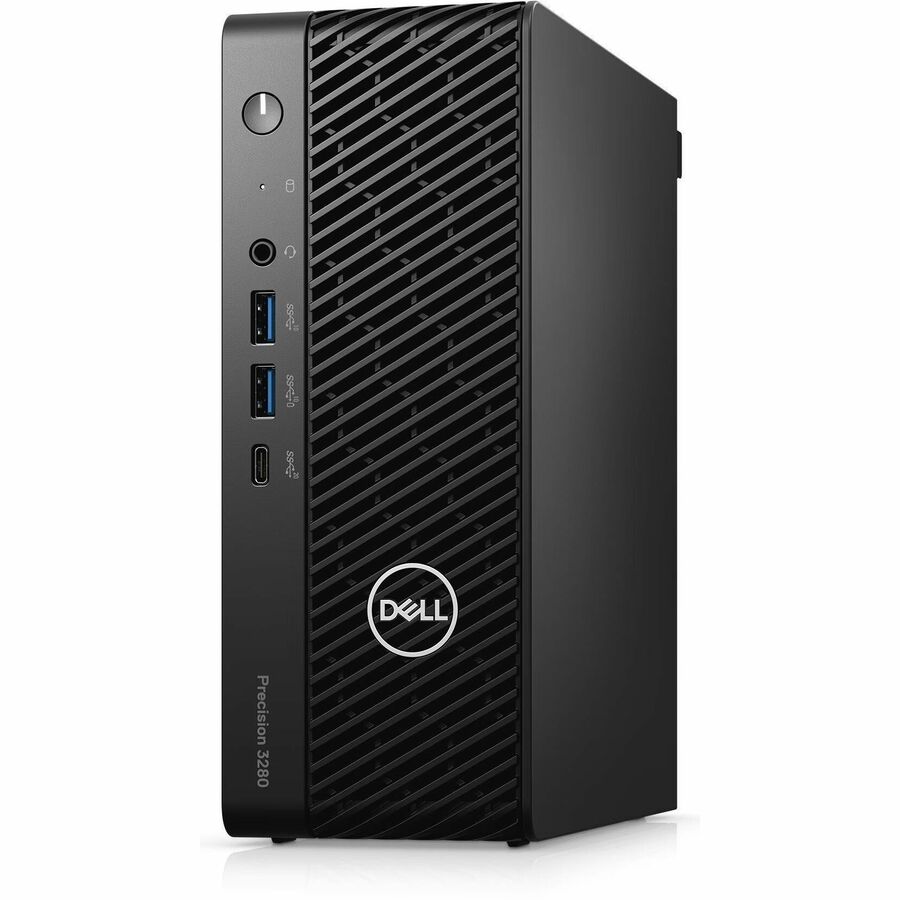

Dell XXWC9 Workstation PC Overview
Big power, compact size.
Ultra-small form factor that delivers uncompromised performance for tight workspaces and the Edge. The world's smallest workstation that supports Tensor Core GPUs.
Technical Information
Processor
Processor Type:
Core i7
Processor Generation:
14th Gen
Processor Model:
i7-14700
Processor Core:
Icosa-core (20 Core)
Processor Threads:
28
Processor Speed:
2.10 GHz
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Total Number of Memory Slots:
2
Error Checking:
Non-ECC
Memory Configuration:
2 x 8GB
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
Controllers
Controller Type:
- NVMe
- Serial ATA
RAID Supported:
No
Display & Graphics
VR Ready:
Yes
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Ethernet
Wireless LAN:
No
Interfaces/Ports
Total Number of USB Ports:
8
Number of USB 3.2 Gen 1 Ports:
2
Number of USB 3.2 Gen 2 Ports:
5
USB Type-C:
Yes
USB Type-C Detail:
1 USB 3.2 Type C (20Gbps)
DisplayPort:
Yes
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs:
3
Optional Ports:
1 Optional port
Details regarding optional ports aggregated from the information available for this product's family/series
Input Devices
Keyboard Localization:
English (US)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Brazilian Portuguese/French/Spanish
Power Description
Maximum Power Supply Wattage:
280 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Compact
Height:
8.1"
Width:
3.1"
Depth:
7"
Weight (Approximate):
5.60 lb
Miscellaneous
Package Contents:
- Precision 3280 Compact
- Power Adapter
- Keyboard
- Mouse
- Safety/Environment and Regulatory Guide (English/French Multi-language)
- Quick Setup Guide, Precision 3280
- Power Cord
Energy Star:
Yes
Country of Origin:
Mexico
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- TCO Certified 9.0
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Energy Efficiency Certification:
ENERGY STAR 8.0
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116472025
UPC:
884116472025
EAN:
0884116472025
UNSPSC:
56112002
Frequently Asked Questions
What processor does the Dell XXWC9 Precision 3280 Workstation use?
The Dell XXWC9 features a 14th Generation Intel Core i7-14700 processor with vPro Technology, delivering enterprise-grade performance and advanced management capabilities. This processor is ideal for demanding workloads in logistics, warehouse management, and data-intensive applications. Contact us today to verify current processor availability and specifications.
Is the Dell XXWC9 suitable for warehouse and logistics operations?
Yes, the Dell Precision 3280 is well-suited for warehouse and logistics environments with its compact design, Windows 11 Pro operating system, and robust connectivity options including Ethernet. The workstation supports 16 GB of memory and 512 GB NVMe SSD storage, providing reliable performance for inventory management, RFID integration, and barcode scanning applications. Visit barcodesinc.com to explore how this workstation integrates with your AIDC infrastructure.
What storage and memory options are available on the Dell XXWC9?
The Dell XXWC9 comes standard with 16 GB of memory and 512 GB NVMe SSD storage, supporting fast data access and application responsiveness. The system supports multiple storage configurations and memory expansion options to meet varying operational demands. Contact us today for details on custom configurations and upgrade paths available from us.
What connectivity options does the Dell XXWC9 Workstation provide?
The Dell XXWC9 includes Ethernet connectivity via RJ-45 network connector, USB ports, and Serial DB9 connectivity for legacy device integration with barcode scanners and RFID readers. The compact form factor and multiple I/O options make it ideal for integration into warehouse automation systems and mobile computing environments. We offer this workstation with full technical support for AIDC connectivity—visit barcodesinc.com for integration guidance.
Is the Dell XXWC9 compatible with enterprise management and security features?
Yes, the Dell XXWC9 includes Intel vPro Technology for advanced remote management, TPM 1.2 security, and optional Smart Card Reader support, meeting enterprise security and compliance requirements. These features enable IT teams to manage and secure systems across distributed warehouse and logistics operations. We can help you configure security settings aligned with your organizational policies—contact us today.
What operating system comes with the Dell XXWC9 Workstation?
The Dell XXWC9 ships with Windows 11 Pro, providing modern operating system capabilities, enhanced security features, and compatibility with enterprise applications used in warehouse management and logistics. Windows 11 Pro supports multi-user scenarios and integrates seamlessly with barcode scanning, RFID, and mobile computing solutions. Available from us with full deployment and support—visit barcodesinc.com to order.
