Storage Capacity:
450 GB

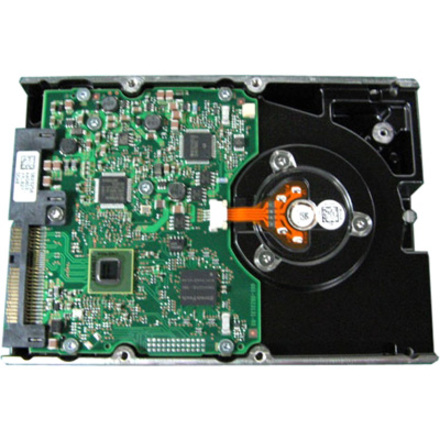

Dell XX517 Drive
Part Number:
XX517
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell XX517 Drive Overview
To buy the right hard drive it is important that you know the interface type of your computer. The interface type determines the compatibility to a system.
Common interface types today are IDE (also known as PATA), SATA, or SCSI. SCSI interface type may come in different pin configurations.
Hard drives are system specific for Laptops. However, you need to know the interface type for desktops and servers to choose the right product. Hence we recommend that you use the Service Tag feature in the Parts For Your Dell tool to choose the right hard drive for your desktop or server. For Laptops, you can either use System Drill Down or Service Tag feature.
Speed and Capacity determine how much data can be stored and how fast the data can be accessed. The higher the capacity, the more data can be stored.
Similarly, the higher the speed, the faster the computer can access or write data to/from the hard drive.
Technical Information
Drive Performance
Spindle Speed (rpm):
15000
Buffer:
16 MB
Average Seek Time:
4.50 ms
Interfaces/Ports
Drive Interface:
SAS
Physical Characteristics
Drive Type:
Internal
Form Factor:
3.5"
Height:
1"
Width:
4"
Depth:
5.8"
Miscellaneous
Compatibility:
Dell PowerEdge Servers:
- 1900
- 1950 III
- 2900 III
- 2950 III
- 2970
- 6850
- 6950
- 840
- 860
- R200
- R300
- R900
- R905
- SC1430
- SC1435
- SC440
- T100
- T105
- T300
Device Supported:
Server
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
90 Day
Item Numbers
GTIN:
0700900353908, 5704327957782
UPC:
700900353908
EAN:
0700900353908, 5704327957782
UNSPSC:
43201803
