Dell XD7H4 Desktop PC
Part Number:
XD7H4
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

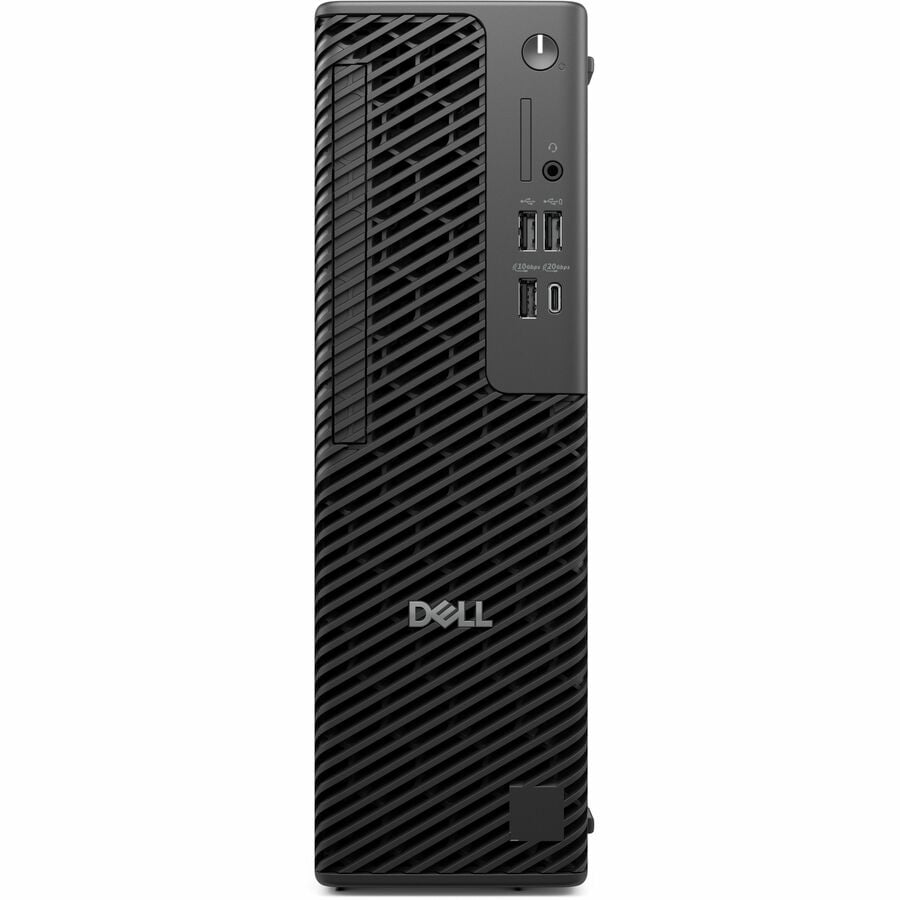

Dell XD7H4 Desktop PC Overview
Dell Pro Max Slim Desktop
Experience unparalleled speed with incredibly fast CPU and GPU performance, now in an 8.5L design.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 7
Processor Model:
265
Processor Core:
Icosa-core (20 Core)
Processor Threads:
20
Processor Speed:
2.40 GHz
Maximum Turbo Speed:
5.30 GHz
NPU Manufacturer:
Intel
NPU Name:
AI Boost
NPU Performance:
13 TOPS
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
128 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
1 x 16GB
Number of Occupied Memory Slots:
1
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Display & Graphics
Graphics Controller Manufacturer:
NVIDIA
Graphics Controller Model:
Quadro A1000
Graphics Memory Capacity:
Up to 8 GB
Graphics Memory Technology:
GDDR6
Graphics Memory Accessibility:
Dedicated
Network & Communication
Ethernet Technology:
Ethernet
Wireless LAN:
No

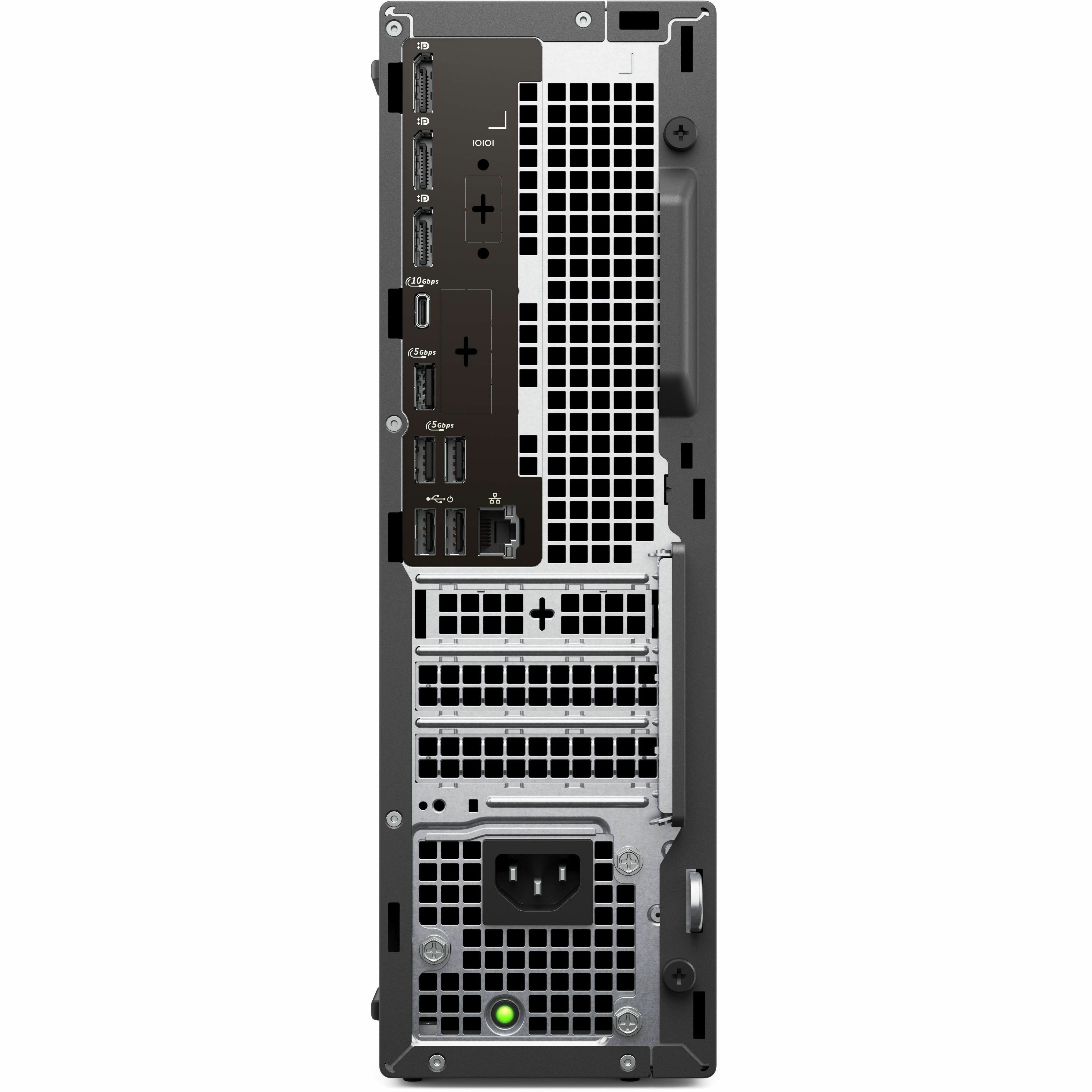

Interfaces/Ports
Total Number of USB Ports:
10
Number of USB 2.0 Ports (Front):
2
Number of USB 2.0 Ports (Rear):
2
Number of USB 3.2 Gen 1 Ports:
3
Number of USB 3.2 Gen 2 Ports:
1
Number of USB 3.2 Gen 2x2 Type-C Ports:
1
USB Type-C (Rear):
Yes
USB Type-C Detail:
1 USB 3.2 Gen 2 Type-C® (10Gbps) port
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
3
DisplayPort (Rear):
Yes
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 Optional port (VGA, HDMI 2.1 FRL, DisplayPort™ 2.1 UHBR20, USB 3.2 Gen 2 (10Gbps), USB 3.2 Gen 2 (10Gbps) Type-C®with DisplayPort™ Alt Mode port, Thunderbolt™ 4 port, Type-C®Data only Gen 2x1 (10Gbps) port, LC Fiber optic port)
- 1 Legacy serial port
- 1 RJ45 (5GbE) Ethernet port
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
360 W
Physical Characteristics
Cooler Type:
Air Cooler
Form Factor:
Slim PC
Height:
11.9"
Width:
3.7"
Depth:
11.5"
Weight (Approximate):
8.75 lb
Miscellaneous
Package Contents:
- Pro Max FCS1250 Desktop Computer
- Power Cord
- 4 x mDP to DP Adapters
- Quick Setup Guide
Systems Management:
Intel vPro Standard Management
Energy Star:
Yes
Country of Origin:
Mexico
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116490739
UPC:
884116490739
EAN:
0884116490739
UNSPSC:
43211507
Frequently Asked Questions
What are the memory and storage specifications for the Dell XD7H4?
The Dell XD7H4 comes configured with 16 GB of memory and a 512 GB SSD for fast boot and application performance. The system supports DDR3 SDRAM at 1333 MHz or 1600 MHz across 2 slots, allowing for future memory upgrades up to 8GB per DIMM if needed for demanding warehouse management or logistics applications.
Is the Dell XD7H4 suitable for warehouse and logistics environments?
Yes, the Dell XD7H4 is well-suited for warehouse and logistics operations with its Windows 11 Pro operating system and robust hardware configuration. The system includes NVIDIA Quadro A1000 graphics for reliable performance in data-intensive applications, and we offer it as part of our complete AIDC solutions for enterprise environments.
What graphics capabilities does the Dell XD7H4 provide?
The Dell XD7H4 features an NVIDIA Quadro A1000 with 8 GB GDDR6 memory, designed for professional workloads and multitasking in demanding business environments. This discrete graphics solution ensures smooth performance when running warehouse management software, inventory systems, and other enterprise applications simultaneously.
What connectivity options are available on the Dell XD7H4?
The Dell XD7H4 provides comprehensive connectivity including HDMI, USB ports, network connector (RJ-45), and stereo headphone/microphone combo jack for integration with barcode scanners, label printers, and other AIDC devices. Optional USB 3.0 modules and legacy I/O adapters are available to support specialized peripheral connections required in logistics operations.
Does the Dell XD7H4 support security features for enterprise environments?
Yes, the Dell XD7H4 includes enterprise-grade security features such as TPM 1.2, optional SmartCard readers, and optional fingerprint reader capabilities for user authentication. These security measures, combined with Windows 11 Pro, make it suitable for IT procurement in secure warehouse and logistics facilities.
What is the power consumption and cooling specification for the Dell XD7H4?
The Dell XD7H4 features a 360 W power supply, providing sufficient power for the Intel Core Ultra 7 265 processor, NVIDIA Quadro A1000 graphics, and all connected peripherals. Contact us today to discuss power requirements and cooling solutions for your specific warehouse or logistics deployment.
