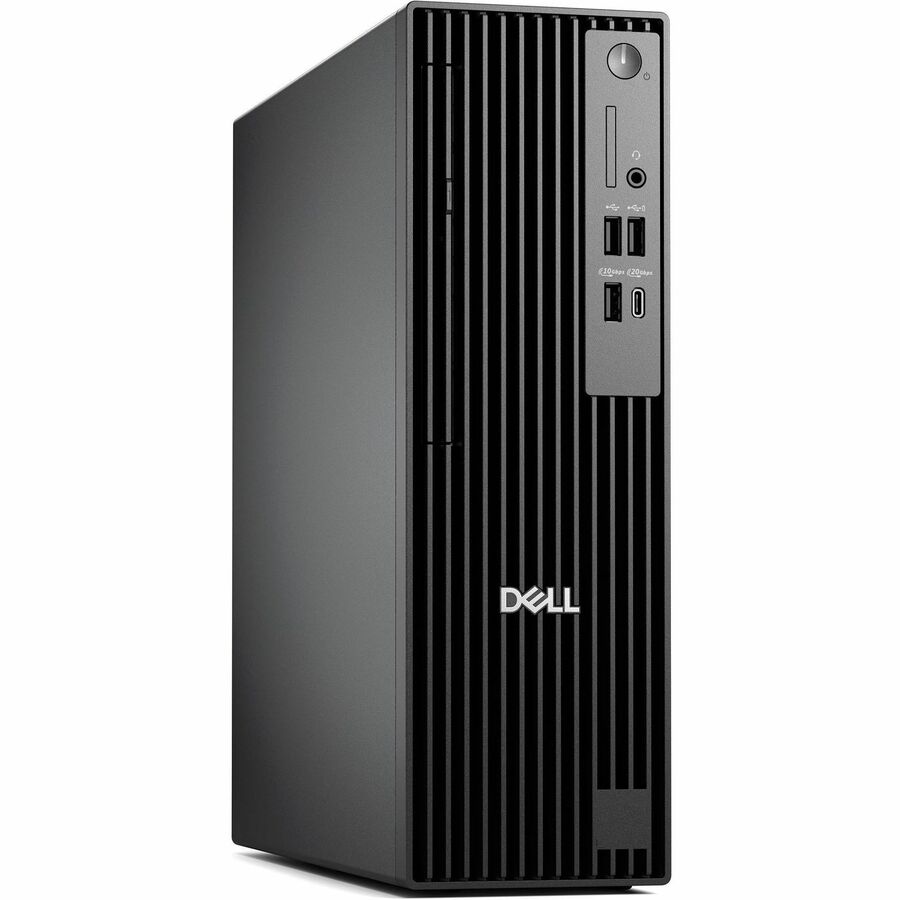

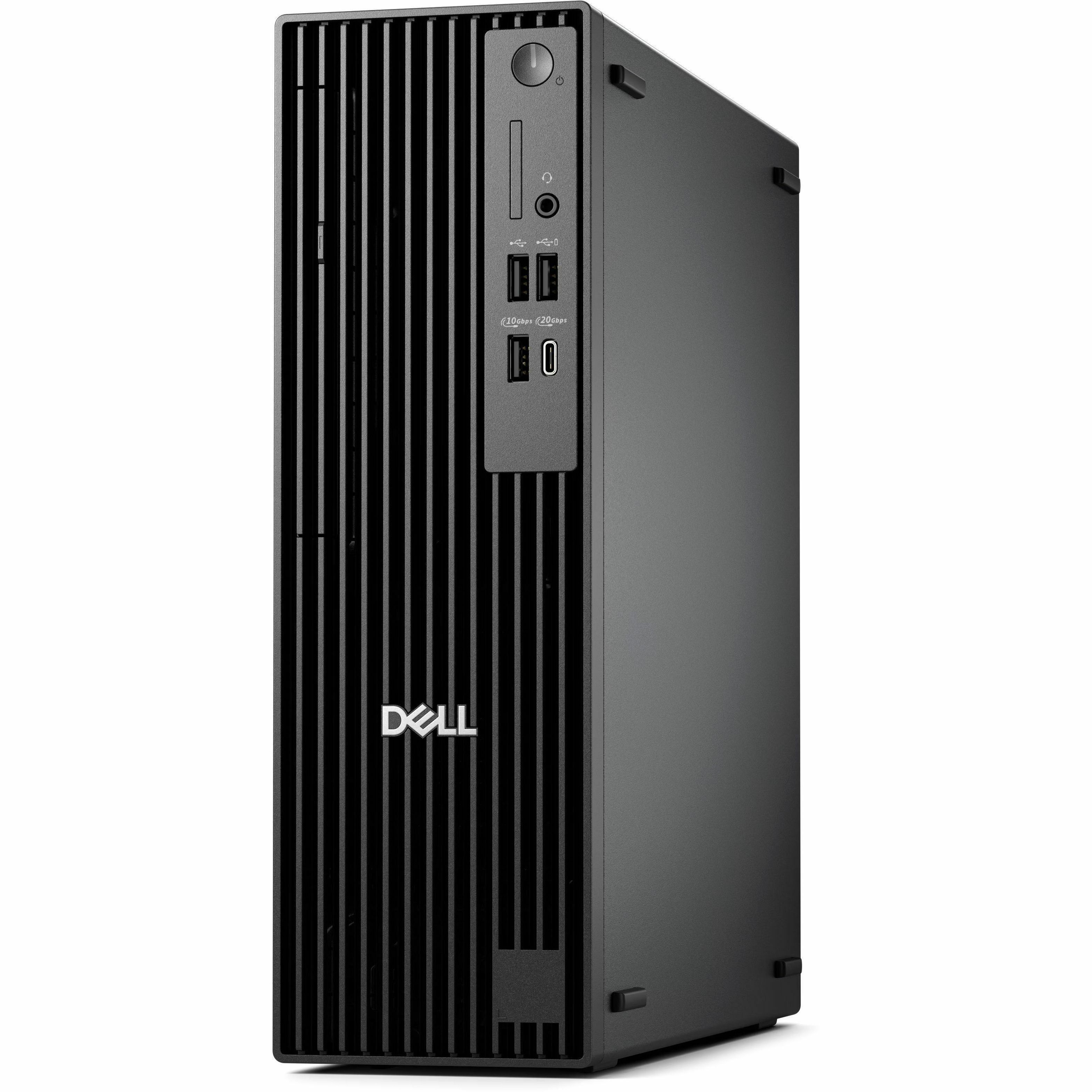

Dell W7CHW Desktop PC
Part Number:
W7CHW
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell W7CHW Desktop PC Overview
Space-saving with AI performance
Unlock productivity with this compact AI PC with dedicated NPU. Featuring Intel®Core™ Ultra desktop processors (Series 2) and up to 128GB DDR5 memory.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 7
Processor Model:
265
Processor Core:
Icosa-core (20 Core)
Processor Threads:
20
Processor Speed:
2.40 GHz
Maximum Turbo Speed:
5.30 GHz
vPro Technology:
No
NPU Manufacturer:
Intel
NPU Name:
AI Boost
NPU Performance:
13 TOPS
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
128 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
1 x 16GB
Number of Occupied Memory Slots:
1
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
256 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
No
Interfaces/Ports
Total Number of USB Ports:
10
Number of USB 2.0 Ports (Front):
2
Number of USB 2.0 Ports (Rear):
2
Number of USB 3.2 Gen 1 Ports:
3
Number of USB 3.2 Gen 2 Ports:
2
Number of USB 3.2 Gen 2x2 Type-C Ports:
1
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
3
DisplayPort (Rear):
Yes
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 Serial port (optional)
Rear (expansion, these are mutually exclusive options):
- 1 VGA port (optional)
- 1 HDMI 2.1 (FRL) port (optional)
- 1 DisplayPort™ 2.1 (UHBR20) port (optional)
- 2 USB 3.2 Gen 2 (10 Gbps) ports (optional)
- 1 USB 3.2 Gen 2 (10 Gbps) Type-C®with DisplayPort™ Alt Mode port (optional)
- 1 Thunderbolt™ 4 port + 1 Type-C Data only Gen2*1 10 Gbps port (optional)
- 1 LC (5GbE) Fiber optic port (optional)
- 1 RJ45 (5GbE) Ethernet port (optional)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
260 W
Physical Characteristics
Color Family:
Black
Product Color:
Standard Black
Form Factor:
Slim PC
Height:
11.9"
Width:
3.7"
Depth:
11.5"
Weight (Approximate):
14.51 lb
Miscellaneous
Package Contents:
- Pro Slim Plus QBS1250
- Quick Start Guide
- Power Cord
- Documentation
Systems Management:
No vPro Support
Features:
- Tool-less Access
- Security Slot
Energy Star:
Yes
Country of Origin:
Mexico
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116489122
UPC:
884116489122
EAN:
0884116489122
UNSPSC:
43211507
Frequently Asked Questions
What are the key specifications of the Dell W7CHW Desktop PC?
The Dell Pro Slim Plus QBS1250 features an Intel Core Ultra 7 265 processor, 16 GB of DDR5 SDRAM memory, and a 256 GB SSD for fast storage and boot times. This slim desktop runs Windows 11 Pro and includes a 260 W power supply, making it suitable for professional office and warehouse management environments. We offer this model as part of our comprehensive Dell desktop lineup available from barcodesinc.com.
Is the Dell W7CHW compatible with warehouse management software?
Yes, the Dell W7CHW Desktop PC running Windows 11 Pro is fully compatible with enterprise warehouse management systems and AIDC software solutions. The Intel Core Ultra 7 265 processor and 16 GB DDR5 memory provide sufficient performance for running logistics and inventory management applications. Contact us today to discuss integration with your specific warehouse management platform.
What connectivity options does the Dell W7CHW provide?
The Dell W7CHW includes multiple connectivity options including USB ports, HDMI output, and network connectivity via RJ-45 Ethernet connector, making it suitable for connecting barcode scanners, label printers, and other AIDC devices. The slim form factor doesn't compromise on expandability, allowing you to integrate the peripherals your logistics operation requires. Visit barcodesinc.com to explore compatible scanners and printers for your setup.
What is the form factor and physical footprint of this Dell desktop?
The Dell Pro Slim Plus QBS1250 is designed as a slim desktop PC, optimizing space in warehouse offices and logistics facilities without sacrificing performance. Its compact design makes it ideal for tight workstation environments while maintaining the processing power needed for demanding warehouse management tasks. We offer this space-efficient solution for organizations looking to maximize desk space.
Does the Dell W7CHW support security features needed for warehouse operations?
Yes, the Dell W7CHW includes Windows 11 Pro security features suitable for protecting sensitive warehouse and logistics data. The system supports enterprise-grade security protocols required in AIDC and inventory management environments. Contact us today to discuss security requirements and how this desktop integrates with your warehouse security infrastructure.
Can the Dell W7CHW be used with barcode scanners and RFID equipment?
Absolutely—the Dell W7CHW Desktop PC is fully compatible with barcode scanners, RFID readers, and other AIDC devices through its multiple USB ports and connectivity options. The Windows 11 Pro operating system and Intel Core Ultra 7 processor provide reliable performance for running barcode scanning software and RFID management applications. Visit barcodesinc.com to explore our selection of compatible scanners and RFID solutions for your warehouse operation.
