Dell VXV62 Servers

Part Number: VXV62
Model: Parts
Add to My Shopping List Add to Compare
$3,722.82
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
1
Number of Processors Installed
1
Processor Type
Xeon
Processor Model
E-2314

Product Description:

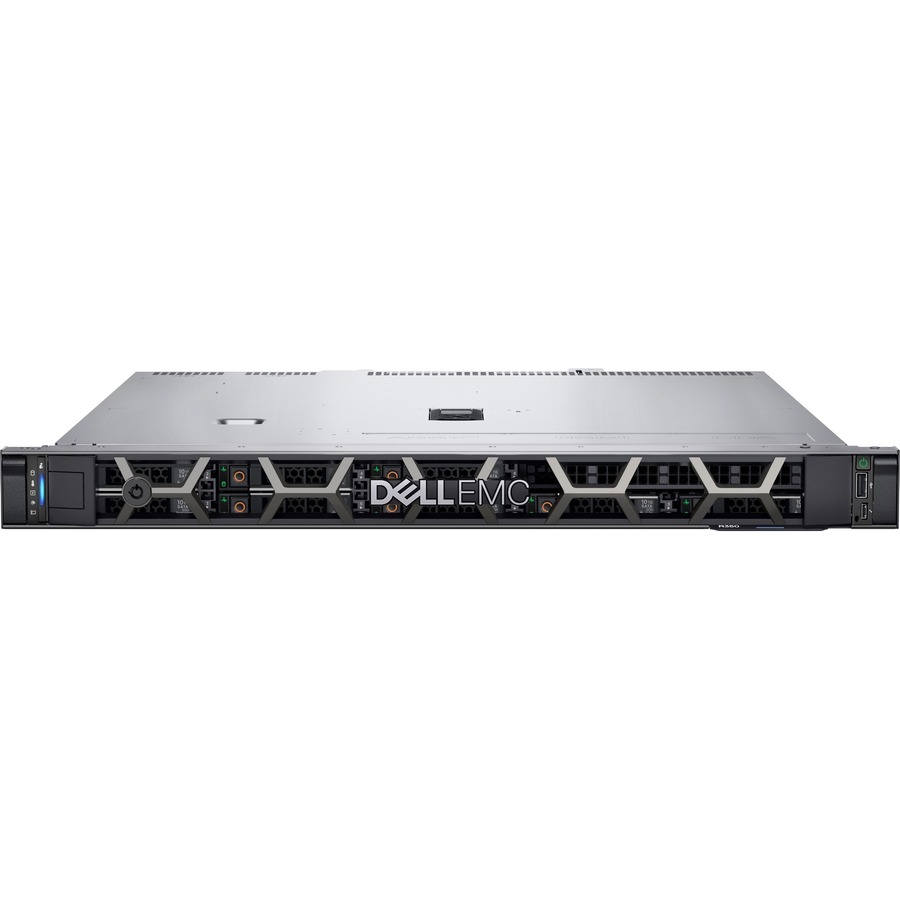

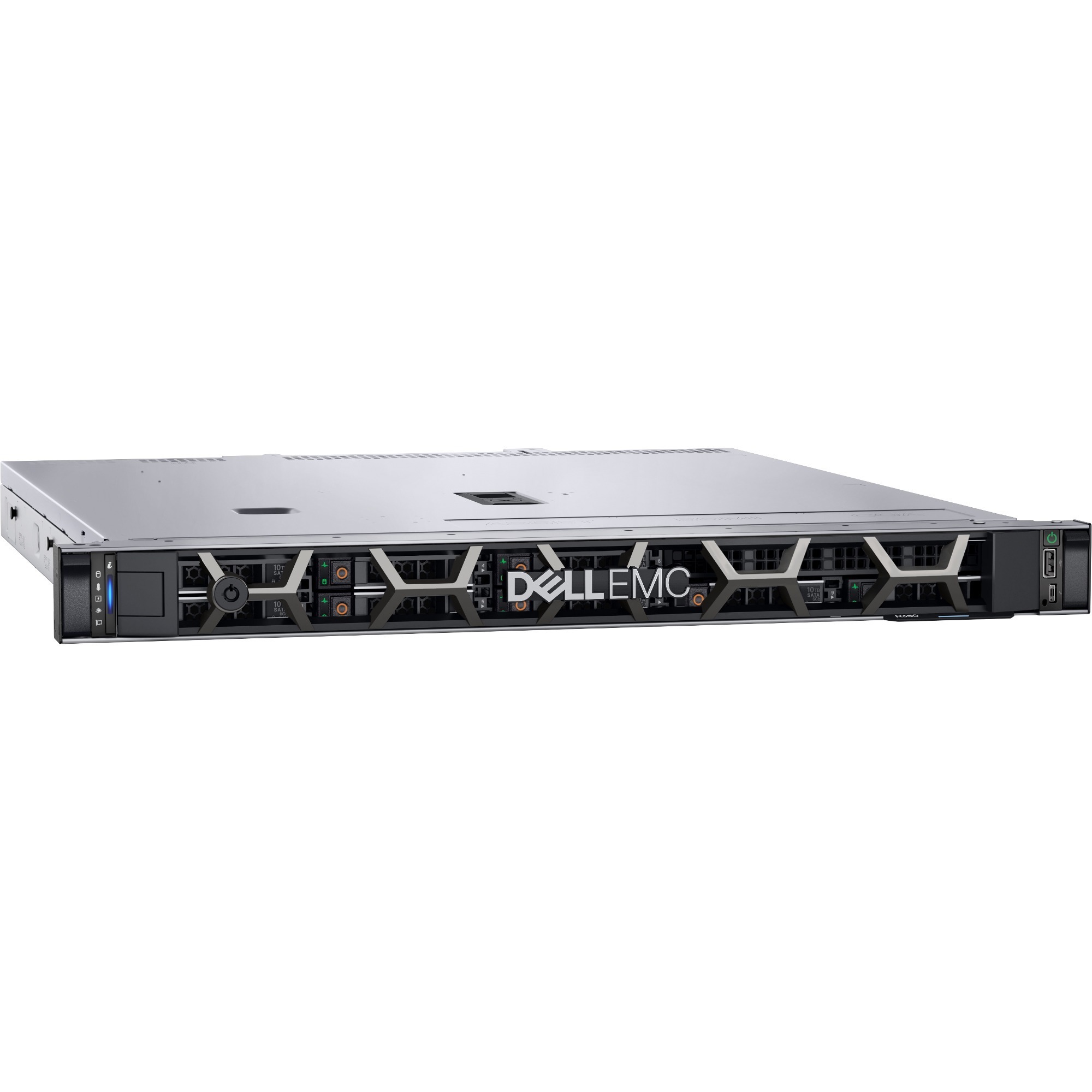

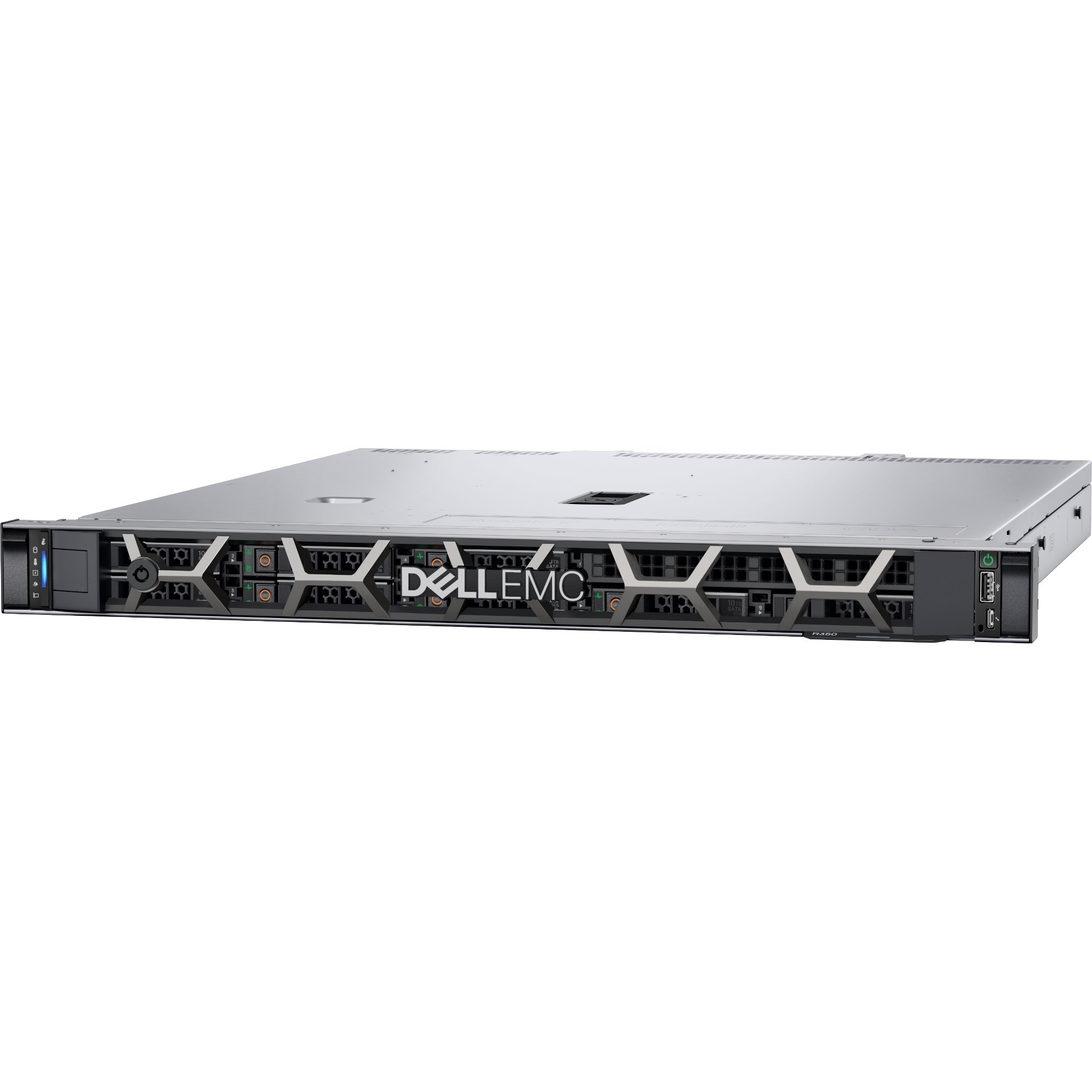

  Servers, Dell PowerEdge R350, 1U Rack-mountable Server, 1 x Intel Xeon E-2314 2.80 GHz, 8 GB RAM, 480 GB SSD, 12GBps SAS, Serial ATA/600 Controller, Intel Chip, 1 Processor Support, 128 GB RAM Support, 0, 1, 10 RAID Levels, Gigabit Ethernet, 8 x SFF Bay(s), Hot Swappable Bays, 1 x 600 W
Explore all Dell Parts Accessories
Add to Quote
Dell VXV62 Servers
Dell VXV62 Servers
Dell VXV62 Servers
Dell VXV62 Servers
Dell VXV62 Servers Dell VXV62 Servers Dell VXV62 Servers Dell VXV62 Servers
Processor
Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Type:
Xeon
Processor Model:
E-2314
Processor Core:
Quad-core (4 Core)
Processor Speed:
2.80 GHz
Cache:
8 MB
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
8 GB
Maximum Memory Supported:
128 GB
Memory Technology:
DDR4 SDRAM
Memory Clock Speed:
3.20 GHz
Error Checking:
ECC
Total Number of Memory Slots:
4
Signal Processing:
Unregistered (Unbuffered)
Storage
Total Solid State Drive Capacity:
480 GB
Solid State Drive Interface:
Serial ATA/600
Optical Drive Type:
No
Controllers
Controller Type:
  • 12Gb/s SAS
  • Serial ATA/600
Controller Model:
PERC H355
RAID Supported:
Yes
RAID Levels:
0, 1, 10
I/O Expansions
Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8
Number of SFF Bays:
8
Hot Swappable Bays:
Yes
Total Number of Expansion Slots:
3
PCI Express Details:
3 PCIe slots: 1x8 Gen4 (x16 connector) low profile, half length, 1x8 Gen4 (x8 connector) low profile, 1x8 Gen4 (x8 connector) for dedicated PERC only
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Number of USB 2.0 Ports:
2
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
VGA:
Yes
Number of VGA Ports:
1
Remote Management:
Yes
Remote Management Controller:
iDRAC9, Enterprise 15G
Operating System
Operating System Supported:
  • Ubuntu Server
  • Windows Server
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • Hyper-V
Operating System:
No
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Installed:
1
Plug/Connector Type:
NEMA 5-15P to C13
Maximum Power Supply Wattage:
600 W
Hot Swappable Power Supply:
Yes
Physical Characteristics
Form Factor:
Rack-mountable
Rack Height:
1U
Height:
1.7"
Width:
19"
Depth:
23.6"
Miscellaneous
Package Contents:
  • PowerEdge R350
  • NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America
  • ReadyRails™ Sliding Rails Without Cable Management Arm
Security Features:
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
Country of Origin:
Mexico
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:
1 Year Basic Hardware Warranty Repair 5X10 HW-Only 5x10 Next Business Day Onsite-Disti SNS
Item Numbers
GTIN: 0884116422037
UPC: 884116422037
EAN: 0884116422037
UNSPSC: 43211501

Frequently Asked Questions

The Dell VXV62 PowerEdge R350 is a 1U rack-mountable server featuring a single Intel Xeon E-2314 processor running at 2.80 GHz, 8 GB of RAM (expandable to 128 GB), and 480 GB SSD storage. It includes a 12GBps SAS controller, supports RAID levels 0, 1, and 10, and comes with a 600W power supply, making it ideal for small to medium business applications in warehouse and logistics environments.

The Dell VXV62 features 8 small form factor (SFF) drive bays with hot-swappable capabilities, allowing you to replace failed drives without powering down the system. This design minimizes downtime and is essential for maintaining continuous operations in data-intensive warehouse management and inventory tracking applications.

The server includes Gigabit Ethernet connectivity via RJ-45 network connectors, providing reliable network communication for enterprise applications. This enables seamless integration with warehouse management systems, barcode scanning networks, and other AIDC infrastructure that Barcodes Inc supports.

Yes, the Dell VXV62 supports RAID levels 0, 1, and 10 through its 12GBps SAS controller, providing flexible options for data protection and performance optimization. These configurations are ideal for protecting critical warehouse data and ensuring business continuity in logistics operations.

The Dell VXV62 supports up to 128 GB of RAM, allowing you to scale performance as your warehouse management and inventory systems grow. This expandable memory capacity ensures the server can handle demanding applications and concurrent operations in large-scale logistics environments.

We offer the Dell VXV62 PowerEdge R350 server as part of our comprehensive AIDC solutions portfolio. Contact us today or visit barcodesinc.com to discuss your server infrastructure needs and get pricing for this reliable 1U rack-mountable solution.
