Dell TTXR6 Workstation PC
Part Number:
TTXR6
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.
Dell TTXR6 Workstation PC Overview
Thin, powerful, and built for portability
The Dell Pro Max 16 combines performance and portability to deliver exceptional value. Powered by AMD Ryzen processors, it offers outstanding battery life and seamless on-device AI experiences.
Technical Information
Processor
Processor Manufacturer:
AMD
Processor Type:
Ryzen AI 9 HX PRO
Processor Model:
370
Processor Core:
Dodeca-core (12 Core)
Processor Threads:
24
Maximum Turbo Speed:
5.10 GHz
Total AI Performance:
80 TOPS
NPU Manufacturer:
AMD
NPU Name:
Ryzen AI
NPU Performance:
50 TOPS
Chipset
Chipset Manufacturer:
AMD
Memory
Standard Memory:
32 GB
System Memory Form Factor:
On-board
On-board Memory:
32 GB
On-board Memory Technology:
LPDDR5X
On-board Memory Configuration:
1 x 32GB
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
1 TB
SSD Form Factor:
M.2
Display & Graphics
Screen Size:
16"
Display Screen Type:
LCD
Display Screen Technology:
ComfortView Plus
Standard Refresh Rate:
120 Hz
Screen Mode:
QHD+
Screen Resolution:
3200 x 1800
Brightness:
300 Nit
Color Gamut:
100% sRGB
Touchscreen:
No
Graphics Controller Manufacturer:
NVIDIA
Graphics Controller Model:
RTX PRO 1000
Graphics Memory Capacity:
8 GB
Graphics Memory Technology:
GDDR7
Graphics Memory Accessibility:
Dedicated
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11be
Wi-Fi Generation:
Wi-Fi 7
Ethernet Technology:
Gigabit Ethernet
Bluetooth:
Yes
Built-in Devices
Front Camera/Webcam:
Yes
Infrared Camera:
Yes
Finger Print Reader:
Yes
Speaker Power Details:
2 x 2W
Sound Mode:
Stereo

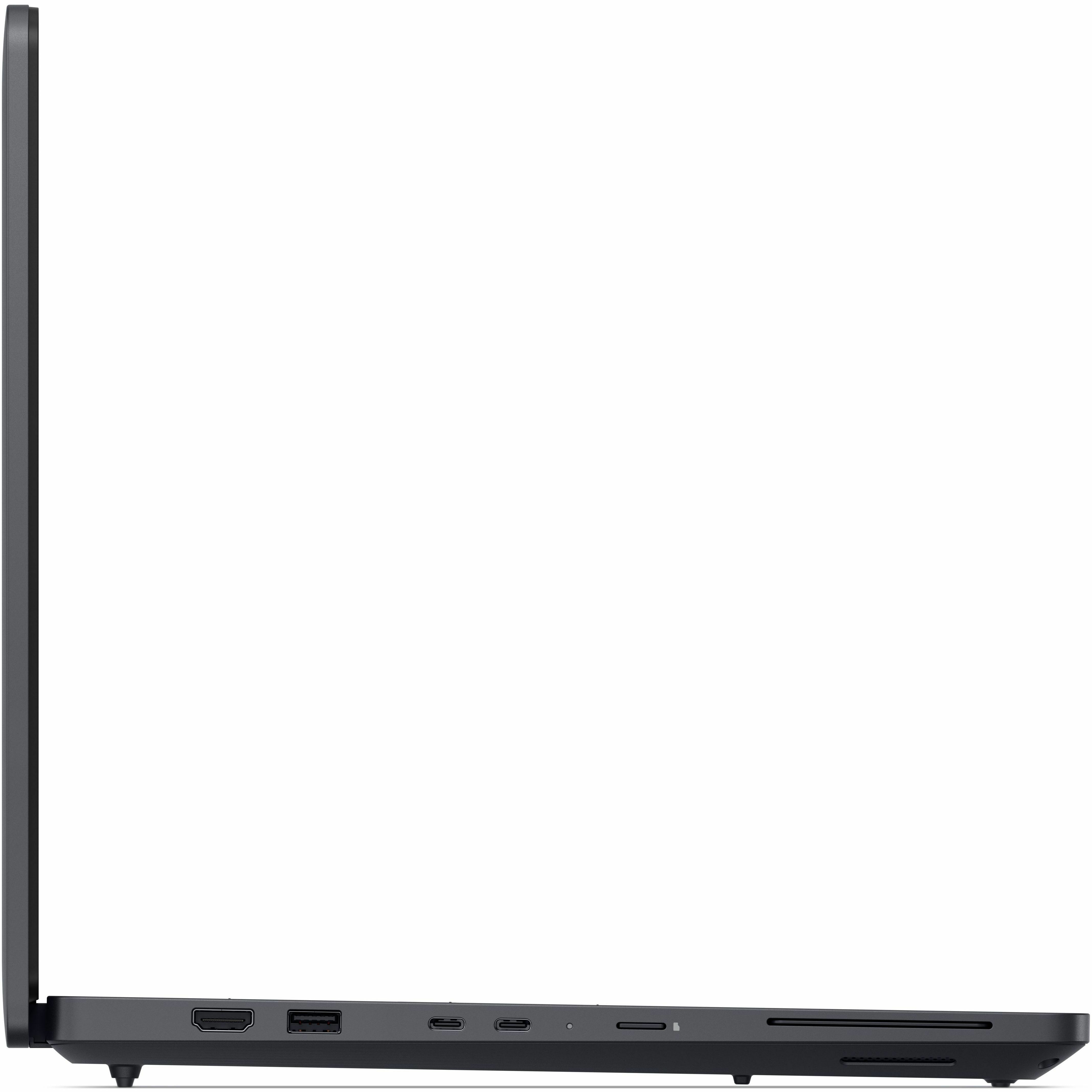

Interfaces/Ports
HDMI:
Yes
Total Number of USB Ports:
2
Number of USB 3.2 Gen 1 Type-A Ports:
2
Number Of Ethernet Ports:
1
Network (RJ-45):
Yes
Number of Thunderbolt 4 Ports:
2
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 Smart-card reader slot (optional)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Input Devices
Keyboard Backlight:
Yes
Keyboard Localization:
English (US)
Copilot Key:
Yes
Battery Information
Number of Cells:
6-cell
Power Description
Power Plug Type:
Type C
Included Charger Power:
130 W
USB Power Delivery Support:
Yes
Physical Characteristics
Color Family:
Other
Product Color:
Magnetite
Height:
1.01"
Width:
14.1"
Depth:
10.1"
Weight (Approximate):
4.59 lb
Miscellaneous
Package Contents:
- Pro Max 16 MC16255
- Lithium Polymer Battery
- AC Adapter
- Power Cord
- Documentation
- Quick Setup Guide
Charger Included:
Yes
Features:
- Anti-glare Screen
- ExpressCharge
Energy Star:
Yes
Country of Origin:
Vietnam
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116672043
UPC:
884116672043
EAN:
0884116672043
UNSPSC:
43211503
Frequently Asked Questions
What processor and RAM does the Dell TTXR6 workstation include?
The Dell Pro Max MC16255 features an AMD Ryzen AI 9 HX PRO 370 processor paired with 32 GB of memory, delivering high-performance computing for demanding workloads in logistics, warehouse management, and data-intensive applications. This configuration ensures smooth multitasking and rapid data processing for enterprise users. Contact us today to verify current specifications and availability.
Is the Dell TTXR6 suitable for outdoor warehouse environments?
Yes, the Dell Pro Max MC16255 includes ComfortView Plus technology and a QHD+ display with 3200 x 1800 resolution at 120 Hz, designed for professional visibility in various lighting conditions. However, for rugged outdoor warehouse applications requiring extreme durability, we recommend consulting with our team about specialized mobile computers or ruggedized alternatives available from us. Visit barcodesinc.com or contact us today for environment-specific recommendations.
What graphics capabilities does this workstation offer?
The Dell TTXR6 is equipped with an NVIDIA RTX PRO 1000 Blackwell GPU with 8 GB of dedicated memory, providing professional-grade graphics performance for CAD, 3D modeling, and data visualization tasks. This makes it suitable for logistics professionals who need to work with complex warehouse management software and visualization tools. We offer this model for immediate deployment in your operations.
What connectivity options are available on the Dell TTXR6?
The Dell Pro Max MC16255 features IEEE 802.11be Wireless LAN Standard with Wi-Fi 7 connectivity, ensuring fast and reliable network connections for warehouse management systems and real-time data synchronization. This advanced wireless standard supports high-bandwidth applications essential for modern AIDC and inventory management operations. Contact us today for deployment support and network integration assistance.
Does the Dell TTXR6 come with a webcam for video conferencing?
Yes, the Dell Pro Max MC16255 includes a front-facing camera and webcam, enabling video conferencing and remote collaboration capabilities for distributed warehouse and logistics teams. This is particularly useful for IT procurement professionals and managers coordinating across multiple locations. We offer this model fully configured and ready for immediate deployment.
What storage capacity and operating system does the Dell TTXR6 provide?
The Dell Pro Max MC16255 comes with 1 TB SSD storage and Windows 11 Pro operating system, providing ample capacity for enterprise applications and secure data management in warehouse environments. The solid-state drive ensures fast boot times and application responsiveness critical for high-volume inventory operations. Visit barcodesinc.com to order or contact us today for custom configuration options.
