Release Year:
2023

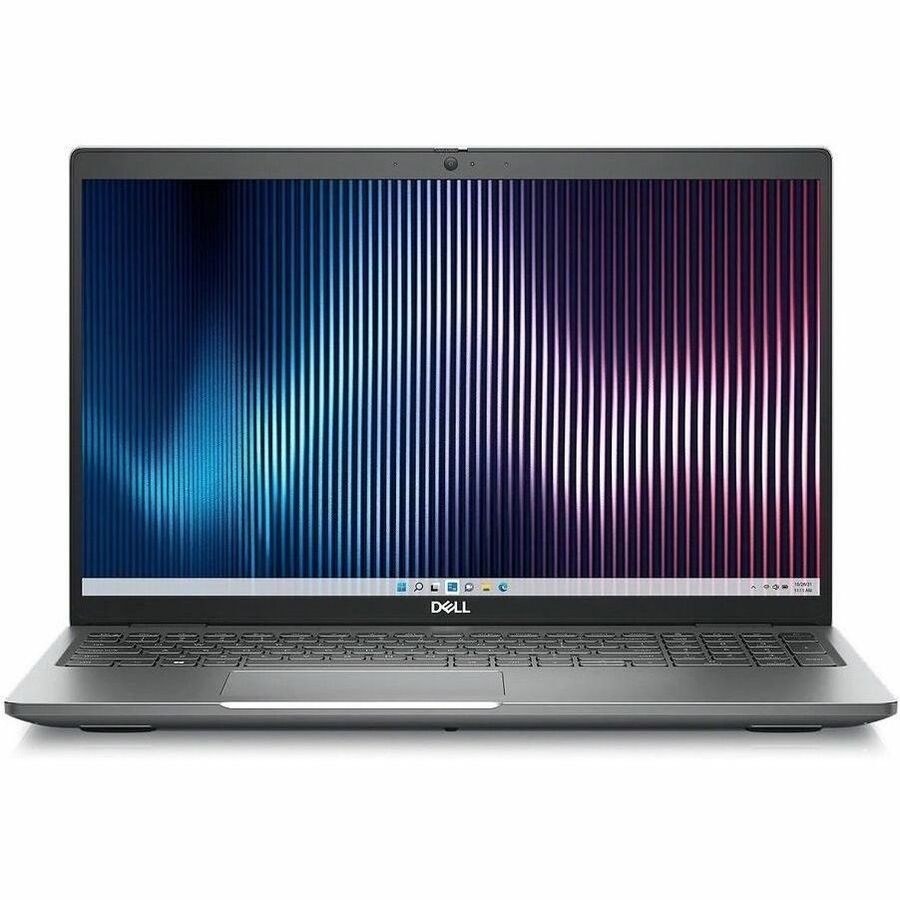

Dell TPJJ4 Laptop
Part Number:
TPJJ4
Model:
Parts
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i7
Processor Generation:
13th Gen
Processor Model:
i7-1365U
Processor Core:
Deca-core (10 Core)
Maximum Turbo Speed:
5.20 GHz
Cache:
12 MB
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Total Installed System Memory:
16 GB
Maximum Supported System Memory:
64 GB
System Memory Technology:
DDR4 SDRAM
System Memory Speed:
3200 MHz
Installed Slot Memory Configuration:
2 x 8GB
Number of Occupied Memory Slots:
2
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express
SSD Form Factor:
M.2
Display & Graphics
Screen Size:
15.6"
Display Screen Technology:
In-plane Switching (IPS) Technology
Screen Mode:
Full HD
Screen Resolution:
1920 x 1080
Touchscreen:
No
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
Iris Xe Graphics
Graphics Memory Technology:
DDR4 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ax
Ethernet Technology:
Ethernet
Bluetooth:
Yes
WWAN Supported:
No
Built-in Devices
Front Camera/Webcam:
Yes
Infrared Camera:
Yes
Finger Print Reader:
Yes

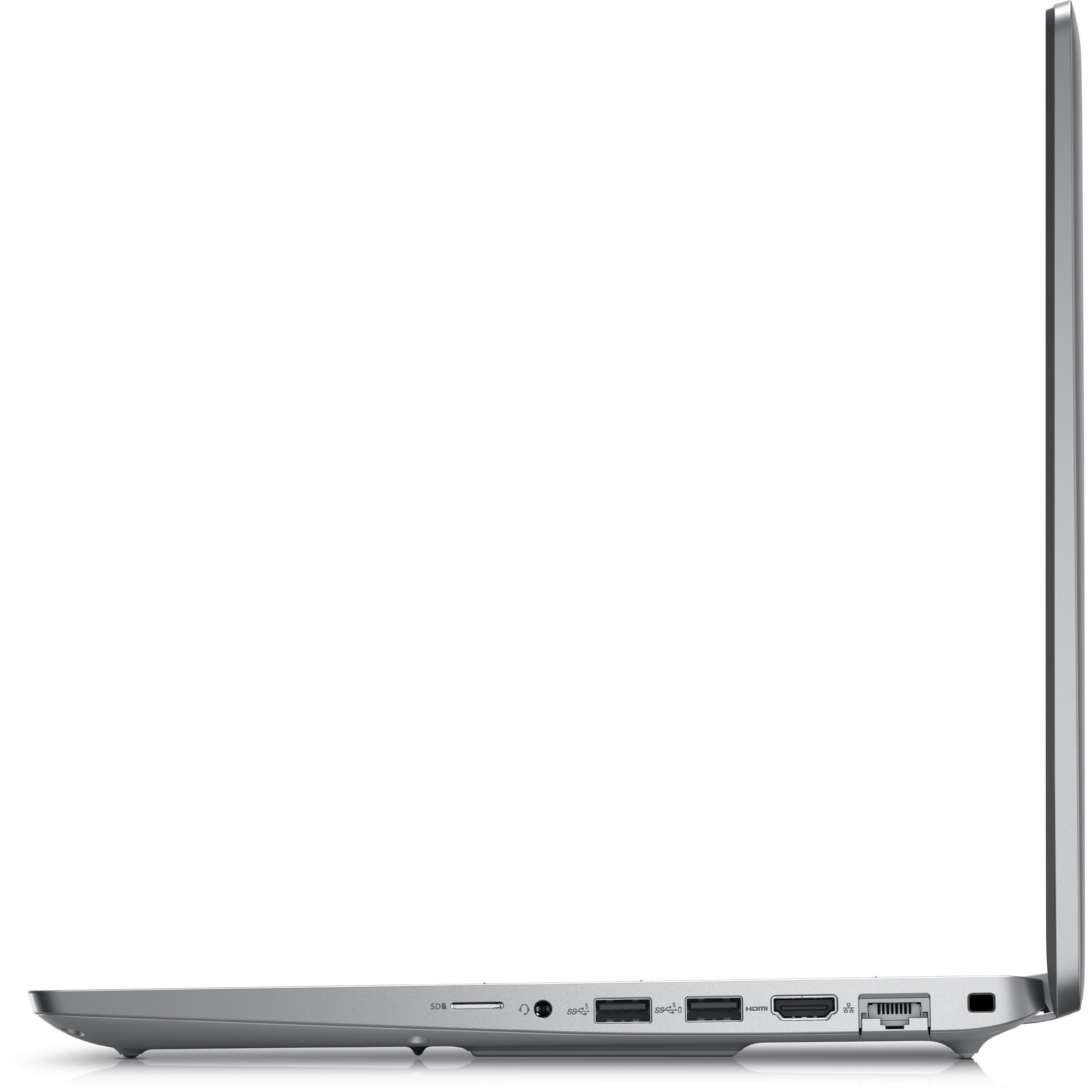

Interfaces/Ports
HDMI:
Yes
Number of HDMI Outputs:
1
Total Number of USB Ports:
2
Number of USB 3.2 Gen 1 Ports:
2
Number Of Ethernet Ports:
1
Network (RJ-45):
Yes
Number of Thunderbolt 4 Ports:
2
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/French/Spanish/Portuguese
Input Devices
Keyboard Backlight:
Yes
Keyboard Localization:
English (US)
Battery Information
Number of Cells:
3-cell
Battery Energy:
54 Wh
Power Description
Maximum Power Supply Wattage:
65 W
Power Plug Type:
Type C
Physical Characteristics
Product Color:
Titan Gray
Height:
0.90"
Width:
14.1"
Depth:
9.2"
Weight (Approximate):
3.55 lb
Miscellaneous
Package Contents:
Latitude 5540 Notebook Latitude 5540 Quick Start Guide Safety/Environment and Regulatory Guide (English/French Multi-language) E4 Power Cord 1M for US Standard Battery 65W AC Adapter
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- Electronic Product Environmental Assessment Tool (EPEAT)
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:
1Y Basic Onsite Service with Hardware Support-Disti SnS
Item Numbers
UNSPSC:
43211503
Frequently Asked Questions
What are the processor and memory specifications of the Dell TPJJ4 Latitude 5540?
The Dell Latitude 5540 features an Intel Core i7-1365U 13th Generation Deca-core (10 Core) processor paired with 16 GB of total RAM, delivering strong performance for business and productivity tasks. This configuration provides excellent multitasking capabilities and handles demanding applications efficiently. We offer this model configured and ready to deploy from our warehouse.
Does the Dell TPJJ4 support external displays and what connectivity options are available?
Yes, the Dell Latitude 5540 includes HDMI connectivity for external display support, along with USB ports, Wi-Fi, and wireless LAN capabilities for comprehensive connectivity. The notebook also features a network connector (RJ-45) for wired connections when needed. Contact us today to discuss your specific connectivity requirements.
What is the display quality and resolution of the Dell TPJJ4 laptop?
The Dell Latitude 5540 features a 15.6-inch Full HD display with 1920 x 1080 resolution and In-plane Switching (IPS) technology, ensuring excellent color accuracy and wide viewing angles. This display size and resolution combination makes it ideal for warehouse managers and logistics professionals who need clear visibility for extended work sessions. Available from us with Windows 11 Pro pre-installed.
Is the Dell TPJJ4 suitable for rugged warehouse and logistics environments?
The Dell Latitude 5540 is designed as a business-class notebook with standard security features including TPM and optional fingerprint readers, making it suitable for secure logistics operations. While it includes a front camera/webcam for video conferencing, it's optimized for professional warehouse management and IT procurement environments rather than extreme rugged conditions. Contact us today to discuss whether this model meets your specific environmental requirements.
What storage options and security features does the Dell TPJJ4 include?
The Dell Latitude 5540 comes standard with a 512 GB SSD for fast boot times and application loading, along with security features including a Smart Card reader and optional fingerprint reader for secure access. The notebook supports ControlVault technology and includes cable lock slots for physical security in warehouse and logistics facilities. We offer this model pre-configured with your security requirements in mind.
What operating system comes with the Dell TPJJ4 and is it suitable for enterprise deployment?
The Dell Latitude 5540 ships with Windows 11 Pro, which is designed for enterprise environments and provides advanced security, management, and productivity features ideal for warehouse and logistics operations. Windows 11 Pro includes built-in encryption, remote desktop capabilities, and Group Policy management for IT procurement teams. Visit barcodesinc.com to configure your deployment options.
