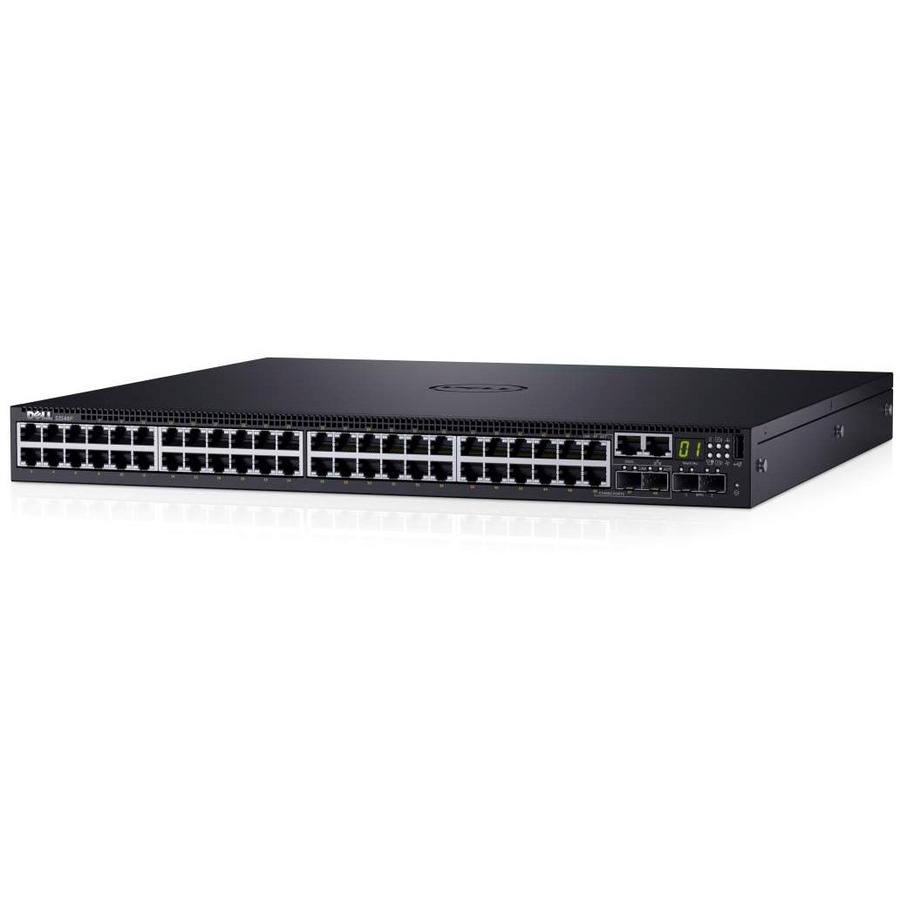

Dell S3148 Data Networking Overview
High-performance managed Ethernet switches designed for non-blocking access
The S3100 switch series offers a power-efficient and resilient Gigabit Ethernet (GbE) switching solution with integrated 10GbE uplinks for advanced Layer 3 distribution for offices and campus networks. The S3100 switch series has high-performance capabilities and wire-speed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads. Use dual internal hot-swappable 80PLUS-certified power supplies for high availability and power efficiency. The switches offer simple management and scalability via an 84Gbps (fullduplex) high-availability stacking architecture that allows management of up to 12 switches from a single IP address.
Modernize campus network architectures
Modernize campus network architectures with a powerefficient and resilient 1/10GbE switching solution with dense Power over Ethernet Plus (PoE+). Select S3100 models offer 24 or 48 ports of PoE+ to deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, S3100 series switches offer the latest open-standard protocols and include technology to interface with Cisco protocol PVST+. The S3100 series supports Dell Networking OS9, VLT and network virtualization features such as VRF-lite and support for Dell Embedded Open Automation Framework.
Leverage familiar tools and practices
All S3100 switches include Dell Networking OS9 for easier deployment and greater interoperability. One common command line interface (CLI) using a well-known command language means a faster learning curve for network administrators. Deploy with confidence at any scale
S3100 series switches help create performance assurance with a data rate up to 260Gbps (full duplex) and a forwarding rate up to 193Mpps. Scale easily with built-in rear stacking ports. Switch stacks of up to 624 ports can be managed from a single screen using the highly-available stacking architecture for high-density aggregation with seamless redundant availability.
Hardware, performance and efficiency
Up to 48 line-rate GbE ports of copper or 24 line-rate ports of fiber, two combo ports for fiber/copper flexibility, and two integrated 10GbE SFP+ ports
Up to 48 ports of PoE+ in 1RU without an external power supply
Hot swappable expansion module supporting dual-port SFP+ or dual-port 10GBaseT
Integrated stacking ports with support up to 84Gbps
Up to 624 ports in a 12-unit stack for high-density, highavailability aggregation and distribution in wiring closets/ MDFs. Non-stop forwarding and fast failover in stack configurations
Available with dual 80PLUS-certified hot swappable power supplies. Variable speed fan operation helps decrease cooling and power costs
Energy-Efficient Ethernet and lower-power PHYs reduce power to inactive ports and idle links, providing energy savings from the power cord to the port
Dell Fresh Air compliance for operation in environments up to 113°F (45°C) helps reduce cooling costs in temperature constrained deployments
Deploying, configuring and managing
Tool-less ReadyRails™ significantly reduces rack installation time
Management via an intuitive and familiar CLI, SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection
Private VLAN support
AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access
What are the key specifications of the Dell S3148 Ethernet Switch?
The Dell EMC PowerSwitch S3148 is a 48-port manageable Ethernet switch that supports 3-layer networking with modular architecture. It features 2 SFP slots for optical fiber connectivity, consumes 74.80 W of power, and is designed for 1U rack-mount or rail-mount installations. The switch comes with a lifetime limited warranty and is TAA compliant for government procurement.
Is the Dell S3148 suitable for warehouse and logistics network infrastructure?
Yes, the Dell S3148 is well-suited for warehouse and logistics environments requiring reliable data networking. Its 48-port capacity, manageable architecture, and support for both optical fiber and twisted-pair connectivity make it ideal for connecting barcode scanners, mobile computers, RFID readers, and other AIDC devices across large facilities. We offer this switch as part of our comprehensive networking solutions for supply chain operations.
What connectivity options does the Dell S3148 provide?
The Dell S3148 supports both optical fiber connectivity through its 2 SFP slots and twisted-pair connections across its 48 ports, providing flexibility for different network infrastructure requirements. This dual connectivity approach allows integration with both legacy and modern network equipment commonly found in warehouse and distribution center environments.
How is the Dell S3148 mounted and what is its power consumption?
The Dell S3148 is a compact 1U switch that can be mounted in standard racks or on rails, making it ideal for data center and server room installations. With a power consumption of only 74.80 W, it offers energy-efficient operation suitable for facilities looking to minimize power costs while maintaining robust network performance.
Does the Dell S3148 come with warranty coverage?
Yes, the Dell EMC PowerSwitch S3148 includes a lifetime limited warranty, providing long-term protection for your investment. This comprehensive warranty coverage gives IT procurement teams confidence in the reliability and durability of the switch for mission-critical warehouse and logistics operations.
Can I purchase the Dell S3148 from Barcodes Inc with technical support?
Absolutely. We offer the Dell EMC PowerSwitch S3148 as part of our complete data networking solutions for warehouse and logistics environments. Contact us today at barcodesinc.com to discuss your networking requirements, and our team can help you select the right switch configuration and provide ongoing technical support for your AIDC infrastructure.
