Dell P7C90 Workstation PC
Part Number:
P7C90
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

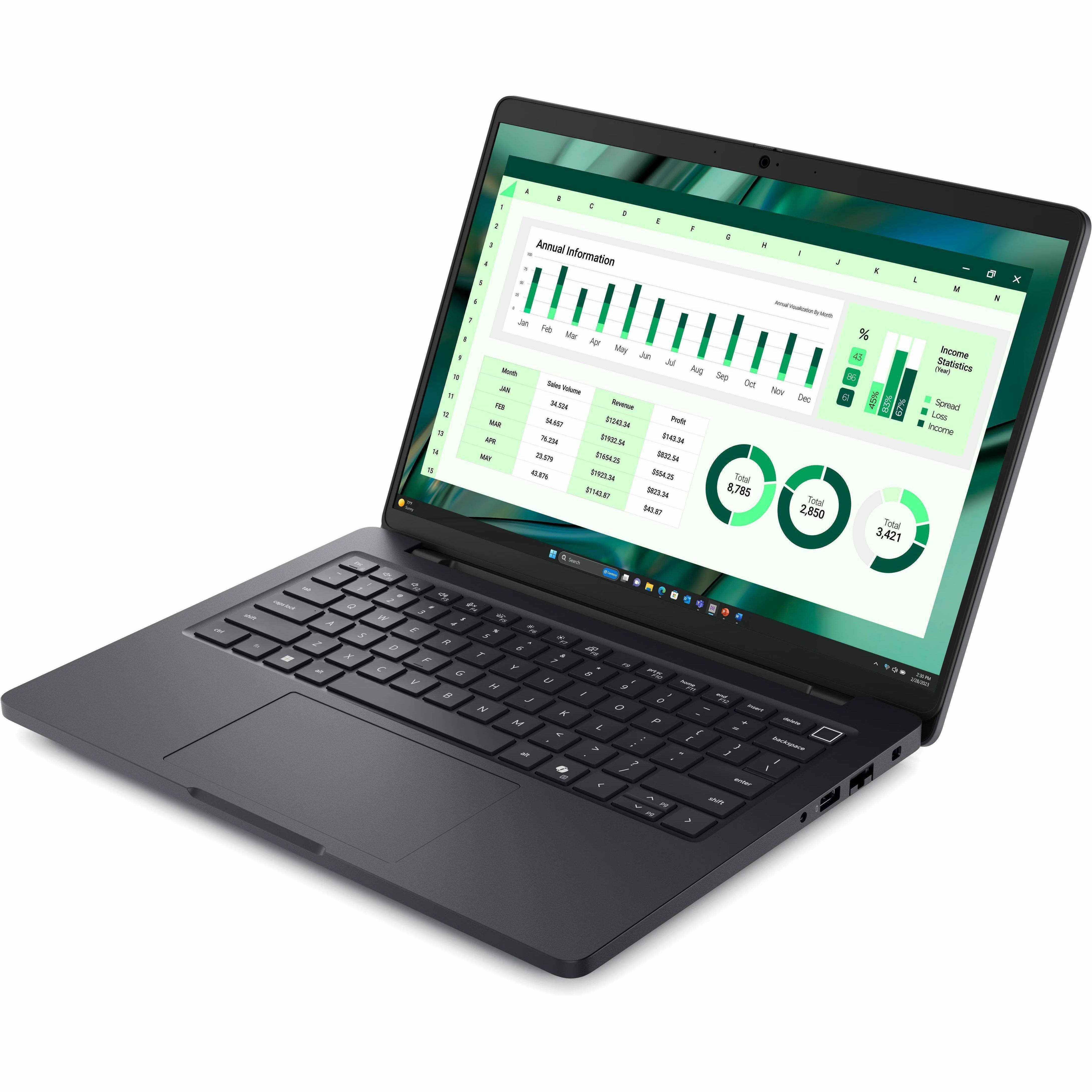

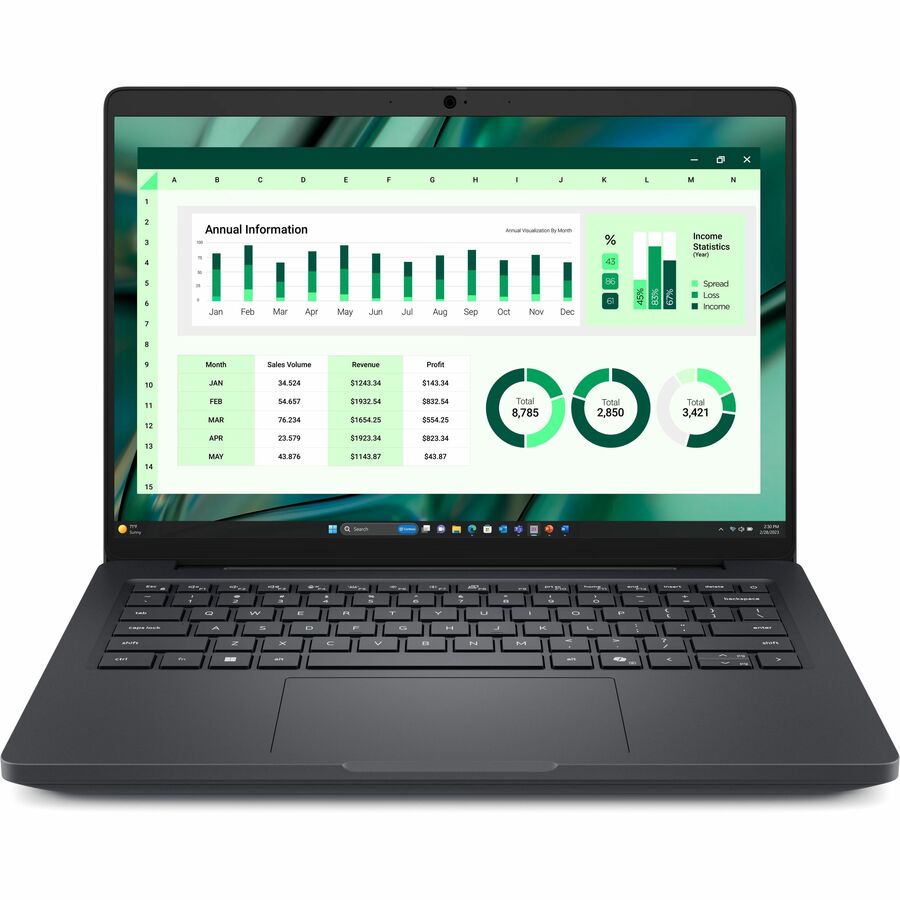

Dell P7C90 Workstation PC Overview
Dell Pro Max 14 Laptop
Experience performance and portability with the Dell Pro Max 14 laptop. Designed for power users, light design and creative applications in the office or on the go.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core Ultra 5
Processor Model:
225H
Processor Core:
Tetradeca-core (14 Core)
Processor Threads:
14
Maximum Turbo Speed:
4.90 GHz
NPU Manufacturer:
Intel
NPU Name:
AI Boost
NPU Performance:
13 TOPS
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
32 GB
Maximum Supported System Memory:
64 GB
System Memory Technology:
LPDDR5X
System Memory Form Factor:
LPCAMM
Installed Slot Memory:
32 GB
Installed Slot Memory Configuration:
1 x 32GB
Total Number of Memory Slots:
1
Number of Occupied Memory Slots:
1
Number of Free Memory Slots:
0
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
SSD Form Factor:
M.2
Display & Graphics
Screen Size:
14"
Display Screen Type:
LCD
Standard Refresh Rate:
60 Hz
Screen Mode:
Full HD Plus
Screen Resolution:
1920 x 1200
Brightness:
300 Nit
Color Gamut:
45% NTSC
Touchscreen:
No
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
Arc Pro 140T Graphics
Graphics Memory Technology:
LPDDR5X
Graphics Memory Accessibility:
Shared
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11be
Ethernet Technology:
Gigabit Ethernet
Bluetooth:
Yes
Built-in Devices
Front Camera/Webcam:
Yes
Infrared Camera:
Yes

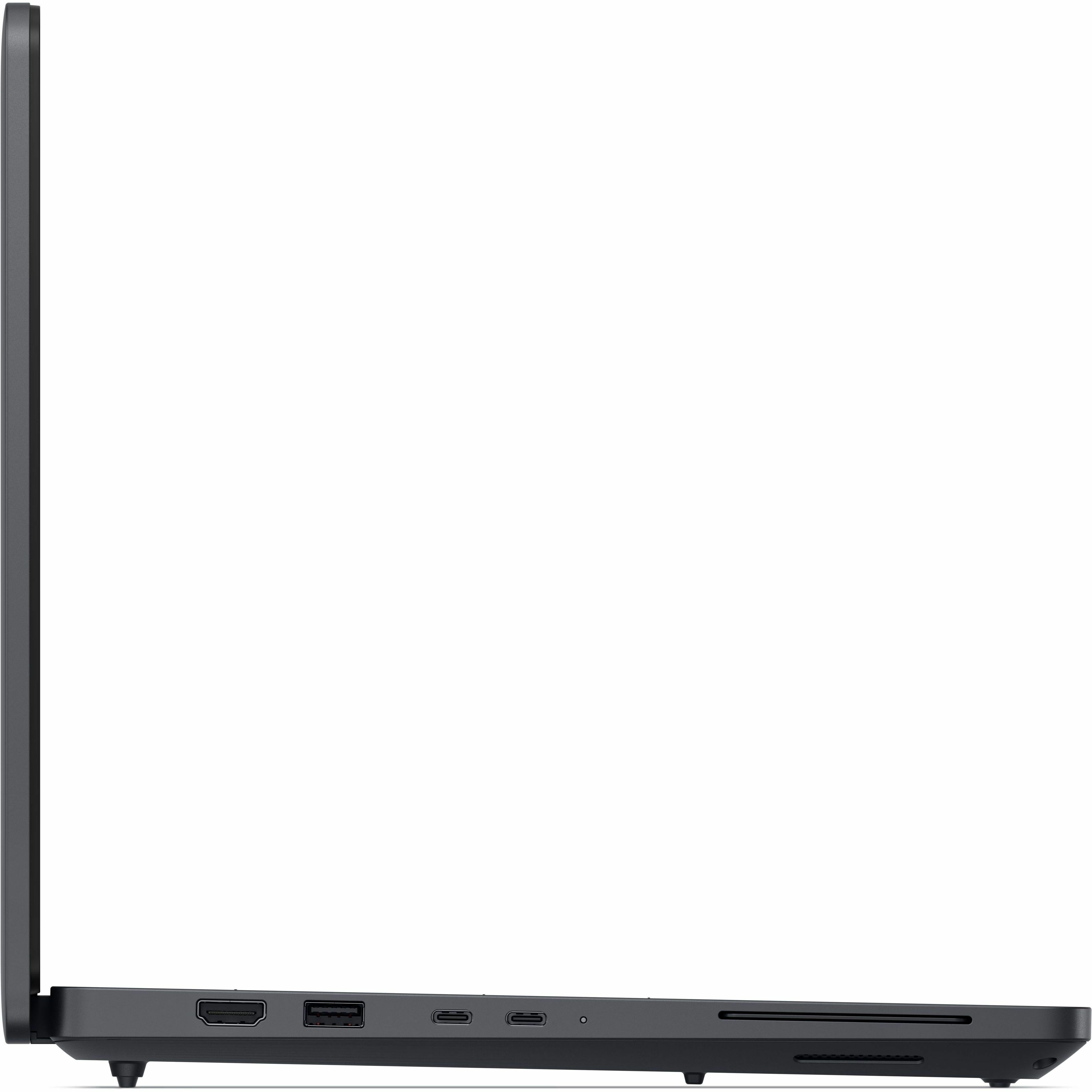

Interfaces/Ports
HDMI:
Yes
Total Number of USB Ports:
2
Number of USB 3.2 Gen 1 Type-A Ports:
2
Network (RJ-45):
Yes
Number of Thunderbolt 4 Ports:
2
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 x Smart-card reader slot (optional)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Input Devices
Keyboard Backlight:
Yes
Keyboard Localization:
English (US)
Copilot Key:
Yes
Battery Information
Number of Cells:
4-cell
Battery Chemistry:
Lithium Polymer (Li-Polymer)
Battery Weight:
9.52 oz
Power Description
Power Plug Type:
Type C
Included Charger Power:
100 W
USB Power Delivery Support:
Yes
Physical Characteristics
Height:
0.97"
Width:
12.3"
Depth:
8.9"
Weight (Approximate):
4.03 lb
Miscellaneous
Package Contents:
- Pro Max 14 MC14250
- Lithium Polymer Battery
- AC Adapter
- Power Cord
- Documentation
- Quick Setup Guide
Systems Management:
Intel vPro Technology Disabled
Charger Included:
Yes
Features:
- ExpressCharge
- Anti-glare Screen
Energy Star:
Yes
Country of Origin:
Vietnam
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116490623
UPC:
884116490623
EAN:
0884116490623
UNSPSC:
43211503
Frequently Asked Questions
What are the display specifications for the Dell P7C90 workstation?
The Dell P7C90 features a 14.0" HD display with options for standard LED or resistive touchscreen configurations, both with 1366x768 resolution and impact-resistant protective front glass. The display is designed for outdoor visibility and wide viewing angles, making it suitable for mobile workstation environments. We offer this model configured to your specific display needs—contact us today for details on available options.
What security features does the Dell P7C90 include?
The P7C90 provides comprehensive security with a Smart Card Reader, optional fingerprint reader, ControlVault™ technology, TPM 1.2, and optional Contactless Smart Card Reader for enterprise environments. Physical security features include cable lock slots and battery/hard drive locks to protect against theft. These features make it ideal for secure logistics and warehouse operations—visit barcodesinc.com to explore our security-focused configurations.
Is the Dell P7C90 suitable for rugged warehouse environments?
Yes, the P7C90 is designed for mobile and field operations with rugged construction, including impact-resistant display glass, optional rubberized keyboard, and Dell Fast Response Free Fall Sensor with HDD isolation for hard drive protection. Its compact dimensions (starting at 8.8 lbs with 6-cell battery) and durable build make it well-suited for warehouse and logistics use. Contact us today to discuss rugged configurations and optional protective accessories available from us.
What connectivity options are available on the Dell P7C90?
The P7C90 offers extensive connectivity including USB/eSATA combo ports, HDMI, optional USB 3.0 ports via media bay module, RJ-45 network connector, SmartCard reader, and optional Contactless SmartCard reader. It also features stereo headphone/microphone combo jack and supports Intel vPro™ Technology for advanced remote management. We offer fully configured units with your choice of connectivity modules—visit barcodesinc.com for available options.
What are the memory and storage options for the Dell P7C90?
The P7C90 supports DDR3 SDRAM at 1333 MHz or 1600 MHz with two slots supporting up to 8GB DIMMs, and offers multiple storage configurations including 7200 rpm SATA drives up to 750GB, 5400 rpm drives up to 320GB, or Solid State Drive options up to 256GB. Encrypted storage options with FIPS Opal compliance are available for secure data handling in logistics environments. Contact us today to configure the memory and storage specifications that match your operational needs.
What graphics capabilities does the Dell P7C90 workstation have?
The P7C90 offers flexible graphics options including Intel® HD Graphics 4000 (for Core i3/i5/i7 processors), Intel® HD Graphics 3000 (for Core i3 processors), or NVIDIA® NVS™ 5200M discrete graphics with Optimus technology for enhanced performance. The graphics options are optimized for professional applications and mobile computing. We can help you select the right graphics configuration for your workstation requirements—contact us today.
