Release Year:
2024
Dell P69DR Desktop PC
Part Number:
P69DR
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

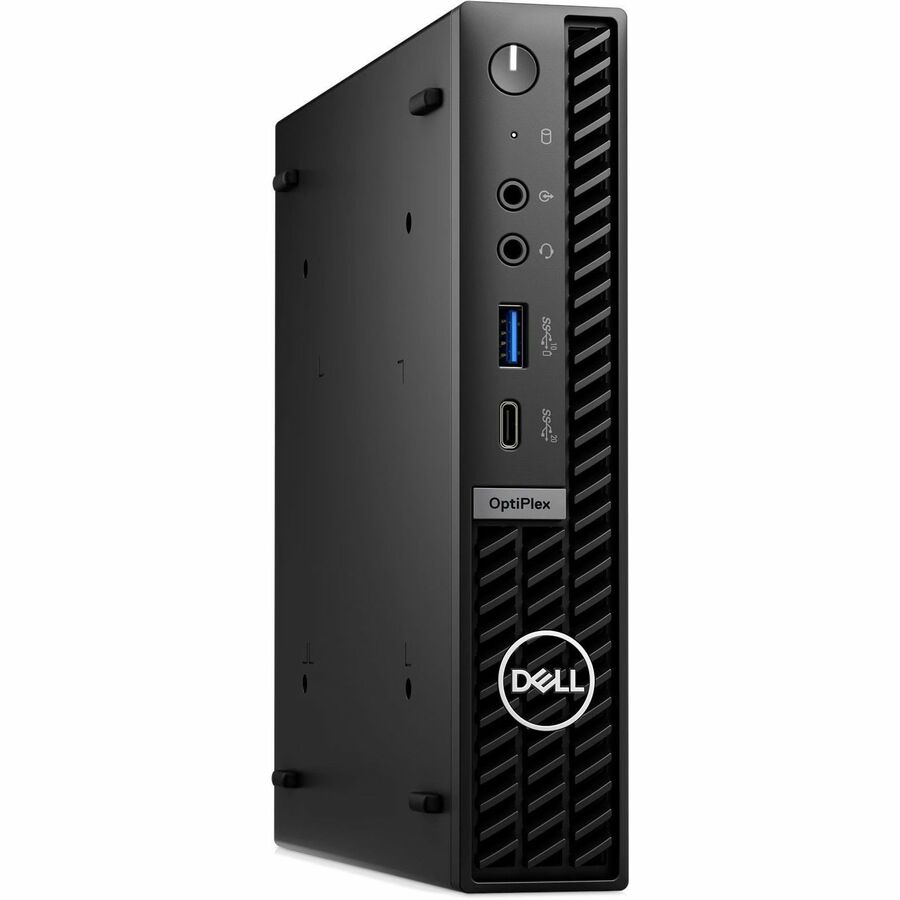

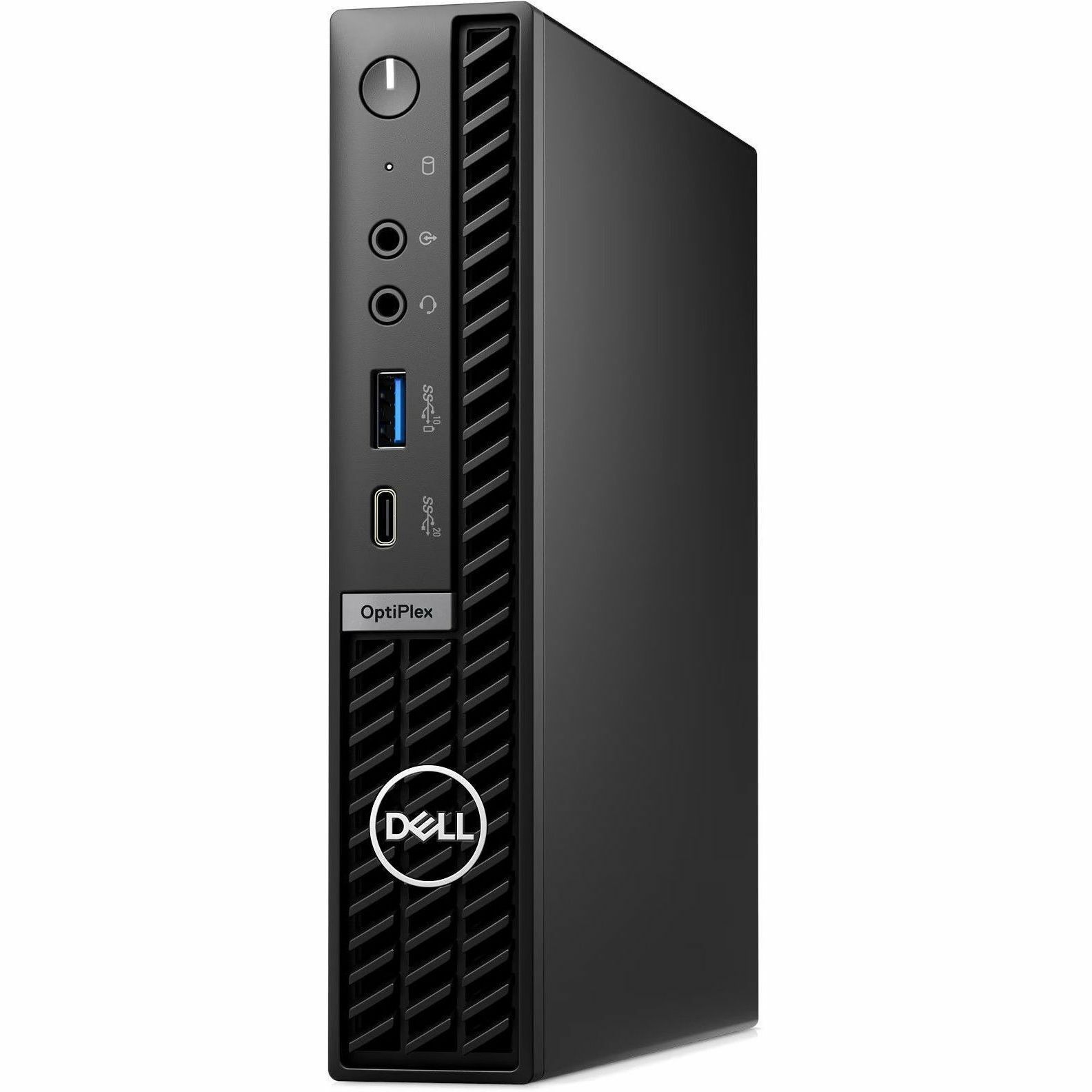

Dell P69DR Desktop PC Overview
With the most versatile mounting options from OptiPlex, the Micro Form Factor offers maximum productivity in an ultra-compact desktop. Flexible "All-in-One" solutions with the Micro All-in-One Stand and custom mounts keep your desk clutter-free without impacting performance. Features an Intel Core processor, three native DisplayPorts and two M.2 SSD slots, both of which support Gen 4 speeds.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i7
Processor Generation:
14th Gen
Processor Model:
i7-14700T
Processor Core:
Icosa-core (20 Core)
Processor Threads:
28
Processor Speed:
2.10 GHz
Maximum Turbo Speed:
5 GHz
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR5 SDRAM
Memory Configuration:
1 x 16GB
Total Number of Memory Slots:
2
Number of Occupied Memory Slots:
1
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
256 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
SSD Form Factor:
M.2
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
UHD Graphics 770
Graphics Memory Technology:
DDR5 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ax
Bluetooth:
Yes
Input Devices
Keyboard Localization:
English (US)
Interfaces/Ports
Number of HDMI Outputs (Rear):
1
Total Number of USB Ports:
5
Number of USB 3.2 Gen 1 Ports:
1
Number of USB 3.2 Gen 2 Ports:
3
Number of USB 3.2 Gen 2x2 Type-C Ports:
1
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
3
DisplayPort (Rear):
Yes
Optional Ports:
1 video port (HDMI 2.1/DisplayPort 1.4a/VGA/USB Type-C with DisplayPort Alt mode) (optional) 1 PS2/Serial port (optional)
Details regarding optional ports aggregated from the information available for this product's family/series
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Power Description
Maximum Power Supply Wattage:
180 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Micro PC
Height:
7.2"
Width:
1.4"
Depth:
7"
Weight (Approximate):
2.89 lb
Miscellaneous
Package Contents:
- OptiPlex Micro (Plus 7020)
- Power Cord
- Wireless Keyboard
- Wireless Mouse
- USB Receiver
- AC Adapter
- Safety/Environment and Regulatory Guide (English/French Multi-language)
- Quick Start Guide, OptiPlex Micro Plus 7020
- Shipping Material
Features:
Security Slot
Energy Star:
Yes
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116462477
UPC:
884116462477
EAN:
0884116462477
UNSPSC:
43211507
Frequently Asked Questions
What processor and memory does the Dell P69DR OptiPlex 7020 Plus come with?
The Dell P69DR features an Intel Core i7 14th Gen i7-14700T processor with vPro Technology, paired with 16 GB of DDR5 SDRAM. This combination delivers strong performance for business applications and multitasking in a compact micro PC form factor. Contact us today to configure this system for your specific needs.
Is the Dell P69DR suitable for warehouse and logistics operations?
Yes, the Dell P69DR OptiPlex 7020 Plus is well-suited for warehouse and logistics environments with its Intel Core i7 processor, 16 GB memory, and Windows 11 Pro operating system. The micro PC form factor makes it ideal for space-constrained areas, and vPro Technology enables remote management capabilities for IT teams. Visit barcodesinc.com to explore how this system integrates with your warehouse management software.
What storage options are available for the Dell P69DR?
The Dell P69DR comes standard with a 256 GB SSD, providing fast boot times and application loading. The solid-state drive configuration eliminates mechanical moving parts, making it more durable in warehouse environments with vibration and temperature fluctuations. We offer this system ready to ship with verified storage specifications.
What connectivity and networking features does the Dell P69DR include?
The Dell P69DR includes IEEE 802.11ax (Wi-Fi 6) wireless LAN for fast, reliable network connectivity. It also features standard wired network connectivity options, making it flexible for both wireless and hardwired deployments in logistics facilities. Contact us today for deployment recommendations based on your facility's network infrastructure.
Does the Dell P69DR support remote management for IT procurement teams?
Yes, the Dell P69DR includes Intel vPro Technology, which provides advanced remote management capabilities for IT teams to monitor, manage, and secure systems across your warehouse operation. This is particularly valuable for large deployments where centralized IT management is essential. We can help you configure vPro settings during deployment.
What operating system and graphics capabilities come with the Dell P69DR?
The Dell P69DR ships with Windows 11 Pro and features Intel UHD Graphics 770, providing reliable graphics performance for business applications and data visualization tools used in warehouse management. The professional-grade OS ensures security, compatibility with enterprise software, and long-term support. Available from us with full Windows 11 Pro licensing.
