Release Year:
2024
Dell NVY8C Workstation PC
Part Number:
NVY8C
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

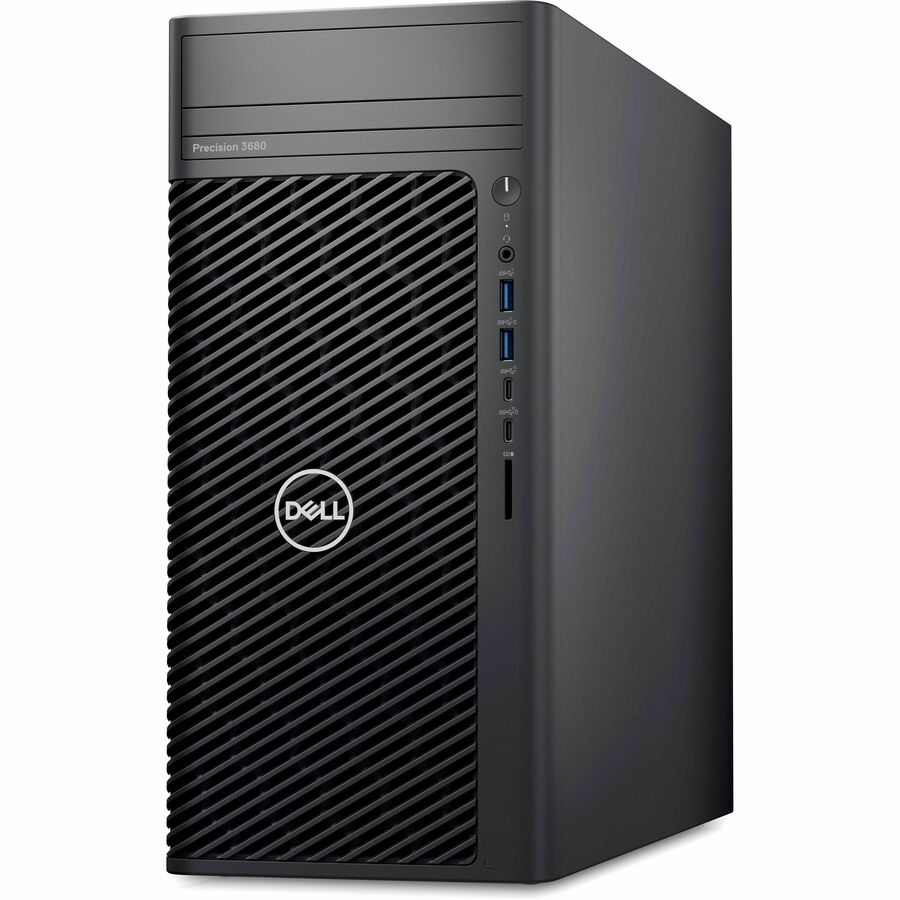

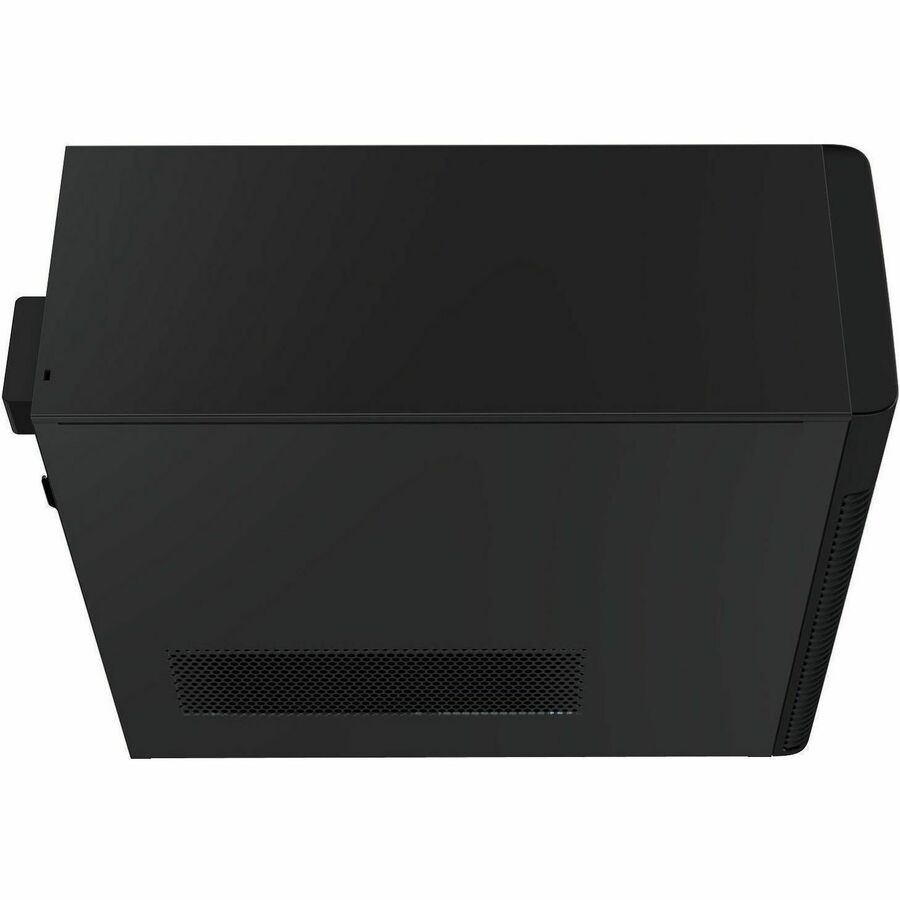

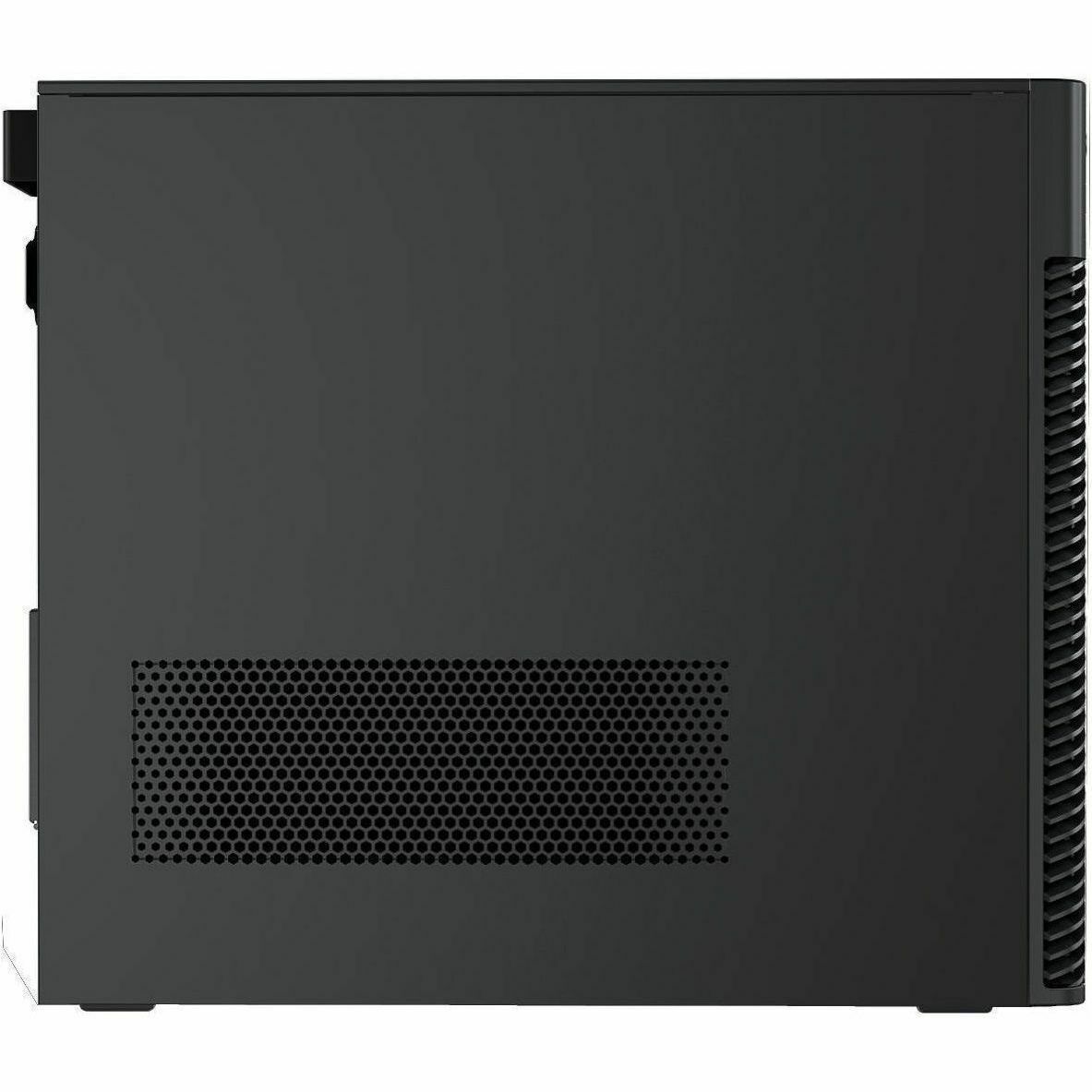

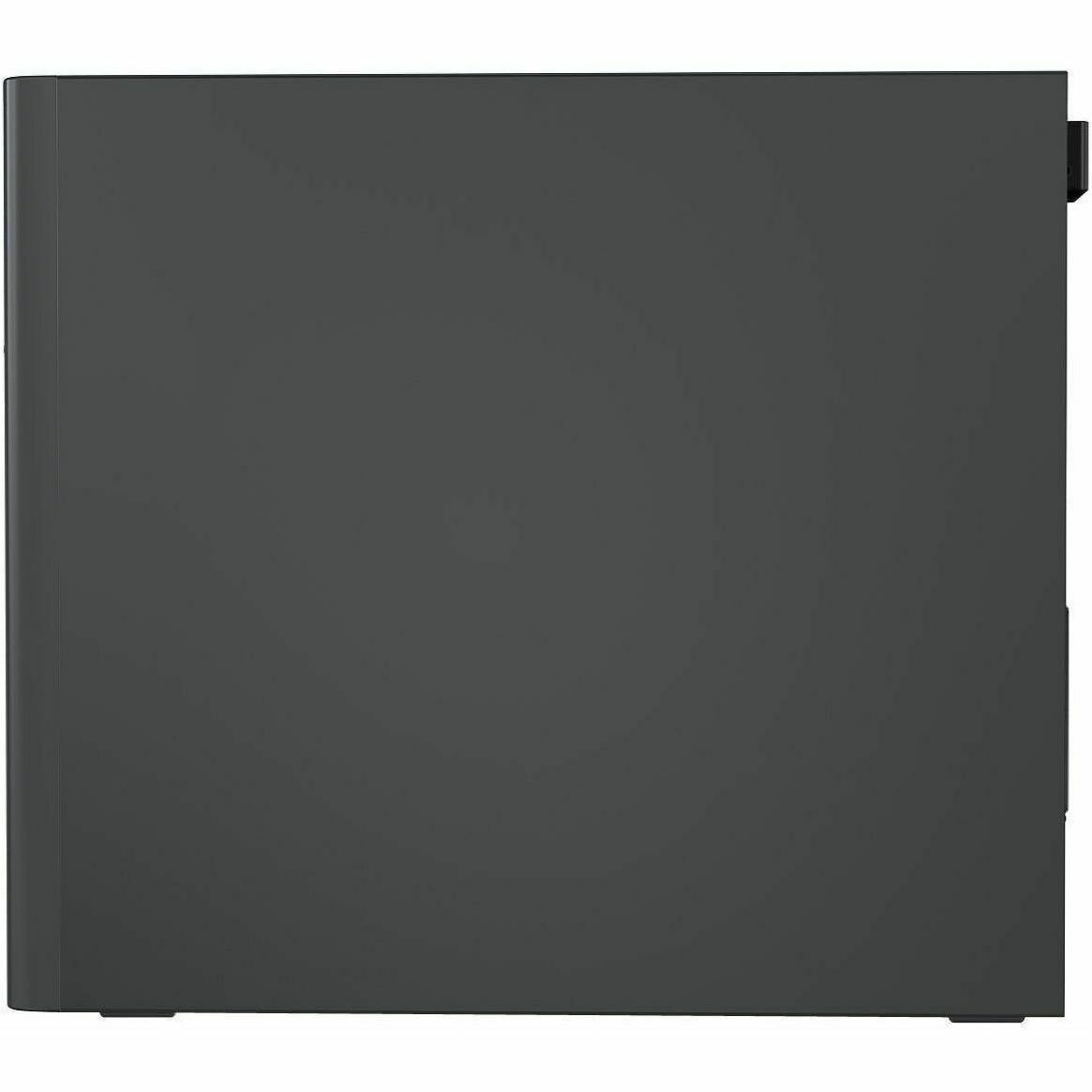

Dell NVY8C Workstation PC Overview
The Precision 3680 Tower is Dell's workstation for single-threaded tasks, featuring Intel Core processors with Unlimited Turbo Duration to tear through workloads with performance enhancements, graphics, and storage with 3x on-board M.2 SSDs and 3x SATA hard drives.
Technical Information
Processor
Processor Type:
Core i7
Processor Generation:
14th Gen
Processor Model:
i7-14700
Processor Core:
Icosa-core (20 Core)
Processor Threads:
28
Processor Speed:
2.10 GHz
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
128 GB
Memory Technology:
DDR5 SDRAM
Total Number of Memory Slots:
4
Error Checking:
Non-ECC
Memory Configuration:
2 x 8GB
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
PCI Express NVMe 4.0
Optical Drive Type:
DVD-Writer
Controllers
Controller Type:
- Serial ATA
- NVMe
Display & Graphics
VR Ready:
Yes
Graphics Memory Capacity:
4 GB
Graphics Memory Technology:
GDDR6
Graphics Memory Accessibility:
Dedicated
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
No
Bluetooth:
No

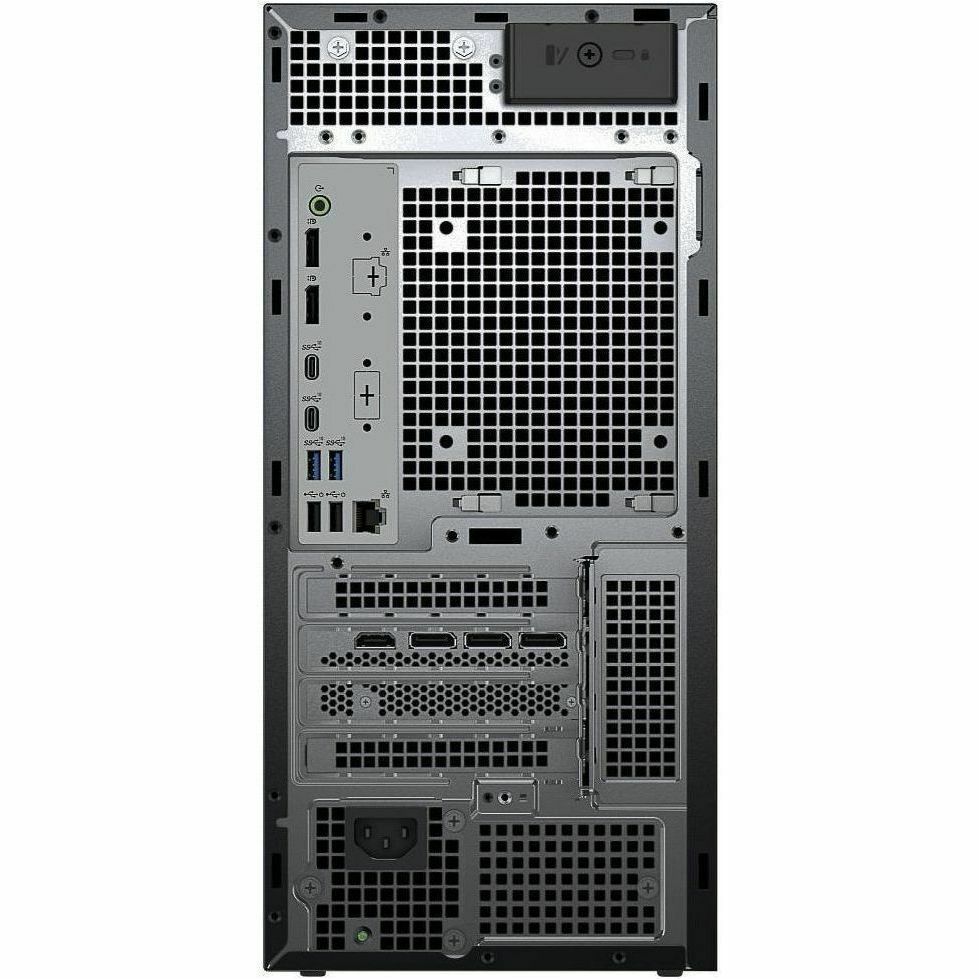

Interfaces/Ports
Total Number of USB Ports:
10
Number of USB 2.0 Ports:
2
Number of USB 3.2 Gen 1 Ports:
2
Number of USB 3.2 Gen 2 Ports:
2
USB Type-C:
Yes
USB Type-C Detail:
3 x USB 3.2 Gen 2 (10 Gbps) Type-C® port; 1 USB 3.2 Gen 2x2 (20 Gbps) Type-C® port with PowerShare
DisplayPort:
Yes
Number of HDMI Outputs:
0
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs:
4
Optional Ports:
1 Optional Port (VGA, HDMI 2.0, DP++ 1.4a HB3, USB 3.2 Gen 2 (10 Gbps) Type-C® with DP-Alt mode) 1 RJ45 (2.5 GbE) Ethernet port (optional)
Details regarding optional ports aggregated from the information available for this product's family/series
Input Devices
Keyboard Localization:
English (US)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/French/Spanish/Portuguese
Power Description
Maximum Power Supply Wattage:
500 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Cooler Type:
Air Cooler
Form Factor:
Tower
Height:
14.7"
Width:
6.8"
Depth:
16.5"
Weight (Approximate):
35.38 lb
Miscellaneous
Package Contents:
Precision 3680 Workstation Keyboard Mouse Safety/Environment and Regulatory Guide (English/French Multi-language) Quick Setup Guide, Precision 3680 System Power Cord C13 (US 125V, 15A)
Energy Star:
Yes
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116470632
UPC:
884116470632
EAN:
0884116470632
UNSPSC:
56112002
Frequently Asked Questions
What processor and memory does the Dell Precision 3680 include?
The Dell Precision 3680 features a 14th Generation Intel Core i7-14700 processor with vPro Technology, paired with 16 GB of memory and a 512 GB SSD for fast performance in demanding workstation applications. This configuration is ideal for professionals running resource-intensive software in engineering, design, and data analysis workflows.
Is the Dell NVY8C compatible with Windows 11 Pro?
Yes, the Dell Precision 3680 (NVY8C) comes pre-installed with Windows 11 Pro, ensuring compatibility with enterprise software and providing advanced security features like TPM support. This operating system is optimized for professional workloads and includes vPro management capabilities.
What graphics capabilities does this Dell workstation offer?
The Dell Precision 3680 includes 4 GB of dedicated graphics memory to handle CAD, 3D modeling, and video editing tasks. The integrated graphics combined with the dedicated VRAM provides excellent performance for professional visualization applications used in warehouse automation, logistics planning, and inventory management software.
What connectivity options are available on the Dell Precision 3680?
The workstation features Gigabit Ethernet connectivity for reliable network integration in enterprise environments. Additional connectivity options typically include USB ports, HDMI output, and audio jacks, making it suitable for multi-monitor setups and peripheral integration in logistics and warehouse management centers.
Can the Dell Precision 3680 be upgraded with additional storage?
Yes, the Dell Precision 3680 includes both Serial ATA and NVMe controller support, allowing for storage expansion and upgrades beyond the standard 512 GB SSD. This flexibility enables IT teams to customize the system based on specific data storage requirements for large inventory databases and logistics applications.
What security features does the Dell NVY8C workstation include?
The Dell Precision 3680 includes TPM (Trusted Platform Module) security and Intel vPro Technology for advanced system management and protection. These enterprise-grade security features help protect sensitive logistics data and ensure compliance with warehouse management system requirements.
