Dell NTDM9 Workstation PC
Part Number:
NTDM9
Model:
Parts
Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview
Products and parts from Dell.

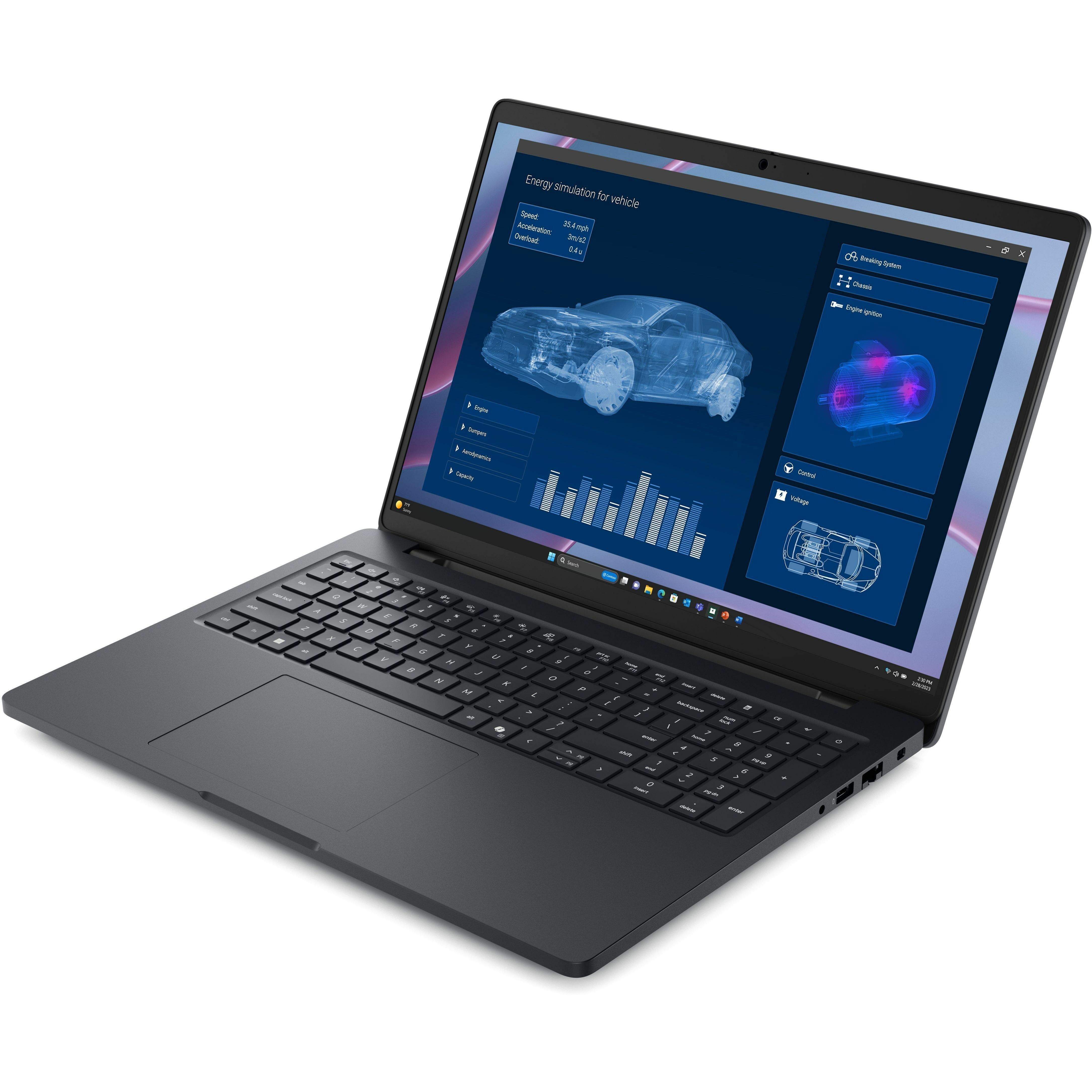

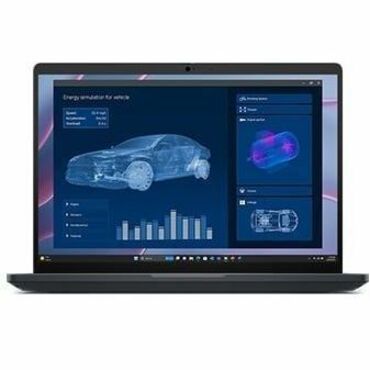

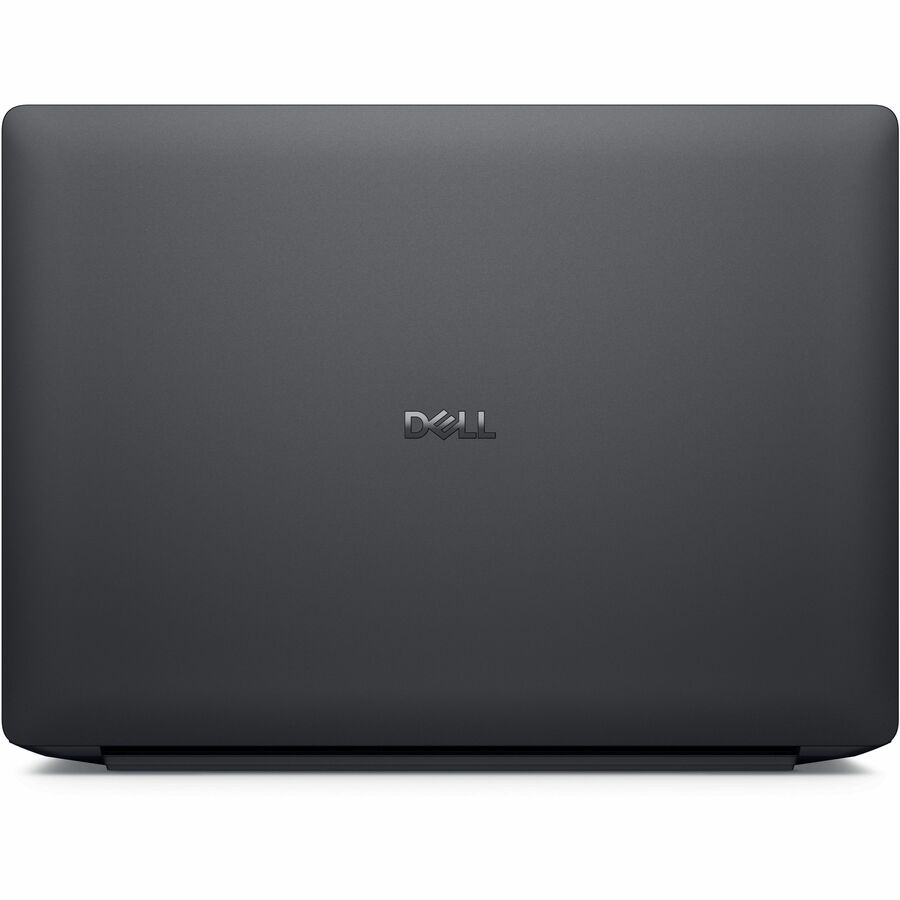

Dell NTDM9 Workstation PC Overview
Thin, powerful, and built for portability
The Dell Pro Max 16 combines performance and portability to deliver exceptional value. Powered by AMD Ryzen processors, it offers outstanding battery life and seamless on-device AI experiences.
Technical Information
Processor
Processor Manufacturer:
AMD
Processor Type:
Ryzen AI 7 PRO
Processor Model:
350
Processor Core:
Octa-core (8 Core)
Processor Threads:
16
Maximum Turbo Speed:
5 GHz
Total AI Performance:
66 TOPS
NPU Manufacturer:
AMD
NPU Name:
Ryzen AI
NPU Performance:
50 TOPS
Chipset
Chipset Manufacturer:
AMD
Memory
Standard Memory:
32 GB
System Memory Form Factor:
On-board
On-board Memory:
32 GB
On-board Memory Technology:
LPDDR5X
On-board Memory Configuration:
1 x 32GB
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
SSD Form Factor:
M.2
Display & Graphics
Screen Size:
16"
Display Screen Type:
LCD
Screen Mode:
Full HD Plus
Brightness:
300 Nit
Color Gamut:
45% NTSC
Touchscreen:
No
Graphics Controller Manufacturer:
NVIDIA
Graphics Controller Model:
RTX PRO 1000
Graphics Memory Capacity:
8 GB
Graphics Memory Technology:
GDDR7
Graphics Memory Accessibility:
Dedicated
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11be
Wi-Fi Generation:
Wi-Fi 7
Ethernet Technology:
Gigabit Ethernet
Bluetooth:
Yes
Built-in Devices
Camera Privacy Shutter:
Yes
Front Camera/Webcam:
Yes
Finger Print Reader:
Yes
Speaker Power Details:
2 x 2W
Sound Mode:
Stereo

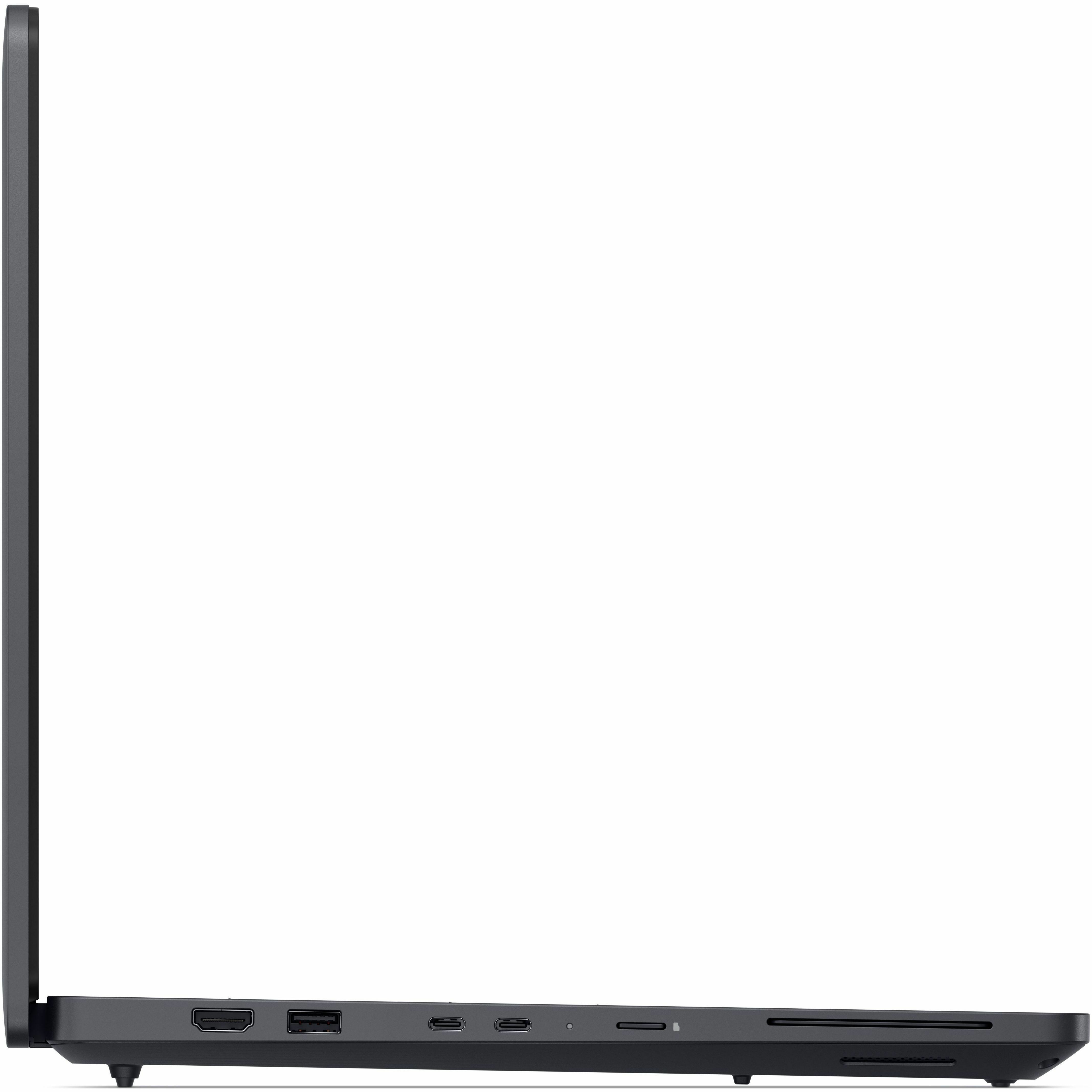

Interfaces/Ports
HDMI:
Yes
Total Number of USB Ports:
2
Number of USB 3.2 Gen 1 Type-A Ports:
2
Number Of Ethernet Ports:
1
Network (RJ-45):
Yes
Number of Thunderbolt 4 Ports:
2
Optional Ports:
Details regarding optional ports aggregated from the information available for this product's family/series.
- 1 Smart-card reader slot (optional)
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/Spanish/French/Brazilian Portuguese
Input Devices
Keyboard Backlight:
Yes
Keyboard Localization:
English (US)
Copilot Key:
Yes
Battery Information
Number of Cells:
6-cell
Power Description
Power Plug Type:
Type C
Included Charger Power:
130 W
USB Power Delivery Support:
Yes
Physical Characteristics
Color Family:
Other
Product Color:
Magnetite
Height:
1.01"
Width:
14.1"
Depth:
10.1"
Weight (Approximate):
4.59 lb
Miscellaneous
Package Contents:
- Pro Max 16 MC16255
- Lithium Polymer Battery
- AC Adapter
- Power Cord
- Documentation
- Quick Setup Guide
Charger Included:
Yes
Features:
- Anti-glare Screen
- ExpressCharge
Energy Star:
Yes
Country of Origin:
Vietnam
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
- Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
Item Numbers
GTIN:
0884116672036
UPC:
884116672036
EAN:
0884116672036
UNSPSC:
43211503
Frequently Asked Questions
What are the key specifications of the Dell NTDM9 Workstation PC?
The Dell NTDM9 is a mobile workstation featuring an AMD Ryzen AI 7 PRO 350 processor, 32 GB of memory, and a 512 GB SSD for fast performance. It includes an NVIDIA RTX PRO 1000 Blackwell GPU with 8 GB of dedicated graphics memory, making it suitable for demanding professional applications in design, engineering, and content creation. The system runs Windows 11 Pro and features a 16-inch Full HD Plus display with Wi-Fi 7 connectivity.
Is the Dell NTDM9 suitable for warehouse and logistics operations?
While the Dell NTDM9 is primarily designed as a professional mobile workstation for graphics-intensive tasks, its robust specifications and portability make it capable of supporting enterprise logistics software and inventory management systems. However, for dedicated warehouse scanning and mobile data capture, you may want to explore our specialized mobile computers and RFID solutions. Contact us today to discuss the best device for your specific warehouse requirements.
What connectivity options does the Dell NTDM9 provide?
The Dell NTDM9 features Wi-Fi 7 (IEEE 802.11be) wireless connectivity for high-speed data transmission and includes a front-facing camera/webcam for video conferencing and communication. The workstation also supports multiple connectivity options through its various ports and expansion capabilities, enabling seamless integration with enterprise networks and peripherals. Visit barcodesinc.com to explore compatible docking stations and connectivity accessories available from us.
What security features does the Dell NTDM9 include?
The Dell NTDM9 incorporates enterprise-grade security features including TPM (Trusted Platform Module) for hardware-based encryption and secure boot capabilities. It supports optional fingerprint readers and smart card authentication for multi-factor access control, making it suitable for organizations handling sensitive data in logistics and supply chain operations. These security features help protect intellectual property and confidential business information on mobile devices.
What is the battery life and power capacity of the Dell NTDM9?
The Dell NTDM9 supports multiple battery configurations including 6-cell (60Wh) and 9-cell (97Wh) Lithium Ion batteries with ExpressCharge technology for rapid charging. The specific battery life depends on your usage patterns and selected battery option, with larger capacity batteries providing extended runtime for field operations. Contact us today for detailed power specifications and battery upgrade options.
Can the Dell NTDM9 be expanded with additional storage and memory?
Yes, the Dell NTDM9 features expandable memory with DDR3 SDRAM support and multiple storage options including SSD and HDD configurations up to 750GB capacity. The workstation includes an E-Module Bay II for secondary storage expansion and supports optional encrypted SSD options for organizations requiring FIPS compliance and full-disk encryption. We offer compatible memory modules and storage upgrades from us to maximize your system's performance and capacity.
