Release Year:
2023
Dell NG0X4 Laptop
Part Number:
NG0X4
Model:
Parts
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i5
Processor Generation:
13th Gen
Processor Model:
i5-1345U
Processor Core:
Deca-core (10 Core)
Maximum Turbo Speed:
4.70 GHz
Cache:
12 MB
vPro Technology:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Total Installed System Memory:
16 GB
Maximum Supported System Memory:
64 GB
System Memory Technology:
DDR4 SDRAM
System Memory Speed:
3200 MHz
Installed Slot Memory Configuration:
2 x 8GB
Number of Occupied Memory Slots:
2
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
256 GB
Solid State Drive Interface:
PCI Express
SSD Form Factor:
M.2
Display & Graphics
Screen Size:
15.6"
Display Screen Technology:
In-plane Switching (IPS) Technology
Screen Mode:
Full HD
Screen Resolution:
1920 x 1080
Touchscreen:
Yes
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
Iris Xe Graphics
Graphics Memory Technology:
DDR4 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ax
Ethernet Technology:
Ethernet
Bluetooth:
Yes
WWAN Supported:
No
Built-in Devices
Front Camera/Webcam:
Yes
Infrared Camera:
Yes
Finger Print Reader:
Yes

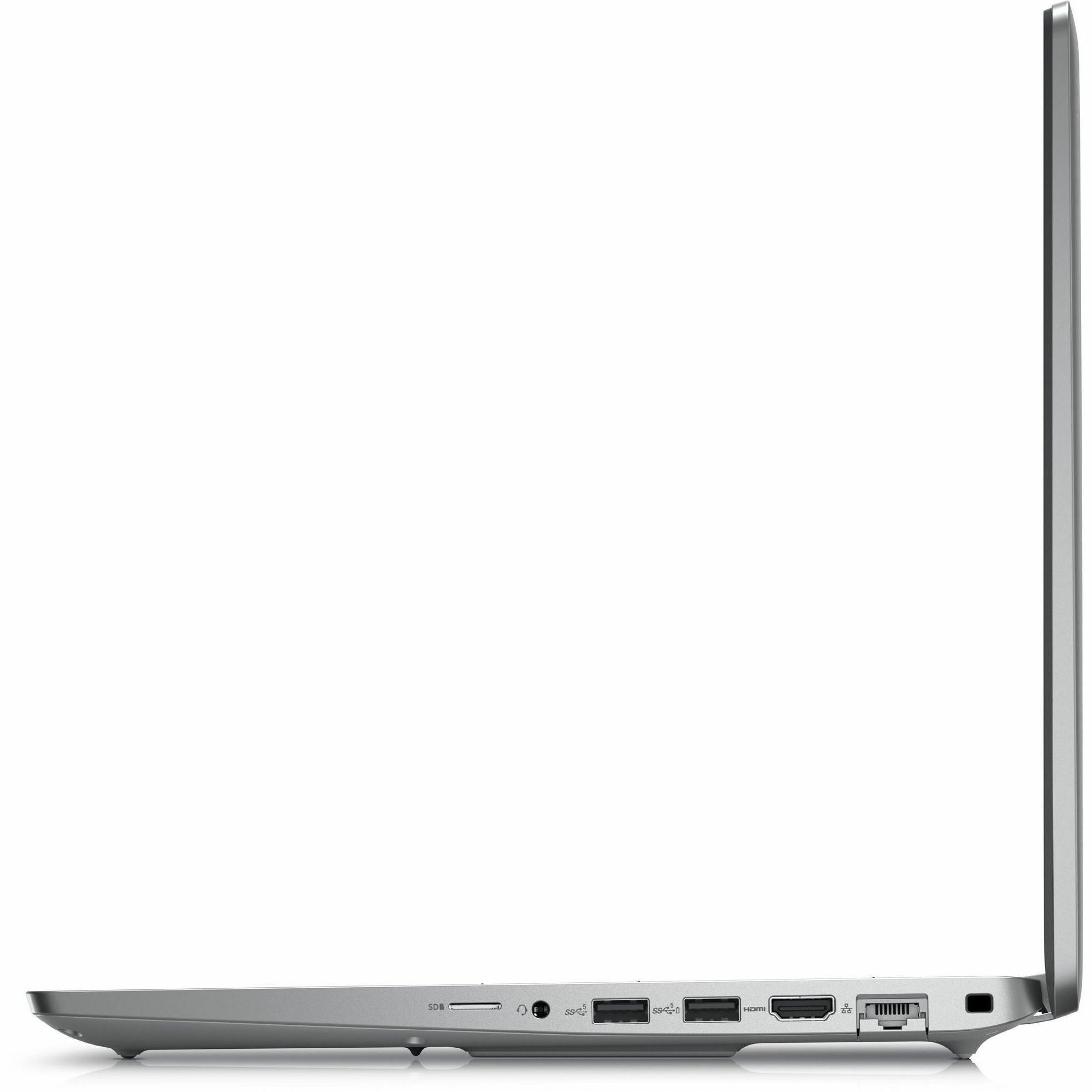

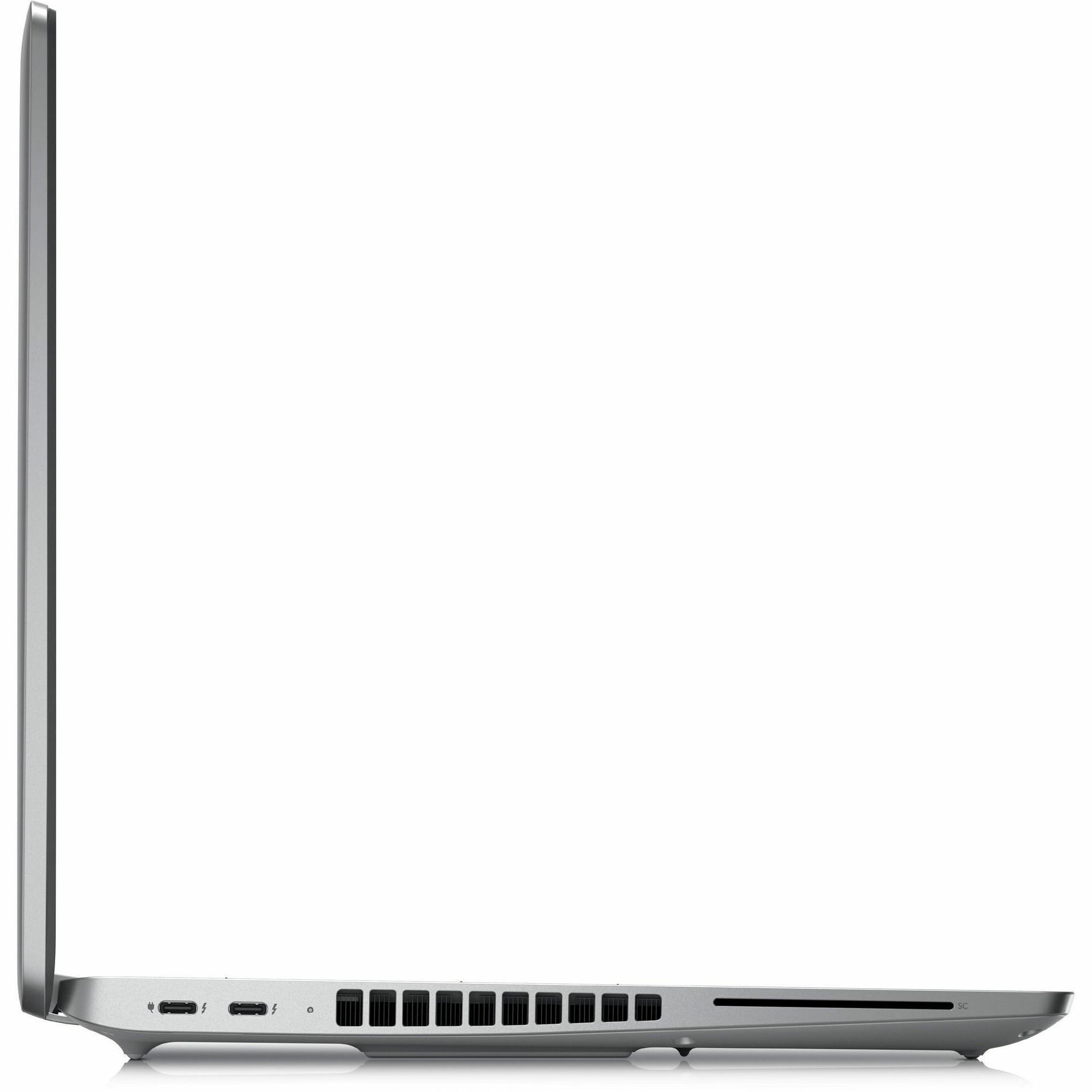

Interfaces/Ports
HDMI:
Yes
Number of HDMI Outputs:
1
Total Number of USB Ports:
2
Number of USB 3.2 Gen 1 Ports:
2
Number Of Ethernet Ports:
1
Network (RJ-45):
Yes
Number of Thunderbolt 4 Ports:
2
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English/French/Spanish/Portuguese
Input Devices
Keyboard Backlight:
Yes
Keyboard Localization:
English (US)
Battery Information
Number of Cells:
3-cell
Battery Energy:
54 Wh
Power Description
Maximum Power Supply Wattage:
65 W
Power Plug Type:
Type C
Physical Characteristics
Product Color:
Titan Gray
Height:
0.90"
Width:
14.1"
Depth:
9.2"
Weight (Approximate):
3.55 lb
Miscellaneous
Package Contents:
Latitude 5540 Notebook Latitude 5540 Quick Start Guide Safety/Environment and Regulatory Guide (English/French Multi-language) E4 Power Cord 1M for US Standard Battery 65W AC Adapter
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- Electronic Product Environmental Assessment Tool (EPEAT)
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:
1Y Basic Onsite Service with Hardware Support-Disti SnS
Item Numbers
UNSPSC:
43211503
Frequently Asked Questions
What are the display specifications of the Dell NG0X4 Latitude 5540?
The Dell NG0X4 features a 15.6" Full HD touchscreen display with 1920 x 1080 resolution and IPS (In-plane Switching) technology for superior color accuracy and wide viewing angles. The touchscreen design makes it ideal for warehouse and logistics professionals who need responsive interaction in fast-paced environments. We offer this model with the touchscreen capability standard, making it perfect for mobile data collection and field operations.
Is the Dell NG0X4 suitable for warehouse management systems?
Yes, the Dell NG0X4 Latitude 5540 is well-suited for warehouse and logistics operations with its Intel Core i5-1345U processor, 16GB RAM, and 256GB SSD providing reliable performance for WMS software and real-time inventory tracking. The 15.6" touchscreen display and built-in webcam enable efficient barcode scanning integration and video conferencing for distributed teams. Contact us today to discuss how we can configure this laptop with barcode scanning peripherals and mobile computing solutions for your warehouse operations.
What processor and memory does the Dell NG0X4 include?
The Dell NG0X4 is equipped with an Intel Core i5-1345U Deca-core (10 Core) 13th Generation processor paired with 16GB of total RAM, delivering strong multitasking performance for demanding warehouse and logistics applications. The 256GB SSD storage ensures fast boot times and application responsiveness even under heavy workloads. This configuration is available from us and provides excellent value for enterprise-level mobile computing needs.
Does the Dell NG0X4 support wireless connectivity?
Yes, the Dell NG0X4 includes Wi-Fi and Wireless LAN standard connectivity, enabling seamless integration with warehouse networks and mobile data collection systems. The wireless capabilities support real-time synchronization with your inventory management and AIDC systems without requiring wired connections. We offer this model pre-configured for enterprise wireless environments and can assist with network integration planning.
What operating system comes with the Dell NG0X4?
The Dell NG0X4 Latitude 5540 ships with Windows 11 Pro, providing enterprise-grade security, reliability, and compatibility with professional warehouse management and logistics software. Windows 11 Pro includes advanced features like BitLocker encryption and domain management capabilities essential for secure data handling in supply chain operations. Visit barcodesinc.com to explore deployment options and volume licensing for your organization.
Can the Dell NG0X4 be integrated with barcode scanning equipment?
Absolutely—the Dell NG0X4's USB connectivity, powerful processor, and Windows 11 Pro operating system make it fully compatible with professional barcode scanners and RFID readers available from us. The touchscreen interface and robust hardware support real-time scanning applications for receiving, picking, and shipping operations in warehouse environments. Contact us today to discuss complete mobile computing solutions that integrate laptops, scanners, and label printers for your AIDC needs.
