Dell MW8C1 Server

Part Number: MW8C1
Model: Parts
$14,050.49
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Number of Processors Installed
2
Processor Manufacturer
Intel
Processor Type
Xeon Silver

Product Description:

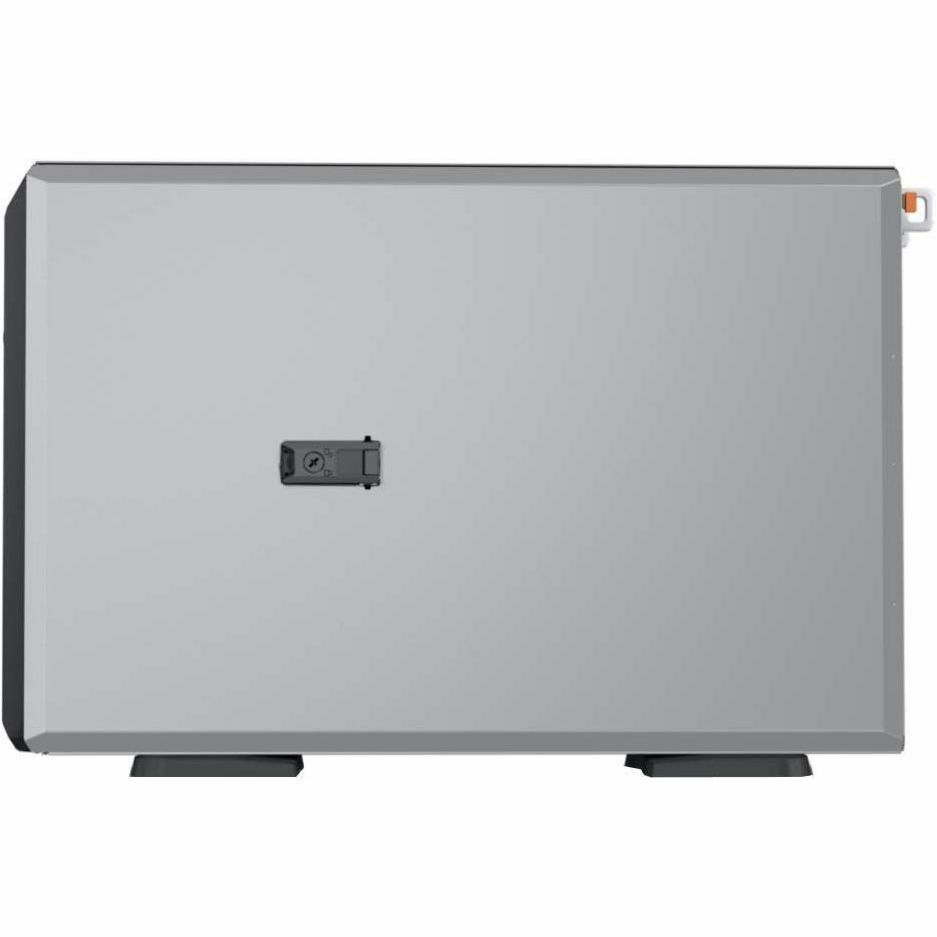

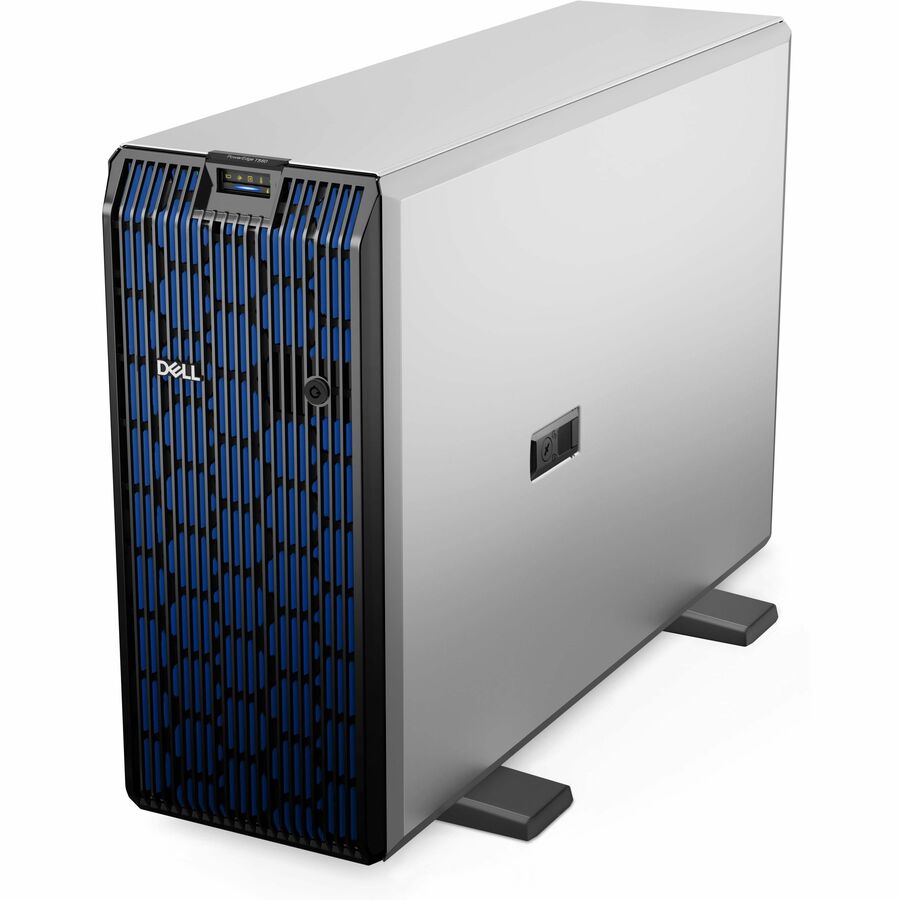

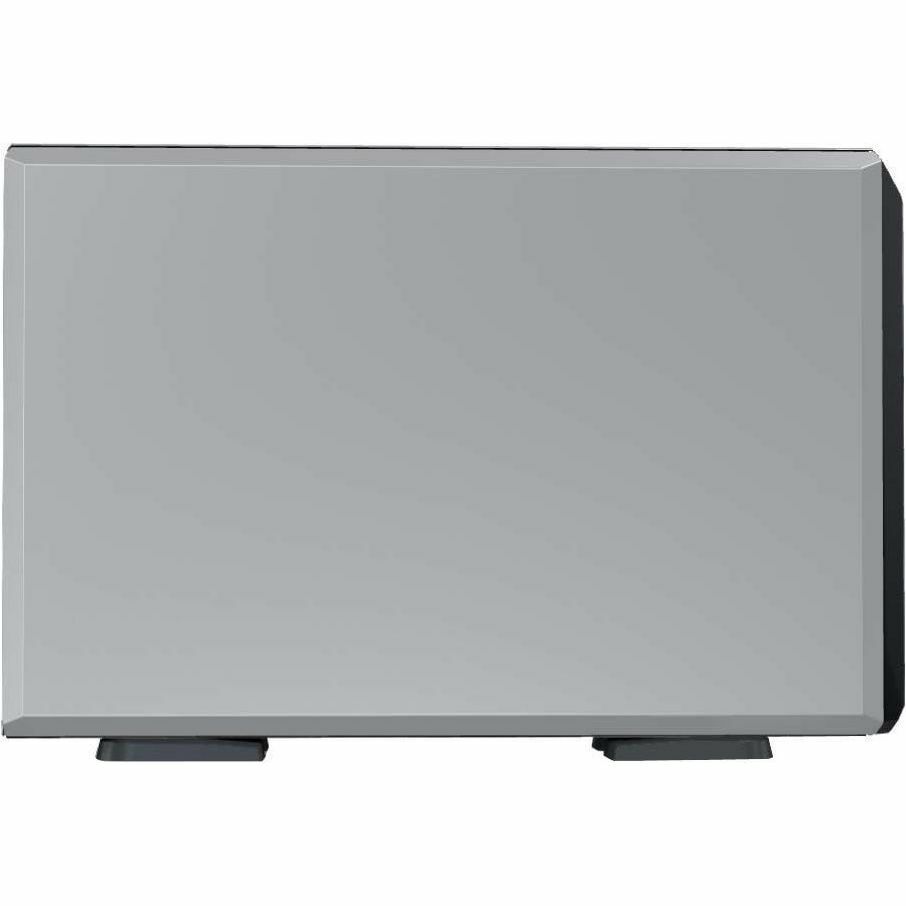

  Dell PowerEdge T560 4.5U Tower Server - 2 x Intel Xeon Silver 4410Y 2 GHz - 16 GB RAM - 480 GB SSD - Intel Chip - 2 Processor Support - 1 TB RAM Support - DDR5 SDRAM - Gigabit Ethernet - 8 x Total Bay(s) - 8 x LFF Bay(s) - Hot Swappable Bays - 2 x 800 W - Redundant Power Supply

Dell Misc Parts ACCESSORIES & MISC. ITEMS Model Overview

Products and parts from Dell.
Processor
Number of Processors Supported:
2
Number of Processors Installed:
2
Processor Manufacturer:
Intel
Processor Type:
Xeon Silver
Processor Model:
4410Y
Processor Core:
Dodeca-core (12 Core)
Processor Speed:
2 GHz
Cache:
30 MB
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
1 TB
Memory Technology:
DDR5 SDRAM
Error Checking:
ECC
Number of Occupied Memory Slots:
1
Signal Processing:
Registered (Buffered)
Storage
Total Solid State Drive Capacity:
480 GB
Solid State Drive Interface:
Serial ATA/600
Controllers
Controller Model:
Front PERC H355 Front Load
I/O Expansions
Number of Total Expansion Bays:
8
Number of 3.5" Bays:
8
Number of LFF Bays:
8
Hot Swappable Bays:
Yes
Total Number of Expansion Slots:
6
Riser Card:
Riser Config1, 1CPU + 1 GPU Riser (Support x16 NVIDIA)
Network & Communication
Ethernet Technology:
Gigabit Ethernet

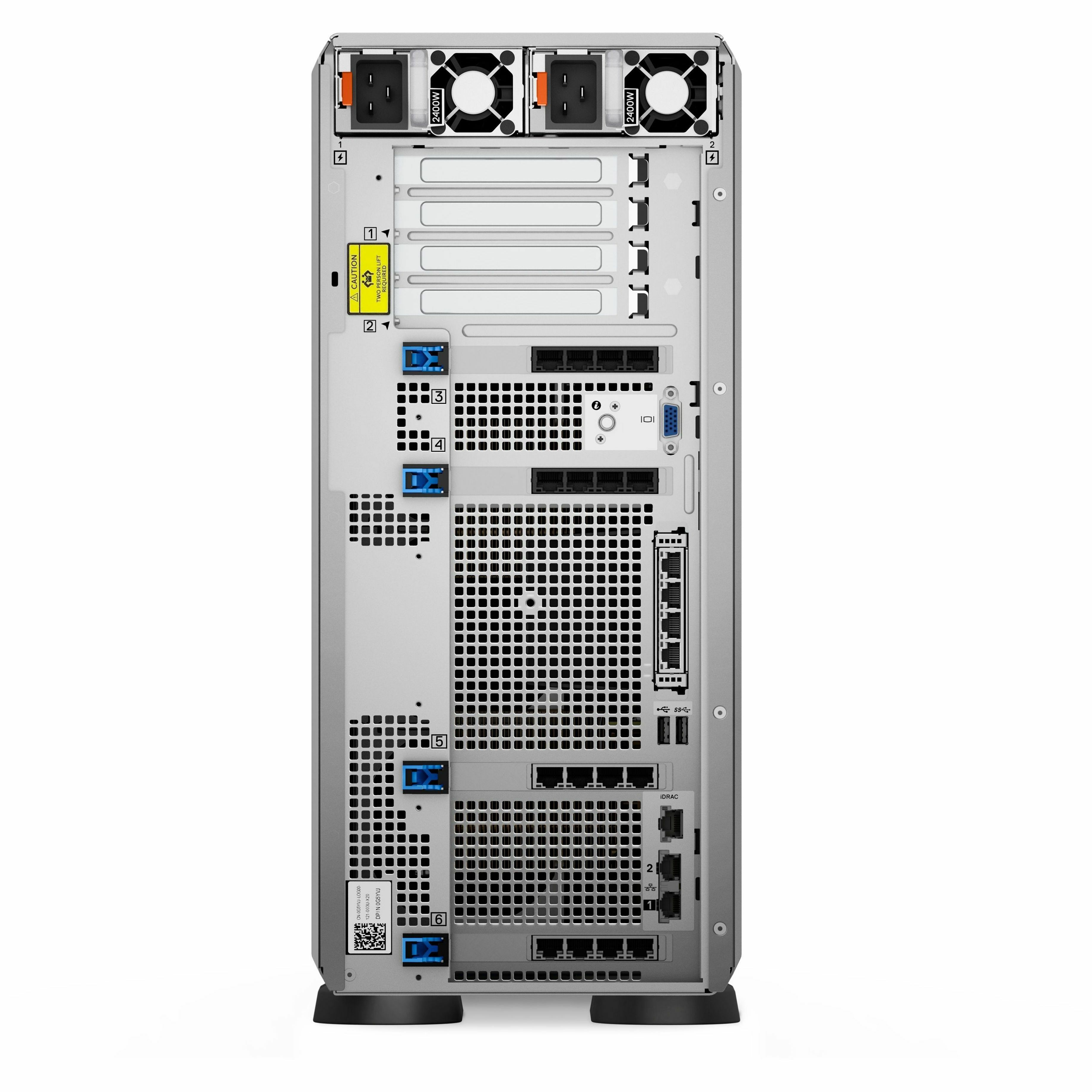

Interfaces/Ports
Total Number of USB Ports:
4
Number of USB 2.0 Ports:
2
Number of USB 3.0 Ports:
2
Network (RJ-45):
Yes
VGA:
Yes
Number of VGA Ports:
1
Remote Management:
Yes
Operating System
Operating System Supported:
  • Ubuntu Server
  • Windows Server
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • Hyper-V
Power Description
Number of Power Supplies Installed:
2
Plug/Connector Type:
NEMA 5-15P to C13
Maximum Power Supply Wattage:
800 W
Redundant Power Supply:
Yes
Hot Swappable Power Supply:
Yes
Power Source:
Power Supply
Physical Characteristics
Form Factor:
Tower
Rack Height:
4.5U
Width:
7.9"
Depth:
26.7"
Miscellaneous
Package Contents:
  • PowerEdge T560 Server
  • PowerEdge T560 Shipping Material
  • 2X NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America
Item Numbers
GTIN: 0884116461609
UPC: 884116461609
EAN: 0884116461609
UNSPSC: 43211501

Frequently Asked Questions

The Dell PowerEdge T560 is equipped with 2 x Intel Xeon Silver 4410Y processors running at 2 GHz, providing dual-processor support for demanding enterprise workloads. This configuration delivers robust performance for virtualization, database management, and high-throughput computing applications. We offer this server with full technical support and warranty coverage available from us.

The Dell MW8C1 supports up to 1 TB of DDR5 SDRAM, providing exceptional memory bandwidth for data-intensive operations. The server comes standard with 16 GB of RAM, which can be expanded significantly to meet growing enterprise requirements. Contact us today for memory upgrade options and compatibility guidance.

The Dell MW8C1 includes 480 GB of SSD storage as standard, with 8 total drive bays (8 x LFF bays) supporting hot-swappable configurations for maximum uptime. This flexible storage architecture allows you to expand capacity or implement RAID configurations based on your data protection requirements. Visit barcodesinc.com to explore storage expansion options available from us.

The server features dual redundant 800 W power supplies, ensuring continuous operation even during power supply failure or maintenance. This redundant power architecture is critical for mission-critical applications requiring high availability and minimal downtime. We offer this enterprise-grade reliability as part of our comprehensive server solutions.

The Dell MW8C1 includes Gigabit Ethernet connectivity for reliable network communication in enterprise environments. This provides sufficient bandwidth for standard data center operations while maintaining compatibility with modern network infrastructure. Contact us today if you need guidance on network configuration or additional connectivity options.

Yes, the Dell PowerEdge T560 is purpose-built for virtualization, cloud computing, and data center deployments with its dual Xeon processors, expandable DDR5 memory up to 1 TB, and hot-swappable storage bays. The 4.5U tower form factor and redundant power supplies make it ideal for enterprise environments requiring high availability and scalability. We offer this server with comprehensive technical support and enterprise-grade service options available from us.
